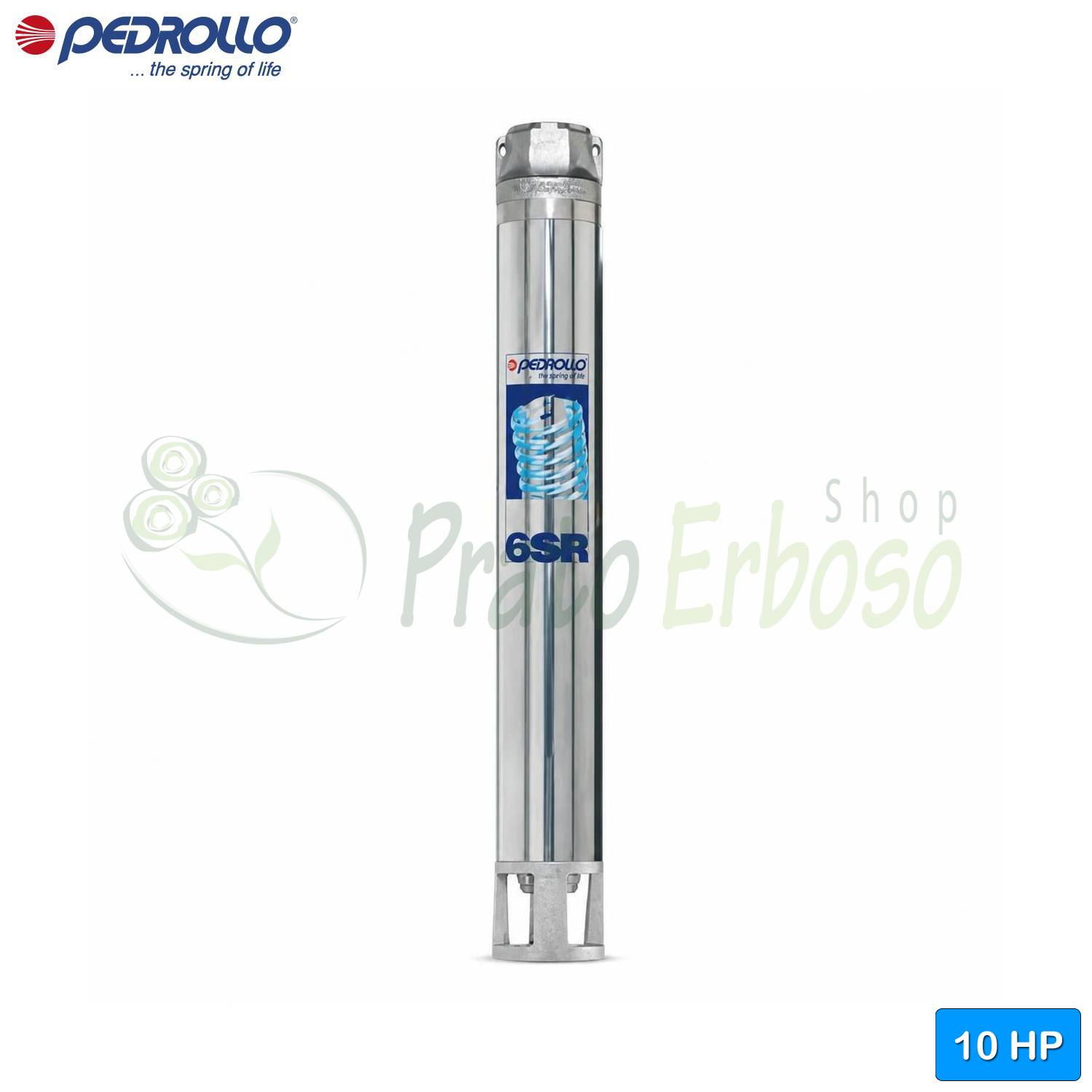

6SR12/15 - HYD - 330 litre submersible pump

Pedrollo
6SR12/15 - HYD
49I6A1215A1

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 330 l/min (19.8 m³/h). Head up to 208 metres.

Make an Offer

Your proposed offer

Proposed unit price
—
Quantity
—
Proposed product total
—

Product amounts only, excluding shipping. Final conditions are checked when you send the offer.

Close
  • Telephone support for information before purchasing.
  • Reinforced packaging to reduce transport damage.
  • After-sales assistance for product installation.
  • Original replacement
Description

The 6SR 12/15 HYD pump by Pedrollo consists of only the impeller part, without the motor.

The 6SR 12/15 HYD can be mounted on any 10 HP engine.

Recommended for pumping clean water with sand content not exceeding 100 grams per cubic meter.

The PEDROLLO 6SR12/15 has a flow rate that varies from 50 to 330 litres per minute with a head from 60 to 208 metres.

Due to its high performance and reliability, it is suitable for use in the civil, industrial and agricultural fields, for the distribution of water in conjunction with pressure tanks, for irrigation, for washing systems, for pressure raising or for fire-fighting systems.

Original spare part for 6SR12/15.

Data sheet
Pedrollo
6SR12/15 - HYD
49I6A1215A1
Power (HP)
10
Pump body
Cast iron
Impeller
Noryl
Number of impellers
15
Pump shaft
AISI 304 stainless steel
Minimum flow rate (l./min.)
50
Max. flow rate (l./min.)
330
Min. head (m.)
60
Max. head (m.)
208
Delivery mouth
3"
Height (cm)
106.8
External diameter (cm)
14.95
Warranty (years)
2
Attachments

6SR data sheet

Performance, working curves and limits of use of the 6-inch submersible electric pumps of the 6SR series by Pedrollo.

file_download Download (3.88MB)

Data sheet

Engine and mechanical performance

Power (HP)
10

Pump components and construction

Pump body
Cast iron
Impeller
Noryl
Number of impellers
15
Pump shaft
AISI 304 stainless steel

Hydraulic performance and filtration

Minimum flow rate (l./min.)
50
Max. flow rate (l./min.)
330
Min. head (m.)
60
Max. head (m.)
208

Installation and connections

Delivery mouth
3"

Dimensions and weight

Height (cm)
106.8
External diameter (cm)
14.95

Packaging, maintenance, and warranty

Warranty (years)
2

Buy it with

  • 6SR12/15 - HYD - 330 litre submersible pump
  • +
  • 6PD/10 - 6" 10 HP three-phase rewindable motor
  • +
  • EASYPRESS-BLU - Electronic pressure regulator
  • €1,635.90-10 %
    Total price: €1,472.31

Related Products

Compare with Similar Products

6SR12/15 - HYD - 330 litre submersible pump

6SR12/15 - HYD - 330 litre submersible pump

This product

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 330 l/min (19.8 m³/h). Head up to 208 metres.

6SR12/11 - HYD - 330 litre submersible pump

6SR12/11 - HYD - 330 litre submersible pump

Quick View

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 330 l/min (19.8 m³/h). Head up to 153 metres.

6SR12/18 - HYD - 330 litre submersible pump

6SR12/18 - HYD - 330 litre submersible pump

Quick View

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 330 l/min (19.8 m³/h). Head up to 250 meters.

6SR12/21 - HYD - 330 litre submersible pump

6SR12/21 - HYD - 330 litre submersible pump

Quick View

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 330 l/min (19.8 m³/h). Head up to 292 metres.

Power (HP) Power (HP) 10 Power (HP) 7.5 Power (HP) 12.5 Power (HP) 15
Pump body Pump body Cast iron Pump body Cast iron Pump body Cast iron Pump body Cast iron
Impeller Impeller Noryl Impeller Noryl Impeller Noryl Impeller Noryl
Number of impellers Number of impellers 15 Number of impellers 11 Number of impellers 18 Number of impellers 21
Pump shaft Pump shaft AISI 304 stainless steel Pump shaft AISI 304 stainless steel Pump shaft AISI 304 stainless steel Pump shaft AISI 304 stainless steel
Minimum flow rate (l./min.) Minimum flow rate (l./min.) 50 Minimum flow rate (l./min.) 50 Minimum flow rate (l./min.) 50 Minimum flow rate (l./min.) 50
Max. flow rate (l./min.) Max. flow rate (l./min.) 330 Max. flow rate (l./min.) 330 Max. flow rate (l./min.) 330 Max. flow rate (l./min.) 330
Min. head (m.) Min. head (m.) 60 Min. head (m.) 44 Min. head (m.) 72 Min. head (m.) 84
Max. head (m.) Max. head (m.) 208 Max. head (m.) 153 Max. head (m.) 250 Max. head (m.) 292
Delivery mouth Delivery mouth 3" Delivery mouth 3" Delivery mouth 3" Delivery mouth 3"
Height (cm) Height (cm) 106.8 Height (cm) 84.9 Height (cm) 119.8 Height (cm) 132.8
External diameter (cm) External diameter (cm) 14.95 External diameter (cm) 14.95 External diameter (cm) 14.95 External diameter (cm) 14.95
Warranty (years) Warranty (years) 2 Warranty (years) 2 Warranty (years) 2 Warranty (years) 2
