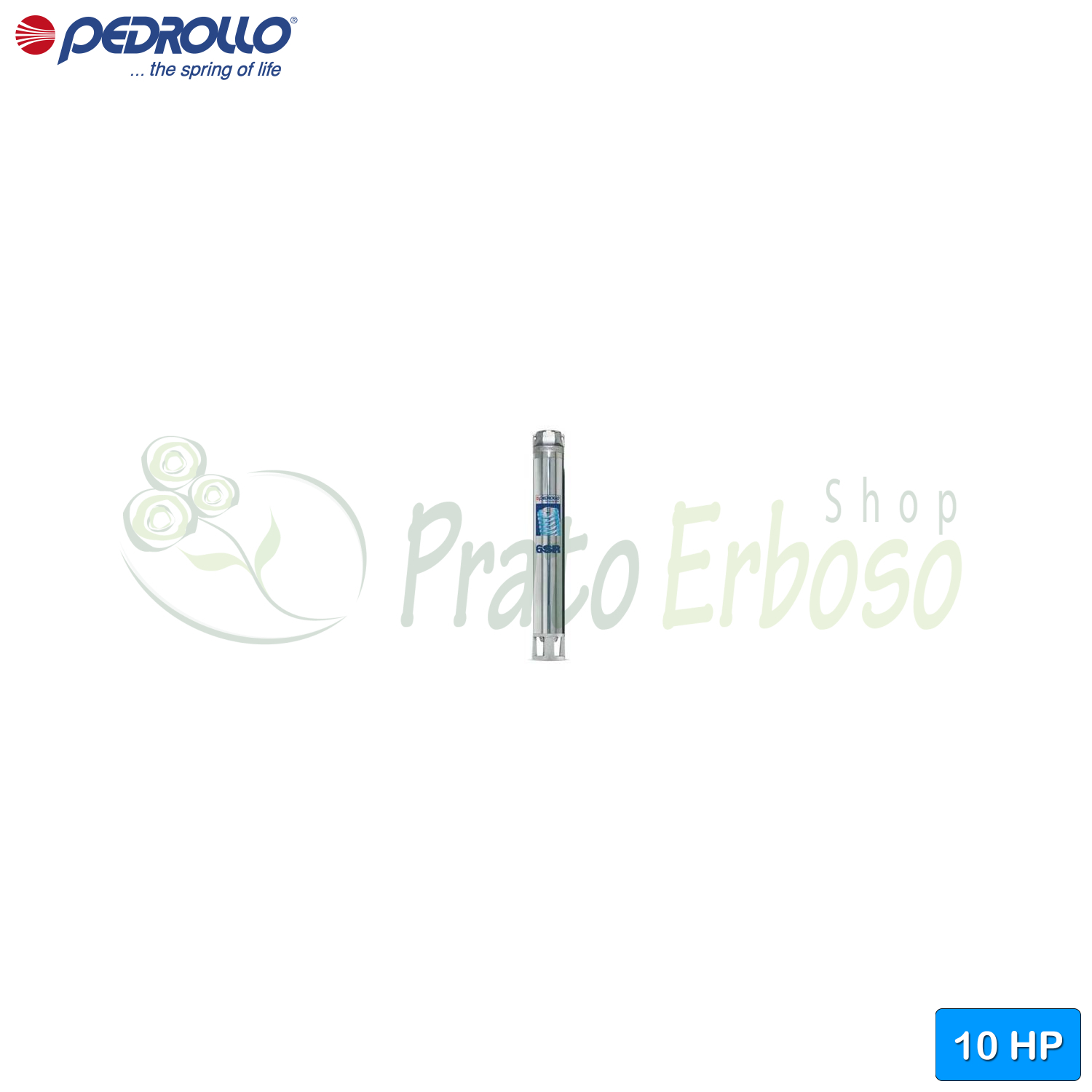

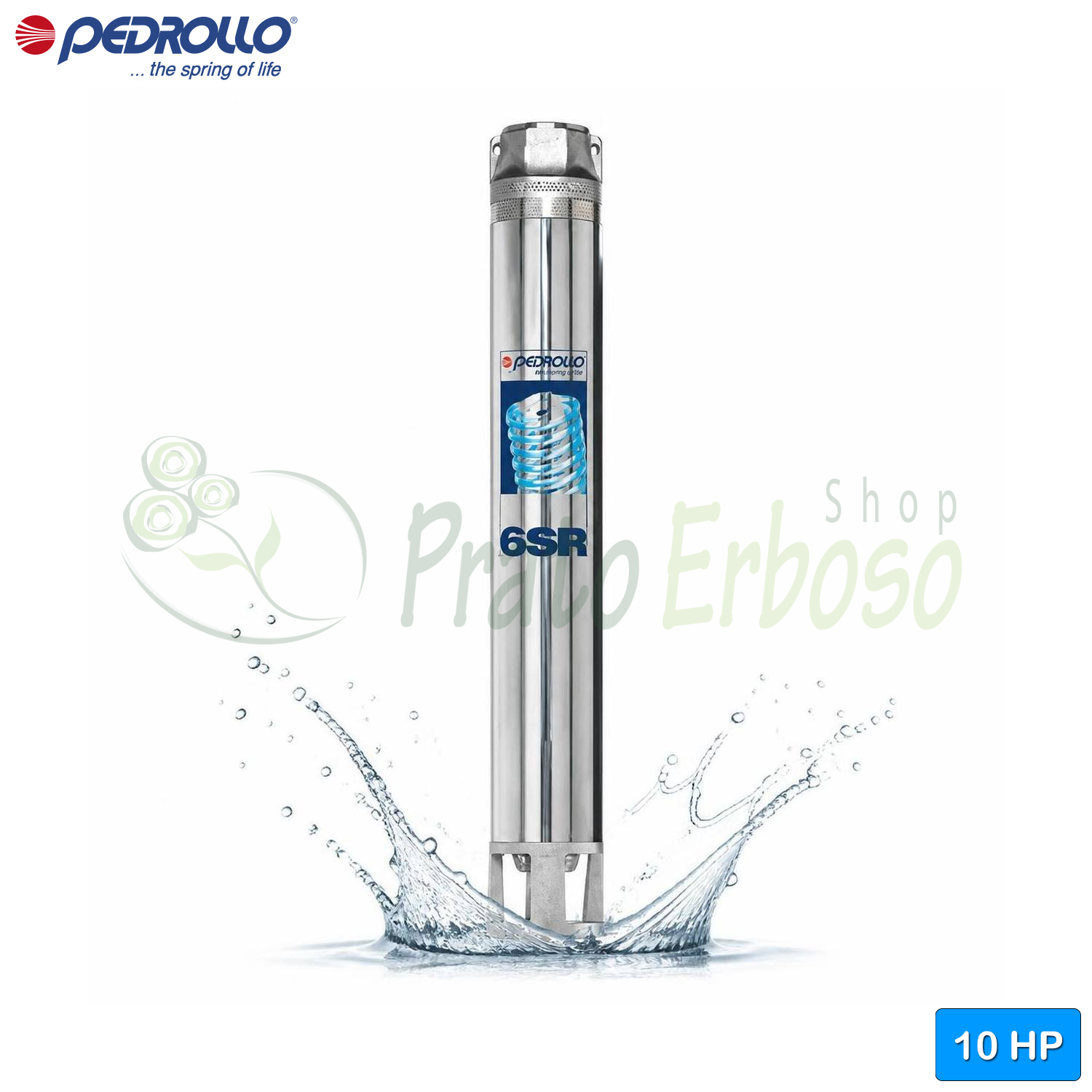

6SR36/7 - HYD - 800 litre submersible pump
HYDRAULIC PART. WITHOUT MOTOR.
Flow rate up to 800 l/min (48 m³/h). Head up to 87 metres.
Variants:
-
Telephone support for information before purchasing.
-
Reinforced packaging to reduce transport damage.
-
After-sales assistance for product installation.
-
Original replacement
Related Products
Compare with Similar Products
6SR36/7 - HYD - 800 litre submersible pumpThis product
HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 800 l/min (48 m³/h). Head up to 87 metres. |
6SR36/6 - HYD - 800 litre submersible pump
HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 800 l/min (48 m³/h). Head up to 70 metres. |
6SR36/9 - HYD - 800 litre submersible pump
HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 800 l/min (48 m³/h). Head up to 112 metres. |
6SR36/11 - HYD - 800 litre submersible pump
HYDRAULIC PART. WITHOUT MOTOR. Flow rate up to 800 l/min (48 m³/h). Head up to 129 metres. |
|
|---|---|---|---|---|
| Power (HP) | Power (HP) 10 | Power (HP) 7.5 | Power (HP) 12.5 | Power (HP) 15 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 7 | Number of impellers 6 | Number of impellers 9 | Number of impellers 11 |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft -- | Pump shaft AISI 304 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 |
| Min. head (m.) | Min. head (m.) 29.5 | Min. head (m.) 20 | Min. head (m.) 37.5 | Min. head (m.) 37 |
| Max. head (m.) | Max. head (m.) 87 | Max. head (m.) 70 | Max. head (m.) 112 | Max. head (m.) 129 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Height (cm) | Height (cm) 104.9 | Height (cm) 104.9 | Height (cm) 125.3 | Height (cm) 161.3 |
| External diameter (cm) | External diameter (cm) 14.8 | External diameter (cm) 14.95 | External diameter (cm) 14.8 | External diameter (cm) 14.95 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
