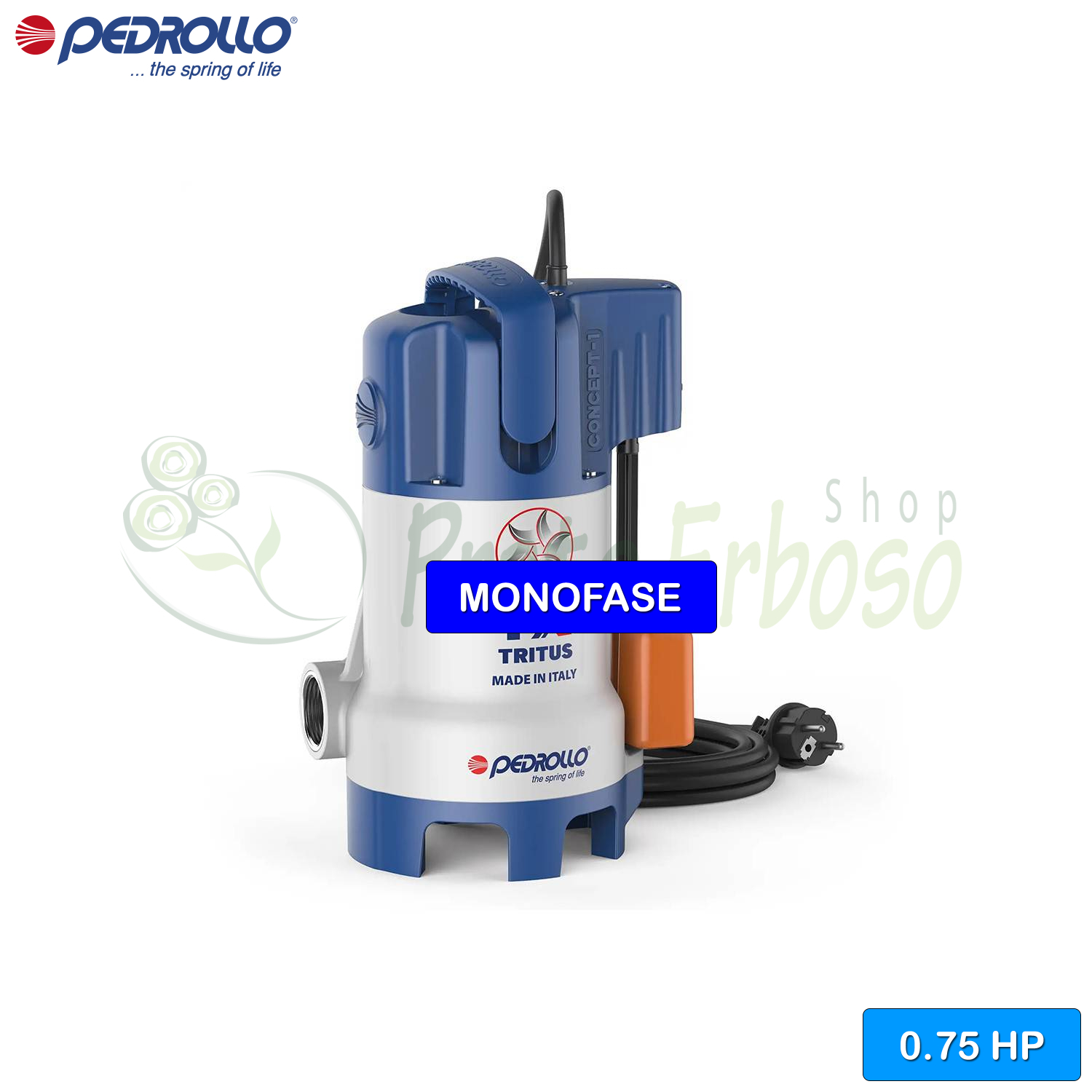

TRITUS-TX - Submersible electric pump with grinder 0.75 HP
Flow rate up to 90 l/min (5.4 m³/h). Head up to 12 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October
The TRITUS-TX grinder pump by Pedrollo is recommended in the domestic sector for pumping waste water.
A distinguishing feature of this pump is the grinder in high-resistance tempered stainless steel which allows for the complete grinding of solid bodies and fibres contained in waste water and waste water in the domestic sector.
It has a flow rate that varies from 10 to 90 litres per minute with a head of 1 to 12 metres.
The TRITUS-TX electric pump is equipped with a compact integrated magnetic float with vertical sliding operation which guarantees total electrical safety and allows the pump to be used in very small spaces, even in wells with sides of just 220 mm.
Equipped with a 5 meter long power cord and float switch.
The TRITUS-TX can be installed up to 5 meters below water level with an adequately long cable.
Liquid temperature up to 40 degrees centigrade.
The TRITUS-TX is made of materials such as noryl, technopolymer and stainless steel which give the product good resistance and robustness.
- Jobs
- slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 2.8
- Pump body
- Technopolymer, Cast iron
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 1
- Max. head (m.)
- 12
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V
- Degree of protection
- IP 68
- Delivery mouth
- 1/4"
- Height (cm)
- 32.4
- Width (cm)
- 20.5
- Depth (cm)
- 20.5
- Weight (Kg)
- 7.0
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 2.8
Pump components and construction
- Pump body
- Cast iron, Technopolymer
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 1
- Max. head (m.)
- 12
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1/4"
Dimensions and weight
- Height (cm)
- 32.4
- Width (cm)
- 20.5
- Depth (cm)
- 20.5
- Weight (Kg)
- 7.0
Packaging, maintenance, and warranty
- Warranty (years)
- 2
