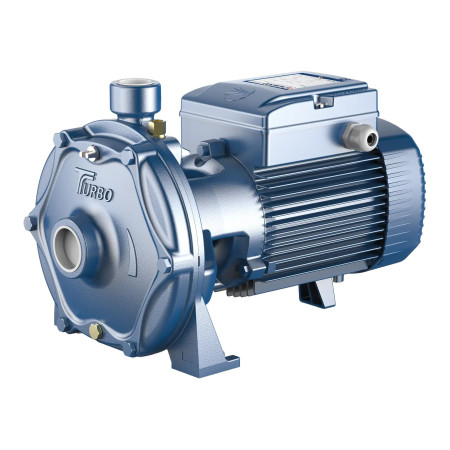

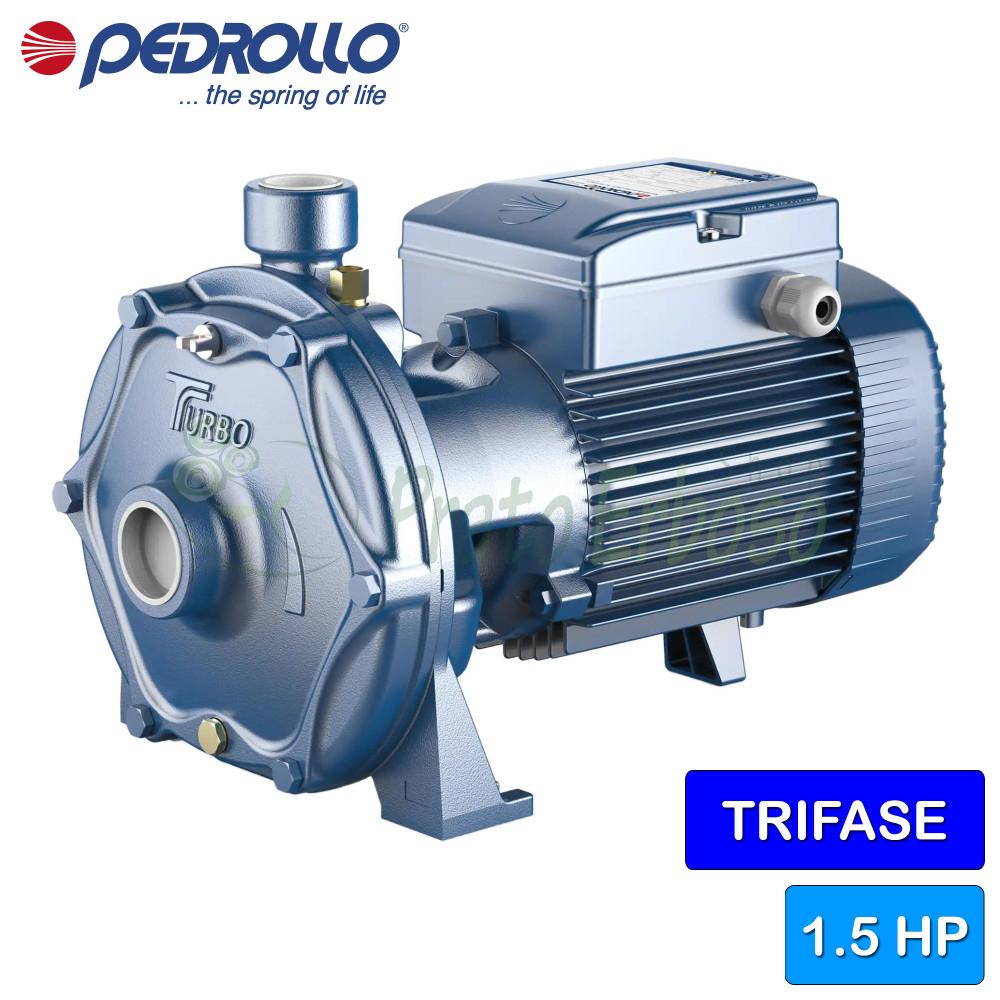

TURBO 6C - 1.5 HP three-phase twin-impeller centrifugal electric pump
Flow rate up to 160 l/min (9.6 m³/h). Head up to 48 m. 1.1 kW (1.5 HP) motor.
Variants:
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The Pedrollo TURBO 6C twin-impeller centrifugal electric pump stands out for its power, efficiency and silence.
Recommended for use in domestic, civil, and industrial applications. Especially for water distribution with pressure tanks and storage tanks, for increasing mains pressure, and for irrigation systems.
The hydraulic redesign of the electric pump has allowed Pedrollo to increase the flow rate by 40 liters per minute and at the same time reduce the silence by 30%.
Thanks to its efficiency, the TURBO 6C also allows you to optimise energy consumption and maintenance costs, with particular attention to sustainability.
The construction is solid and sturdy to allow the product to last over time.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- Current consumption at 400V (A)
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Jobs
- water supply, irrigation
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
TURBO 6 Models and Performance
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
TURBO 6C - 1.5 HP three-phase twin-impeller centrifugal electric pumpThis product Flow rate up to 160 l/min (9.6 m³/h). Head up to 48 m. 1.1 kW (1.5 HP) motor. |
TURBO 4A - 2 HP three-phase twin-impeller centrifugal electric pumpFlow rate up to 140 l/min (8.4 m³/h). Head up to 66 m. 1.5 Kw (2 HP) motor. |
TURBO 6B - 2 HP three-phase twin-impeller centrifugal electric pumpFlow rate up to 180 l/min (10.8 m³/h). Head up to 58 m. 1.5 Kw (2 HP) motor. |
TURBO 6A - 3 HP three-phase twin-impeller centrifugal electric pumpFlow rate up to 200 l/min (12 m³/h). Head up to 68 m. 2.2 Kw (3 HP) motor. |
|
|---|---|---|---|---|
| Price |
Price
€608.78
|
Price
€680.76
|
Price
€680.76
|
Price
€721.02
|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 1.5 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 2 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 2 | Number of impellers 2 | Number of impellers 2 | Number of impellers 2 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Min. head (m.) | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- |
| Max. head (m.) | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- |
| Jobs | Jobs water supply, irrigation | Jobs water supply, irrigation | Jobs water supply, irrigation | Jobs water supply, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
