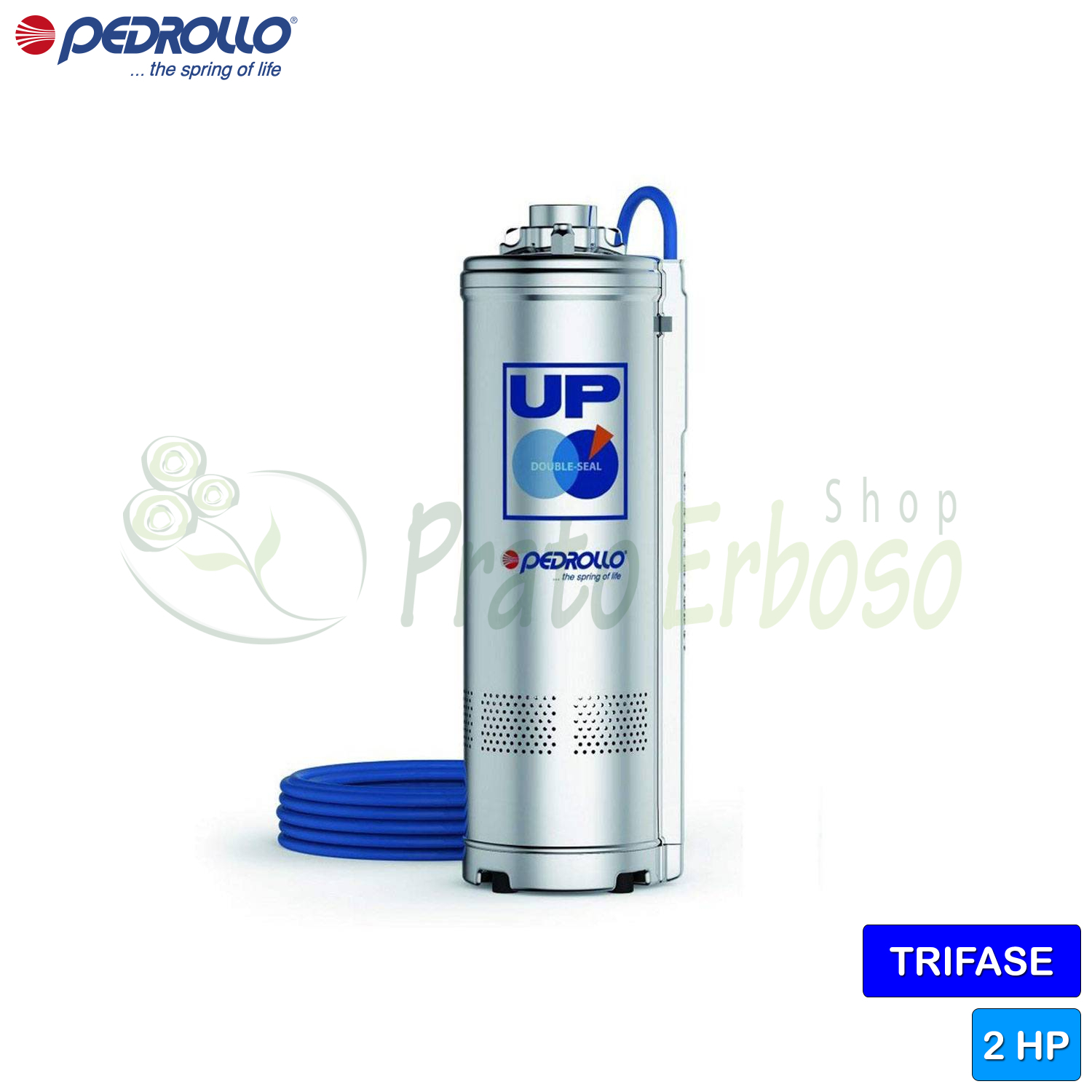

UP 2/6 (10m) - 2 HP 400 V three-phase submersible electric pump Pedrollo - 1

-42%

UP 2/6 (10m) - 2 HP 400 V three-phase submersible electric pump

Name: UP 2/6 (10m) - 2 HP 400 V three-phase submersible electric pump
Brand: Pedrollo
SKU: UP 2/6 400/415 V 10m
Price: 433.05 EUR
Availability: InStock

Flow rate up to 80 l/min (4.8 m³/h). Head up to 97 m. 1.5 kW (2 HP) motor. 10 m cable.

Variants:

Order it before 23:59 and receive it on Thursday 22 October with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 22 October - Friday 23 October
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 22 October - Friday 23 October
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 October

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The UP 2/6 submersible electric pump from Pedrollo 's UP series stands out for its reliability.

The implemented technical solutions prevent the electric pump from blocking even after long periods of inactivity.

Perfect for domestic installations but also for civil and agricultural ones.

The UP 2/6 can pump clean water with a maximum content of 150 grams per cubic meter of sand.

It has a power of 2 HP. The flow rate varies from 10 to 80 liters per minute and the head from 48 to 97 meters.

Installation can be done both horizontally and vertically.

Data sheet

Jobs: water supply, pressurization systems, irrigation
Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2
Current consumption at 400V (A): 3.3
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 6
Crankshaft: AISI 431 stainless steel
Check valve: No
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 48
Max. head (m.): 97
Max. liquid temperature (°C): +40°C
Cable length (m.): 10
Degree of protection: IP 68
Delivery mouth: 1" 1/4
Height (cm): 55.6
External diameter (cm): 15
Weight (Kg): 16.6
Warranty (years): 2

Attachments

UP technical sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo UP series pumps.

Download (2.03MB)

Data sheet

Use and formulation of products

Jobs: water supply, pressurization systems, irrigation

Engine and mechanical performance

Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2
Current consumption at 400V (A): 3.3

Pump components and construction

Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 6
Crankshaft: AISI 431 stainless steel
Check valve: No

Hydraulic performance and filtration

Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 48
Max. head (m.): 97

Liquids and pumping conditions

Max. liquid temperature (°C): +40°C

Power supply and electrical parameters

Cable length (m.): 10

Safety and protection

Degree of protection: IP 68

Installation and connections

Delivery mouth: 1" 1/4

Dimensions and weight

Height (cm): 55.6
External diameter (cm): 15
Weight (Kg): 16.6

Packaging, maintenance, and warranty

Warranty (years): 2

UP models and performance

GUY

three-phase

UP 2/2

UP 2/3

UP 2/4

UP 2/5

UP 2/6

UP 4/3

UP 4/4

UP 4/5

UP 4/6

UP 8/3

UP 8/4

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.1	1.5
1.5	2

IMPELLERS
number
2
3
4
5
6
3
4
5
6
3
4

PERFORMANCE
Q litres/min	H meters
10 ÷ 80	33 ÷ 17
10 ÷ 80	48 ÷ 23
10 ÷ 80	63÷31
10 ÷ 80	81 ÷ 40
10 ÷ 80	95 ÷ 48
20 ÷ 120	40 ÷ 12
20 ÷ 120	53 ÷ 16
20 ÷ 120	67 ÷ 20
20 ÷ 120	80 ÷ 24
40 ÷ 180	40 ÷ 9
40 ÷ 180	52 ÷ 12

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8
Q	l/min	0	10	20	40	60	80	100	120	140	160	180
H	meters	33	32	31	28	23.5	17
		48	46	44.5	40.5	33.5	23
		63	61	59	54	45	31
		81	79	75.5	68.5	57.5	40
		95	93	90	82	68.5	48
		40	-	39	37	33	28	20.5	12
		53	-	52	49	44	37	27.5	16
		67	-	65	61.5	55	46.5	34	20
		80	-	78	74	66	56	41	24
		40	-	-	39	37.5	35.2	32	27.8	22.2	16	9
		52	-	-	51	49.2	46.5	42	36.5	29.5	21.2	12

Construction data UP2

Bearings

Pump side motor bearing	6303 2RS - C3
Opposite side engine bearing	6203 ZZ - C3E

Tree holding

Type of seal	Double mechanical seal in oil chamber
Engine side model	STA-17
LM diameter	17
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	ST1-16
LP diameter	16
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

2.1 - Seal holder cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.3 - Diaphragm/Diffuser Cover	Stainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
