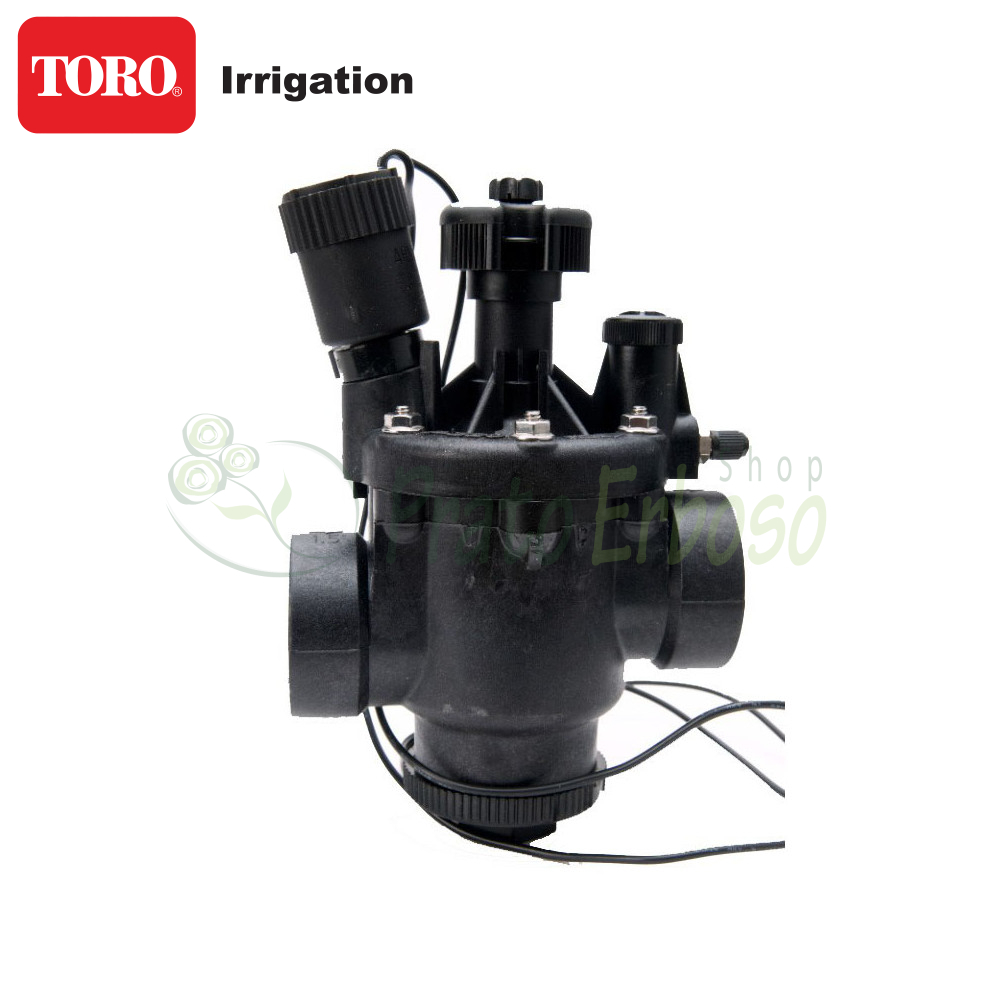

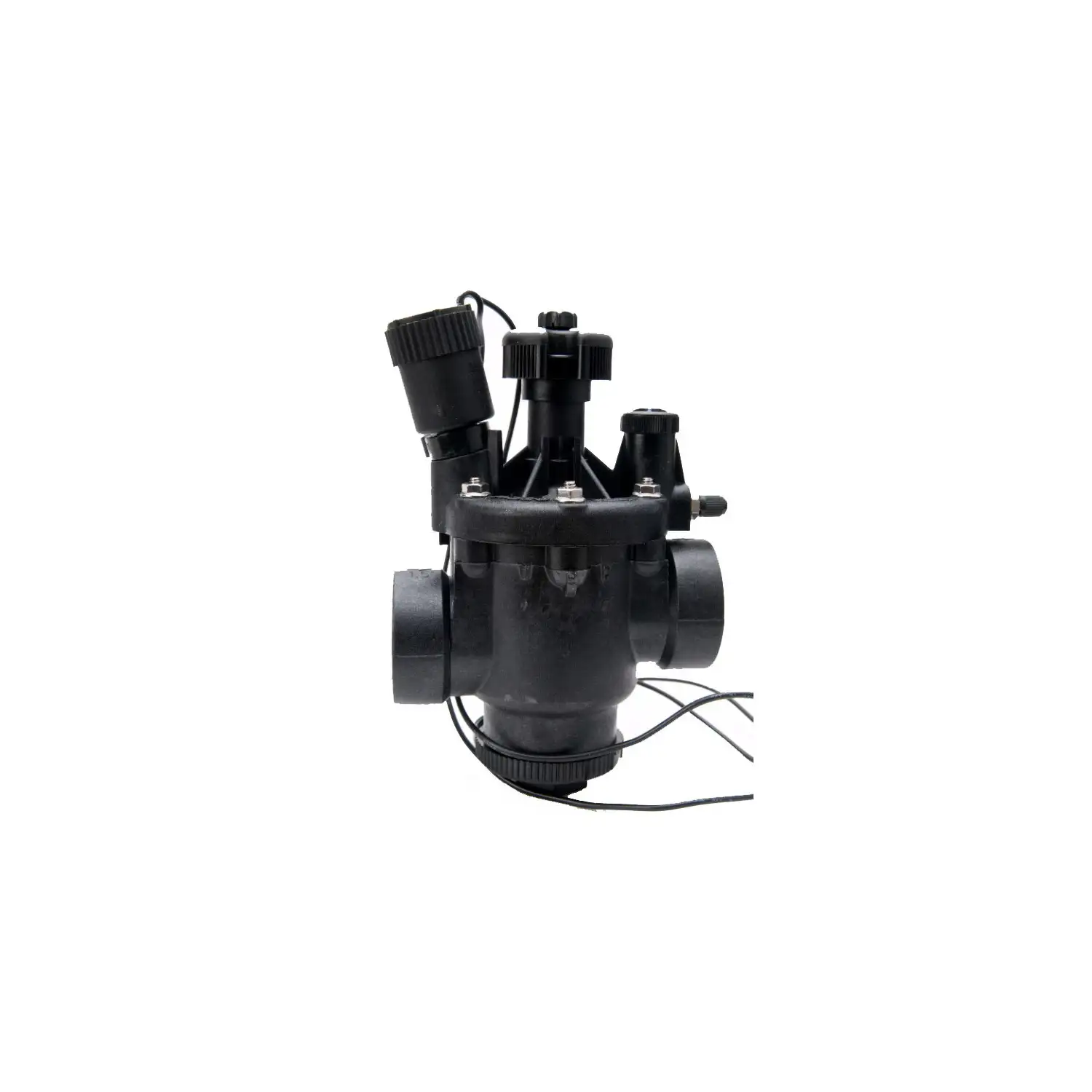

P220-23-94 - 1" Solenoid Valve
Female/female connection. With flow regulator. Bistable solenoid.
The P220-23-94 solenoid valve from Toro Irrigazione's P220 series is the ultimate in regulation and operating pressure.
It offers the same performance as a brass valve but at a much more affordable price.
The construction is solid thanks to the use of glass-fiber reinforced nylon.
The P220-23-94 is designed to ensure maximum regulation precision. The pressure regulator operates in both automatic and manual modes.
The Schrader valve allows you to check the downstream pressure.
The EZReg device prevents dust accumulation and reduces the risk of vandalism.
Also equipped with a manual opening device with internal drain which allows the well to be kept dry.
- Max. flow rate (l./min.)
- Max. working pressure (bar)
- Manual flow regulation
- Yes
- Self-cleaning device
- Yes
- Supply voltage (Volts)
- 9
- Height (cm)
- 17.1
- Width (cm)
- 9.2
- Depth (cm)
- Attack size
- 1 "
- Warranty (years)
- 5
- Type of attack
- female/female
- Thread
- NPT
- Body
- Reinforced nylon
