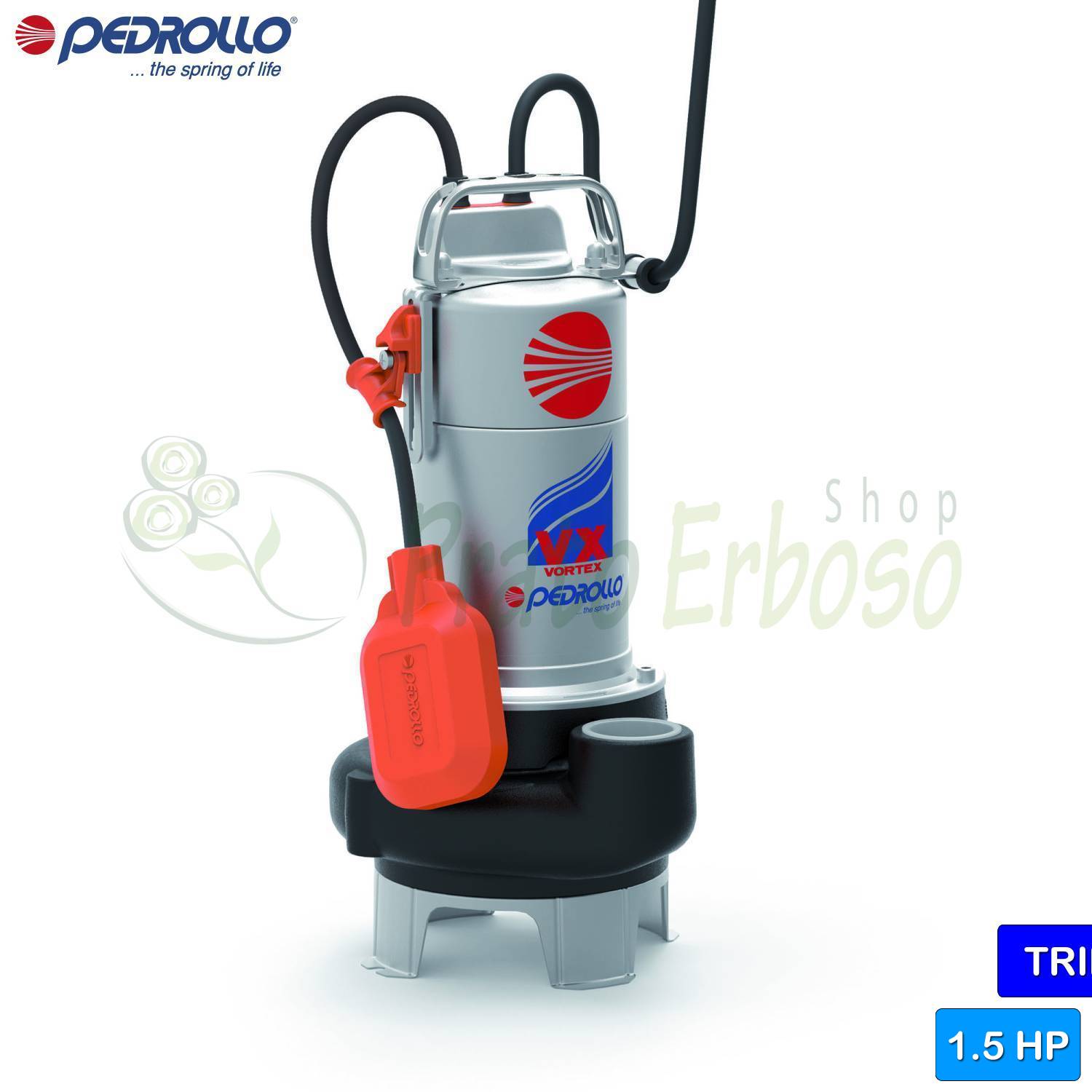

VX 15/35 - 1.5 HP three-phase VORTEX electric pump for waste water OFFER
Flow rate up to 500 l/min (30 m³/h). Head up to 14 m. 1.1 kW (1.5 HP) motor.
The Pedrollo VX 15/35 electric pump is the ideal solution when the working conditions and required performance are demanding.
Recommended for domestic, civil, and industrial use. It is recommended for draining flooded areas such as basements, underground parking lots, car wash areas, for domestic wastewater, emptying cesspits, and disposing of sewage.
The Vortex impeller of the VX 15/35 allows the pumping of solids with a diameter of up to 50 millimetres and, thanks to its special geometry, guarantees safe operation against clogging.
The flow rate ranges from 50 to 550 litres per hour and the head ranges from 2 to 14 metres.
The electric pump can be installed up to 5 meters below the water level.
The supplied power cable is 10 meters long.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 2
- Max. head (m.)
- 14
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Height (cm)
- 42.1
- Width (cm)
- 24.3
- Weight (Kg)
- 14.5
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 2
- Max. head (m.)
- 14
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 42.1
- Width (cm)
- 24.3
- Weight (Kg)
- 14.5
Packaging, maintenance, and warranty
- Warranty (years)
- 2
