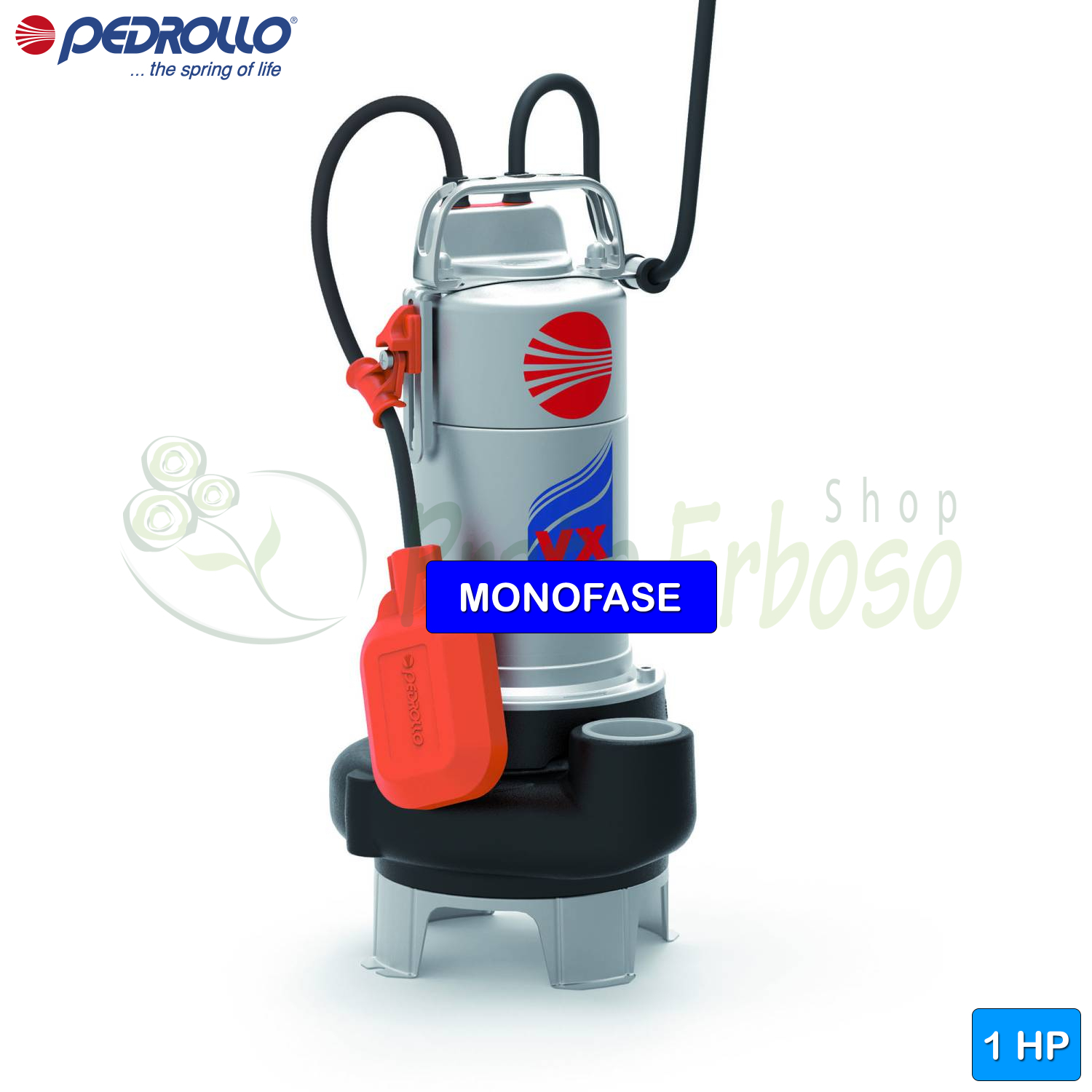

VXm 10/50 (10m) - 1 HP single-phase VORTEX electric pump for waste water
Flow rate up to 550 l/min (33 m³/h). Head up to 9 m. 0.75 kW (1 HP) motor. 10 m cable with Schuko plug.
Variants:
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
×
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXm 10/50 submersible electric pump from Pedrollo 's VX series is the right choice when working conditions and required performance become demanding.
Recommended for the drainage of groundwater, surface water, sewage and wastewater.
Suitable for activities such as draining flooded areas such as basements, underground car parks, car wash areas, for domestic drains, emptying cesspits and disposing of sewage.
The VXm 10/50 is equipped with a vortex impeller which allows the pumping of solids with a diameter of up to 50 millimetres.
The supplied cable is 5 meters long.
Data sheet
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.0
- Capacitor
- 20 µF 450 VL
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 1.5
- Max. head (m.)
- 9
- Max. liquid temperature (°C)
- 40
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 2"
- Height (cm)
- 43.1
- Width (cm)
- 24.3
- Weight (Kg)
- 14.2
- Warranty (years)
- 2
Data sheet
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.0
- Capacitor
- 20 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 1.5
- Max. head (m.)
- 9
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 40
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 2"
Dimensions and weight
- Height (cm)
- 43.1
- Width (cm)
- 24.3
- Weight (Kg)
- 14.2
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Construction data of the VX50 series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
VXm/50 Models and Performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
