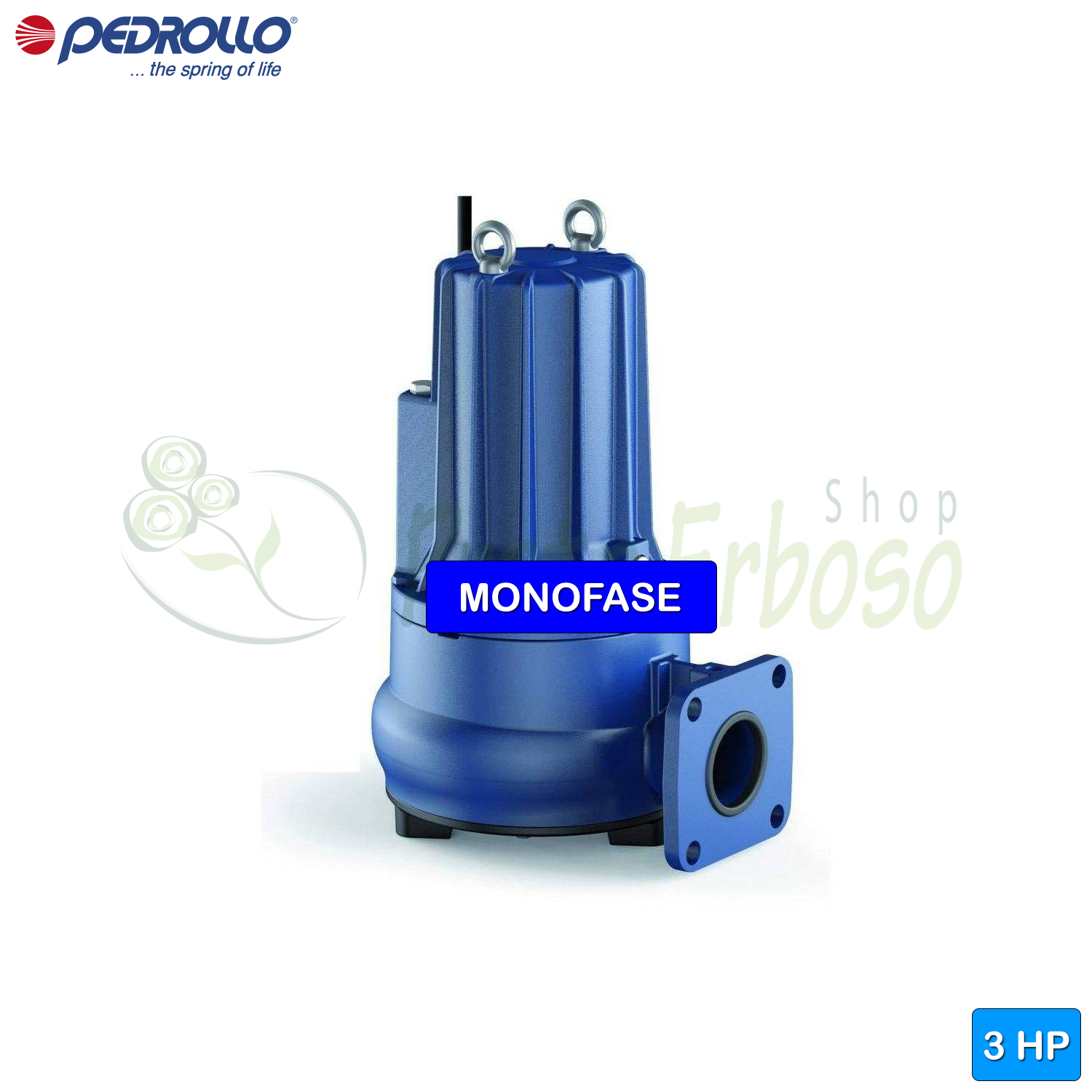

VXCm 30/65-F - 3 HP single-phase VORTEX sewage pump
Flow rate up to 1200 l/min (72 m³/h). Head up to 12 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The VXCm 30/65-F submersible electric pump from the VXC-F series by Pedrollo boasts a solid and robust construction.
Made entirely of thick cast iron which guarantees excellent resistance to abrasion and allows the electric pump to last over time.
Recommended for draining wastewater with suspended solids up to 50 millimetres in diameter.
The VXCm 30/65-F guarantees excellent performance and reliability which are the result of using excellent quality.
It can be installed up to 10 meters below water level.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 15
- Capacitor
- 60 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 1.5
- Max. head (m.)
- 12
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 3"
- Height (cm)
- 47.2
- Weight (Kg)
- 46.4
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 15
- Capacitor
- 60 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 1.5
- Max. head (m.)
- 12
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 3"
Dimensions and weight
- Height (cm)
- 47.2
- Weight (Kg)
- 46.4
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 VXCm 30/65-F - 3 HP single-phase VORTEX sewage pumpThis product Flow rate up to 1200 l/min (72 m³/h). Head up to 12 m. 2.2 Kw (3 HP) motor. |  VXCm 15/65-F - 1.5 HP single-phase VORTEX electric sewage pump Flow rate up to 850 l/min (51 m³/h). Head up to 8 m. 1.1 kW (1.5 HP) motor. |  VXCm 20/65-F 2 HP single-phase VORTEX electric sewage pump Flow rate up to 1000 l/min (60 m³/h). Head up to 9.5 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|
| Price | Price €1,837.32 -42% €1,065.65 | Price €1,427.40 -42% €827.89 | Price €1,562.82 -42% €906.44 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 3 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 15 | Absorption at 230V (A) 8.7 | Absorption at 230V (A) 10 |
| Capacitor | Capacitor 60 µF 450 VL | Capacitor 31.5 µF 450 VL | Capacitor 50 µF 450 VL |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 850 | Max. flow rate (l./min.) 1000 |
| Min. head (m.) | Min. head (m.) 1.5 | Min. head (m.) 1 | Min. head (m.) 1 |
| Max. head (m.) | Max. head (m.) 12 | Max. head (m.) 8 | Max. head (m.) 9.5 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Height (cm) | Height (cm) 47.2 | Height (cm) 45.8 | Height (cm) 45.8 |
| Weight (Kg) | Weight (Kg) 46.4 | Weight (Kg) 41.4 | Weight (Kg) 42.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
