VXCm 15/50 - 1.5 HP single-phase VORTEX electric pump for waste water
Flow rate up to 600 l/min (36 m³/h). Head up to 12 m. 1.1 kW (1.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

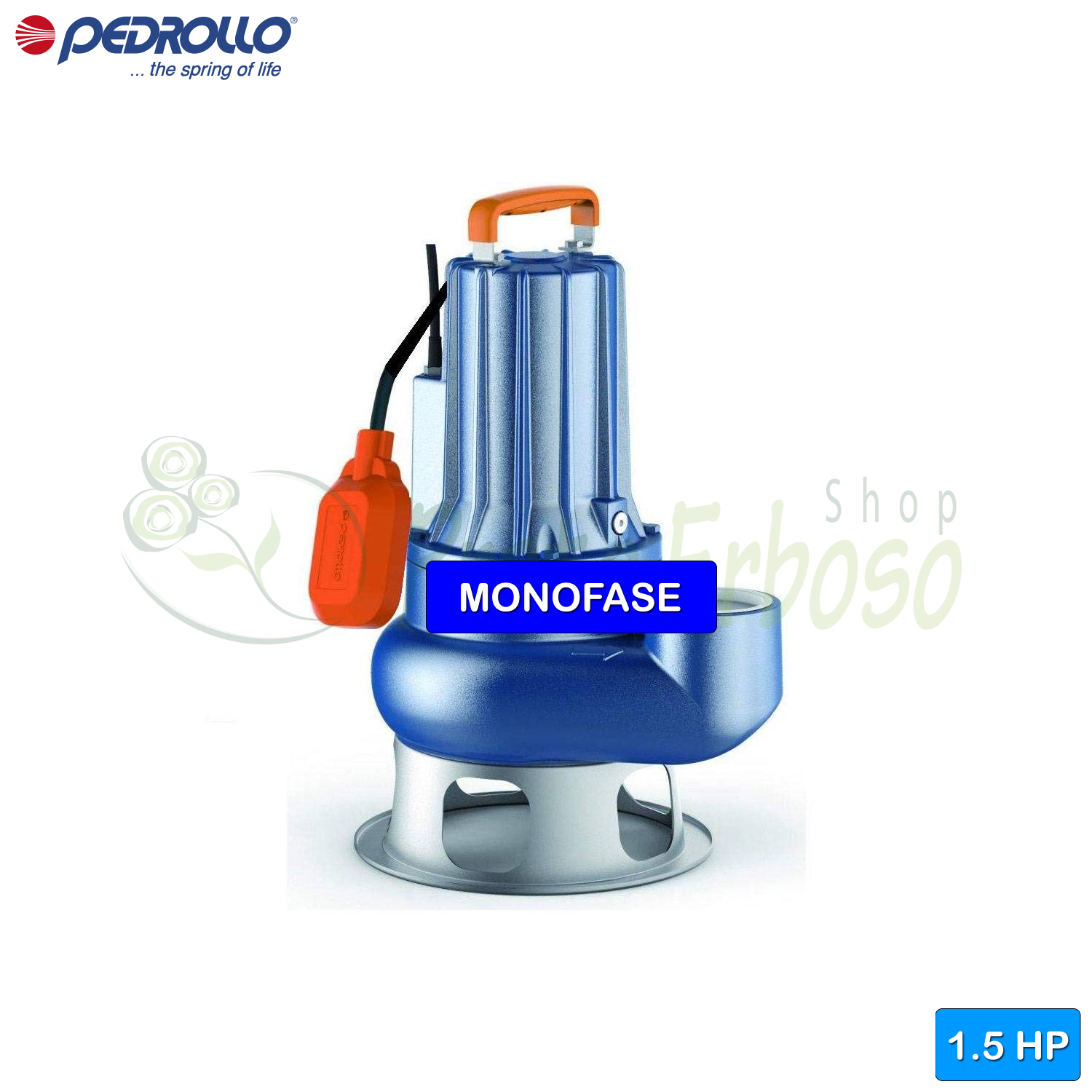

The VXCm 15/50 submersible electric pump from the VXC series by Pedrollo stands out for its high performance.
The vortex impeller makes it suitable for draining dirty, sewage, wastewater, water mixed with mud, revived and putrid sludge.
Recommended for civil and industrial installations.
Suitable for use in sewers, tunnels, excavations, canals and underground car parks.
The VXCm 15/50 stands out because it ensures continuous operation even when completely uncovered.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.5
- Capacitor
- 50 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 50
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2.5
- Max. head (m.)
- 12
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Delivery mouth
- 2" 1/2
- Height (cm)
- 48.7
- Width (cm)
- 33.1
- Depth (cm)
- 24.2
- Weight (Kg)
- 42
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.5
- Capacitor
- 50 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 50
- Crankshaft
- AISI 431 stainless steel
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2.5
- Max. head (m.)
- 12
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Installation and connections
- Delivery mouth
- 2" 1/2
Dimensions and weight
- Height (cm)
- 48.7
- Width (cm)
- 33.1
- Depth (cm)
- 24.2
- Weight (Kg)
- 42
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
