DG BLU 5 - 1.5 HP single-phase pressure group
1.1 Kw (1.5 HP) motor. Flow rate up to 130 l/min (4.8 m³/h). Head up to 130 m.

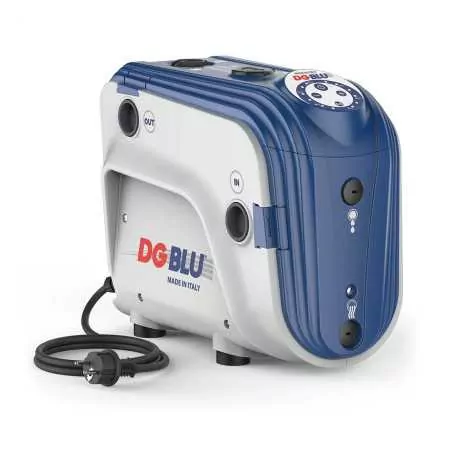

The DG BLU 5 by Pedrollo is an automatic pressurization system with inverter composed of a high-efficiency self-priming multi-impeller electric pump, storage vessel, pressure and flow sensors, non-return valve.
Ideal for domestic and civil use, as its dimensions are compact and it is extremely silent in use.
The DG BLU 5 is equipped with a sophisticated electronic inverter control system capable of intelligently and intuitively managing the entire system.
It allows the system pressure to be kept constant according to the water demand.
It controls the hydraulic and electrical operating parameters and protects the electric pump from anomalies.
It can be equipped with an expansion card that allows it to work with another DG-BLU.
The DG BLU 5 adapts to any type of pressurization system, even existing ones, and allows you to limit the starting and operating currents for greater energy savings.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Flow rate min. (l./min.)
- Max flow (l./min.)
- Min head (m.)
- Max head (m.)
- Employments
- water supply, pressurization systems
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight kg)
- Guarantee
- 2
Compare with Similar Products
 DG BLU 5 - 1.5 HP single-phase pressure groupThis product 1.1 Kw (1.5 HP) motor. Flow rate up to 130 l/min (4.8 m³/h). Head up to 130 m. | |
|---|---|
| Motor connection | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 1.5 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) -- |
| Max flow (l./min.) | Max flow (l./min.) -- |
| Min head (m.) | Min head (m.) -- |
| Max head (m.) | Max head (m.) -- |
| Employments | Employments water supply, pressurization systems |
| Height (cm) | Height (cm) -- |
| Width (cm) | Width (cm) -- |
| Depth (cm) | Depth (cm) -- |
| Weight kg) | Weight kg) -- |
| Guarantee | Guarantee 2 |
