GP2W - MK 5/4 - 2x1 HP three-phase pressure group
2 THREE-PHASE ELECTRIC PUMPS.
2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 240 l/min (12 m³/h). Head up to 57 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 10 November - Tuesday 11 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 10 November - Tuesday 11 November |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November - Monday 17 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 10 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Monday 10 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 10 November - Tuesday 11 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 10 November - Tuesday 11 November
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November - Monday 17 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 10 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Monday 10 November

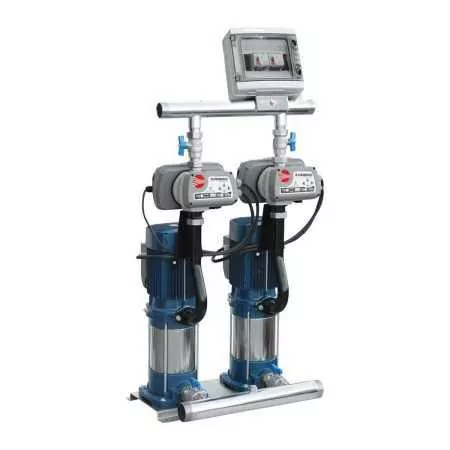

The Pedrollo GP2W - MK 5/4 pressure set consists of two MK 5/4 pumps controlled by two Pedrollo STEADYPRES TT 6 inverters which allow each pump to operate at variable speed and constant pressure.
The type of inverter used, mounted directly on the pump delivery, is dedicated to the control of electric pumps.
The inverter features internal components: a pressure transducer for regulating the holding pressure. Flow control, therefore, stops the pump when there is no water demand from the user, also protecting the pump from depriming in the absence of water.
The unit is supplied with the pressure, absorption and rotation parameters already set, the pressure parameter can be easily changed even after installation.
The operating flow rate is achieved by the simultaneous operation of the two pumps. During periods of low consumption, operation is limited to one pump. Vertical pumps are chosen for their exceptionally quiet operation and high efficiency.
The units are hydraulically and electrically pre-assembled on a frame and include shut-off ball valves with union and ONDASTOP silent diaphragm check valves.
The delivery groups can be combined with a membrane tank, which functions as a water hammer arrester.
Supplied in versions with single-phase 230 V or three-phase 380 V power supply.
All our pump units are designed to meet the specific needs of the system, so it is possible to create units with a single pump or with flow rate/head characteristics different from those shown in the table.
The GP2W - MK 5/4 pressure group is suitable for supplying condominium complexes with up to 12 apartments.
- Motor connection
- THREE-PHASE
- Power (HP)
- 2
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 20
- Max. head (m.)
- 57
- Weight (Kg)
- 82.5
- Warranty (years)
- 2
Compare with Similar Products
 GP2W - MK 5/4 - 2x1 HP three-phase pressure groupThis product 2 THREE-PHASE ELECTRIC PUMPS. 2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 240 l/min (12 m³/h). Head up to 57 m. | |
|---|---|
| Price | Price €5,692.52 -45% €3,130.89 |
| Motor connection | Motor connection THREE-PHASE |
| Power (HP) | Power (HP) 2 |
| Suction mouth | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 |
| Pump body | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No |
| Degree of protection | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 240 |
| Min. head (m.) | Min. head (m.) 20 |
| Max. head (m.) | Max. head (m.) 57 |
| Weight (Kg) | Weight (Kg) 82.5 |
| Warranty (years) | Warranty (years) 2 |
