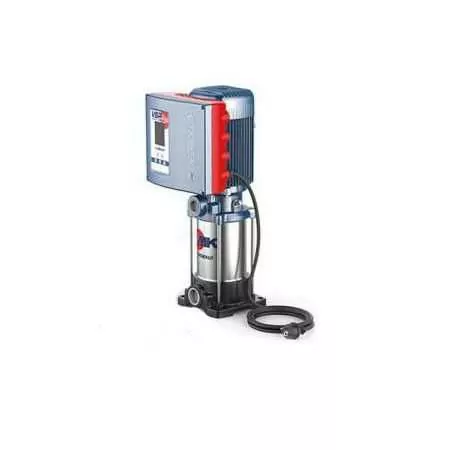

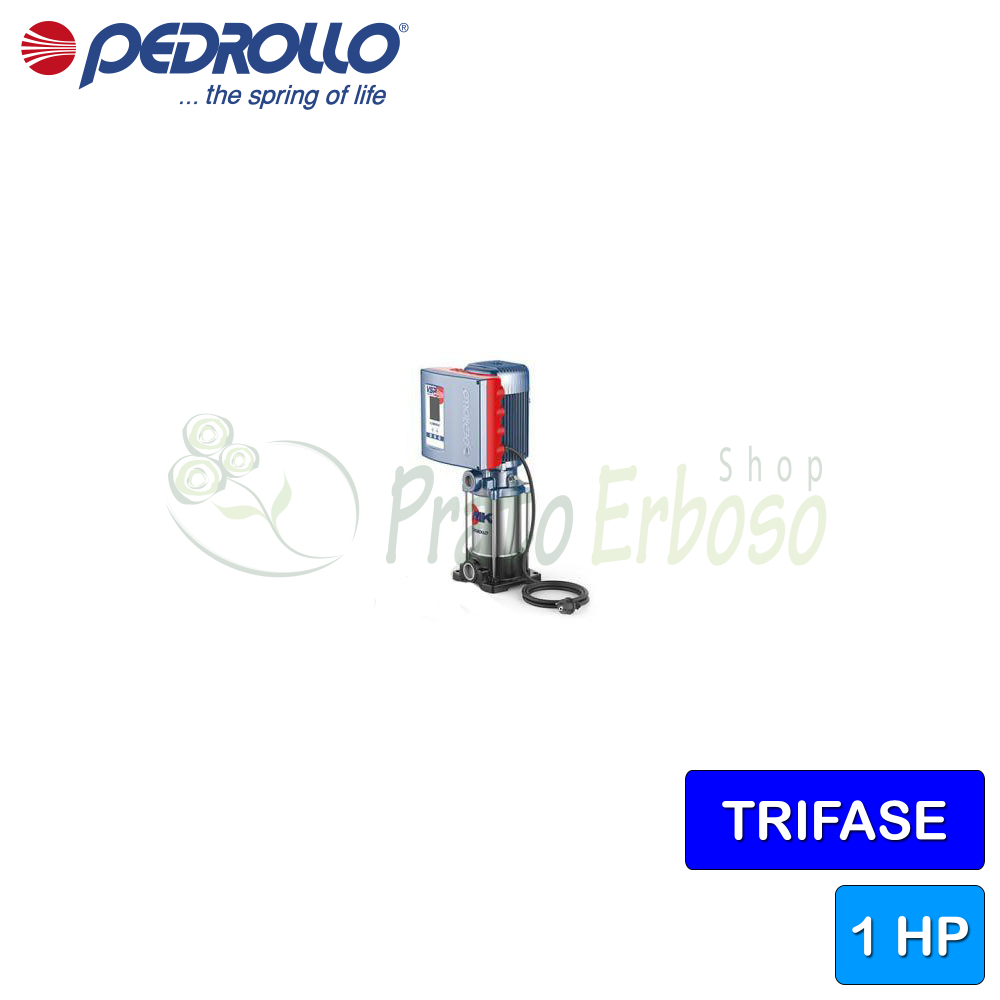

VSP-MK 3/3 - 1 HP three-phase booster set
0.75 kW (1 HP) motor. Flow rate up to 80 l/min (5.4 m³/h). Head up to 52 m.
VSP-MK 3/3 is a compact pumping unit, complete with electric pump, inverter and pressure sensor.
Ideal for domestic and civil pressurization systems, the VSP pumping unit, thanks to the inverter speed regulator, allows the motor revolutions to be modulated in relation to the quantity of water used by the system, reducing energy consumption and always maintaining the system pressure is constant, even when the number of users varies.
It has a flow rate that varies from 10 to 80 liters per minute with a head from 52 to 29 metres.
Robust and simple to use, it is ideal for simultaneously generating constant pressure in all taps.
The inverter drive on the pump reduces wear on the electric pump as it runs at a low speed for most of its life and is started and stopped gradually.
- Motor connection
- THREE-PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 13
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Check valve
- no
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 80
- Min head (m.)
- 29
- Max head (m.)
- 52
- Employments
- irrigation, pressurization systems, water supply
- Height (cm)
- 44.7
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight kg)
- 23.3
- Guarantee
- 2
