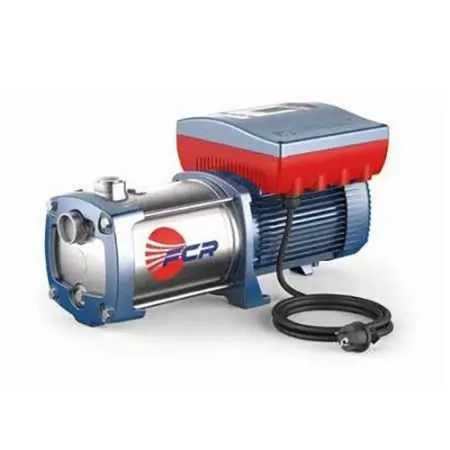

VSPm-FCR 70/200 - 2 HP single-phase booster set
1.5 kW (2 HP) motor. Flow rate up to 200 l/min (5.4 m³/h). Head up to 67 m.
VSPm-FCR 70/200 is a compact pumping unit, complete with electric pump, inverter and pressure sensor.
Ideal for domestic and civil pressurization systems, the VSP pumping unit, thanks to the inverter speed regulator, allows the motor revolutions to be modulated in relation to the quantity of water used by the system, reducing energy consumption and always maintaining the system pressure is constant, even when the number of users varies.
It has a flow rate that varies from 20 to 200 liters per minute with a head from 67 to 14 metres.
Robust and simple to use, it is ideal for simultaneously generating constant pressure in all taps.
The inverter drive on the pump reduces wear on the electric pump as it runs at a low speed for most of its life and is started and stopped gradually.
- Motor connection
- SINGLE PHASE
- Power (HP)
- 2
- Absorption at 230V (A)
- 13
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Check valve
- no
- Flow rate min. (l./min.)
- 20
- Max flow (l./min.)
- 200
- Min head (m.)
- 14
- Max head (m.)
- 67
- Employments
- irrigation, pressurization systems, water supply
- Height (cm)
- 26
- Width (cm)
- 24.2
- Length (cm)
- 44.5
- Weight kg)
- 24.1
- Guarantee
- 2
Compare with Similar Products
 VSPm-FCR 70/200 - 2 HP single-phase booster setThis product 1.5 kW (2 HP) motor. Flow rate up to 200 l/min (5.4 m³/h). Head up to 67 m. |  VSPm-FCR 75/90 - 2 HP single-phase booster set1.5 kW (2 HP) motor. Flow rate up to 90 l/min (5.4 m³/h). Head up to 73 m. |  VSPm-FCR 80/130 - 2 HP single-phase booster set1.5 kW (2 HP) motor. Flow rate up to 130 l/min (5.4 m³/h). Head up to 76 m. | |
|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (HP) | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 13 | Absorption at 230V (A) 13 | Absorption at 230V (A) 13 |
| Suction mouth | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 |
| Delivery port | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " |
| Check valve | Check valve no | Check valve no | Check valve no |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 20 | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 10 |
| Max flow (l./min.) | Max flow (l./min.) 200 | Max flow (l./min.) 90 | Max flow (l./min.) 130 |
| Min head (m.) | Min head (m.) 14 | Min head (m.) 38 | Min head (m.) 31 |
| Max head (m.) | Max head (m.) 67 | Max head (m.) 80 | Max head (m.) 76 |
| Employments | Employments irrigation, pressurization systems, water supply | Employments irrigation, pressurization systems, water supply | Employments irrigation, pressurization systems, water supply |
| Height (cm) | Height (cm) 26 | Height (cm) 34.4 | Height (cm) 26 |
| Width (cm) | Width (cm) 24.2 | Width (cm) 49.7 | Width (cm) 24.2 |
| Length (cm) | Length (cm) 44.5 | Length (cm) 44.5 | Length (cm) 44.5 |
| Weight kg) | Weight kg) 24.1 | Weight kg) 26.3 | Weight kg) 21.9 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 |
