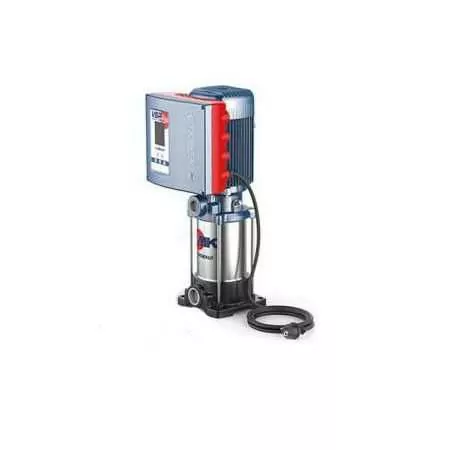

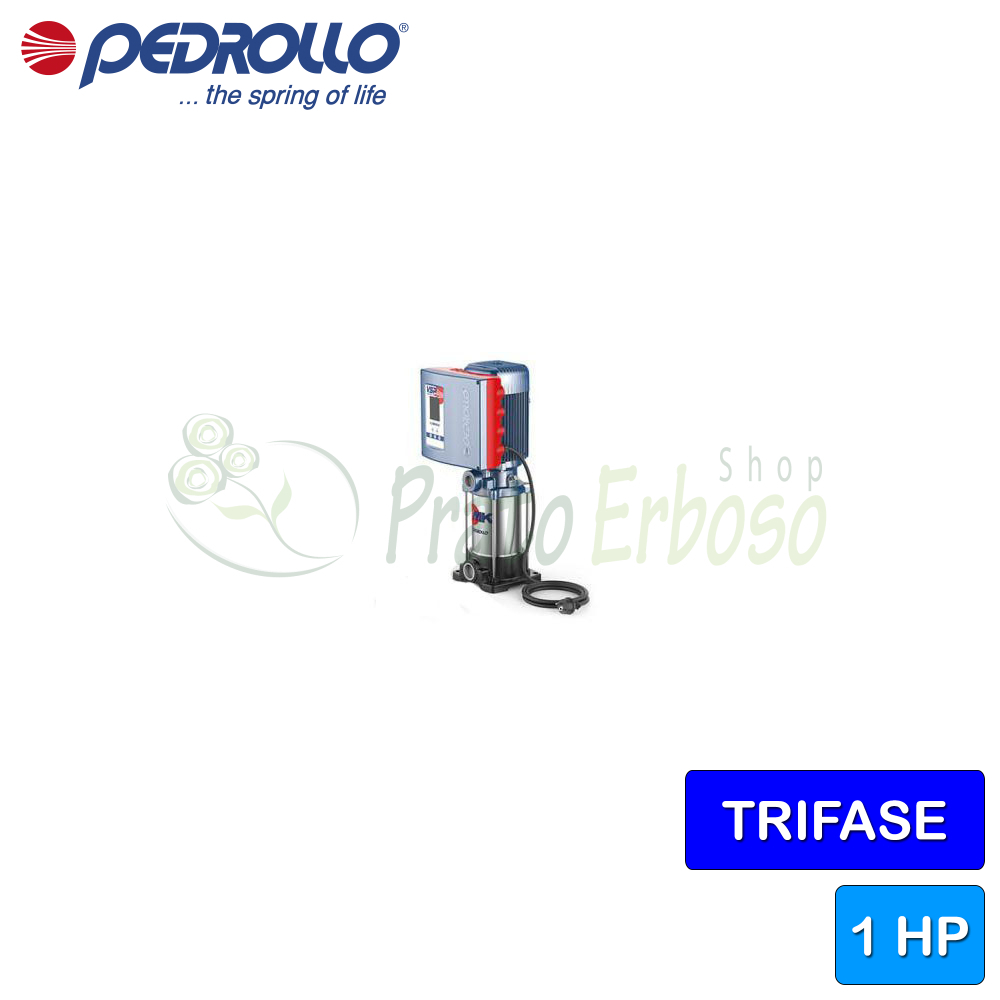

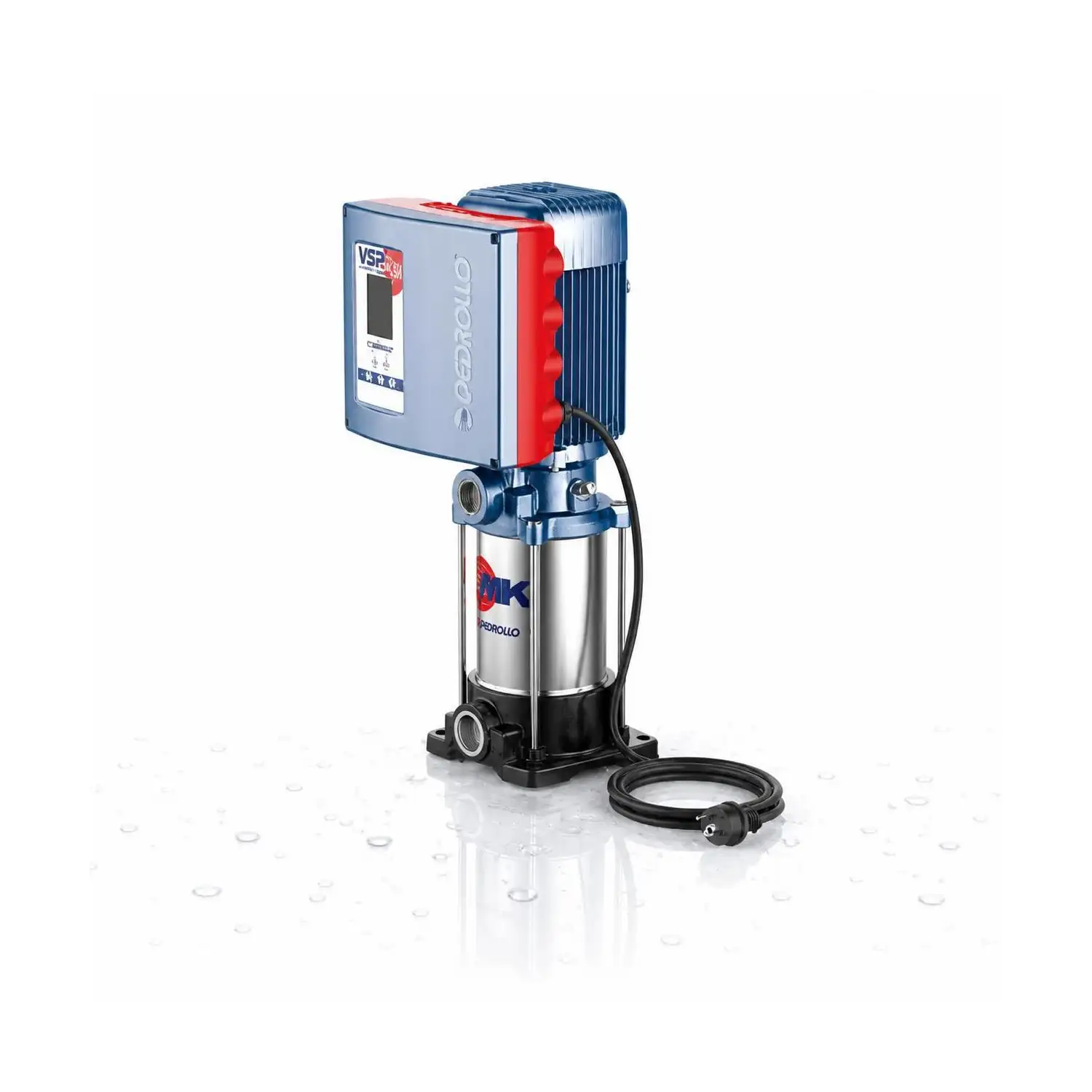

VSP-MK 5/4 - 1 HP three-phase pressure booster set
0.75 kW (1 HP) motor. Flow rate up to 120 l/min (5.4 m³/h). Head up to 55 m.
The VSP-MK 5/4 inverter electric pump from Pedrollo 's VSP series is an intelligent pumping unit.
Equipped with a display and keyboard, programming has never been so easy thanks to these tools.
The variable frequency drive and pressure sensor ensure constant pressure regardless of the amount of water required by the system.
The advantages of using the VSP-MK 5/4 include ease of installation, configuration and adjustment, increased comfort and considerable energy savings.
It adapts to any type of pressurization system, even pre-existing ones.
- Motor connection
- THREE-PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 20
- Max. head (m.)
- 55
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 47.4
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 23.8
- Warranty (years)
- 2
