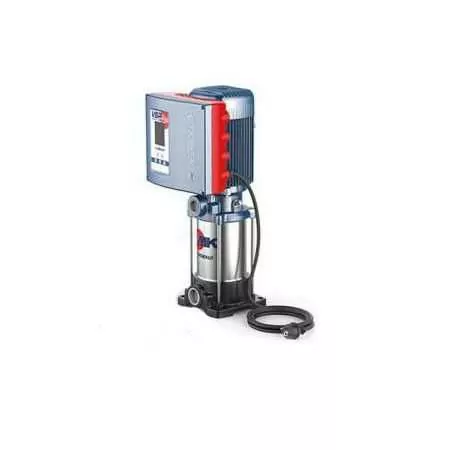

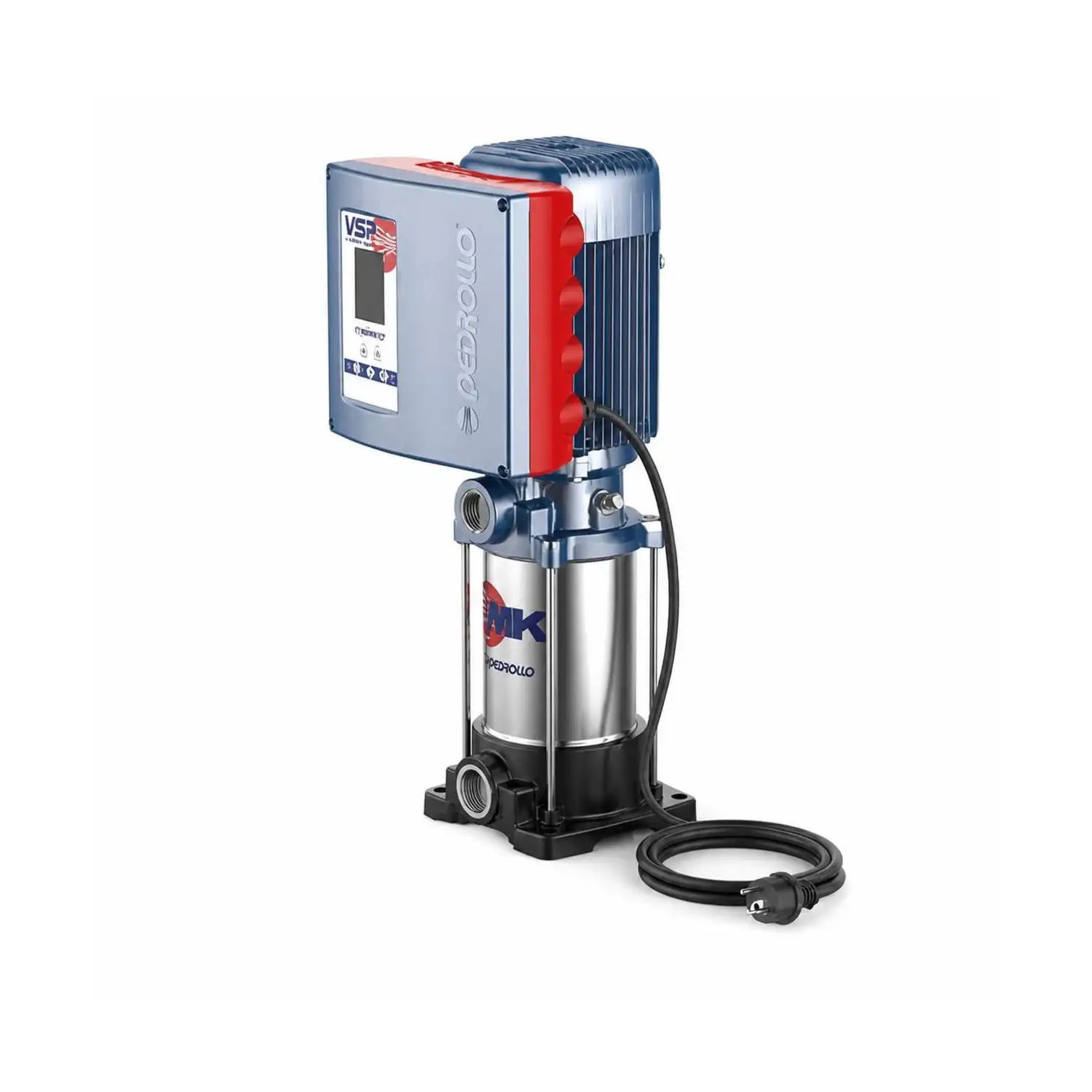

VSP-MK 8/6 - 3 HP three-phase pressure booster set
2.2 kW (3 HP) motor. Flow rate up to 180 l/min (5.4 m³/h). Head up to 81 m.
The VSP-MK 8/6 inverter electric pump from Pedrollo 's VSP series is a pumping unit capable of covering a wide variety of applications.
It stands out for its excellent performance, flexibility, silence and the considerable energy savings it ensures.
The system consists of an electric pump and an integrated frequency converter which, equipped with a pressure sensor, guarantees constant pressure.
The VSP-MK 8/6 unit protects the system against dry running, overcurrent, overvoltage and undervoltage, overtemperature and short circuits.
Setup and programming is very simple thanks to the display and keypad.
- Motor connection
- THREE-PHASE
- Power (HP)
- 3
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 18.5
- Max. head (m.)
- 81
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 54.8
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 29.4
- Warranty (years)
- 2
