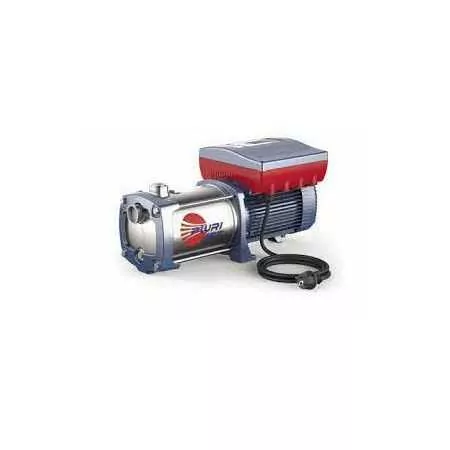

VSP-PLURIJET 105/130 - 3 HP three-phase pressure booster set
2.2 kW (3 HP) motor. Flow rate up to 130 l/min (5.4 m³/h). Head up to 104 m.
The VSP-PLURIJET 105/130 inverter electric pump from the VSP series by Pedrollo is the right choice in the event of system pressure drops.
The VSP-PLURIJET 105/130 is a system composed of an electric pump, a frequency converter and a pressure sensor that allow the pressure to be maintained constant.
It can pump clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Ready to use, no setup required. The display and keypad allow for simple and intuitive setup.
Among the advantages of its use are considerable energy savings and greater comfort, thanks to optimized performance and low noise.
- Motor connection
- THREE-PHASE
- Power (HP)
- 3
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 58
- Max. head (m.)
- 104
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 26
- Width (cm)
- 24.2
- Length (cm)
- 52.3
- Weight (Kg)
- 24.1
- Warranty (years)
- 2
