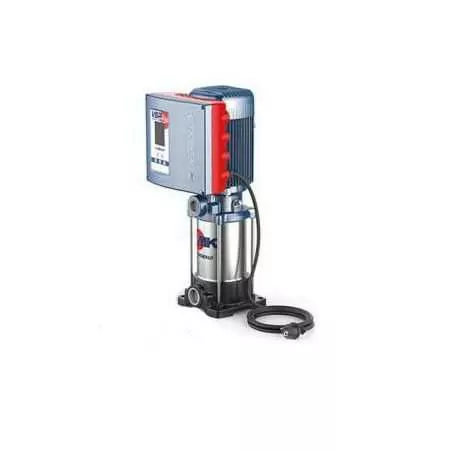

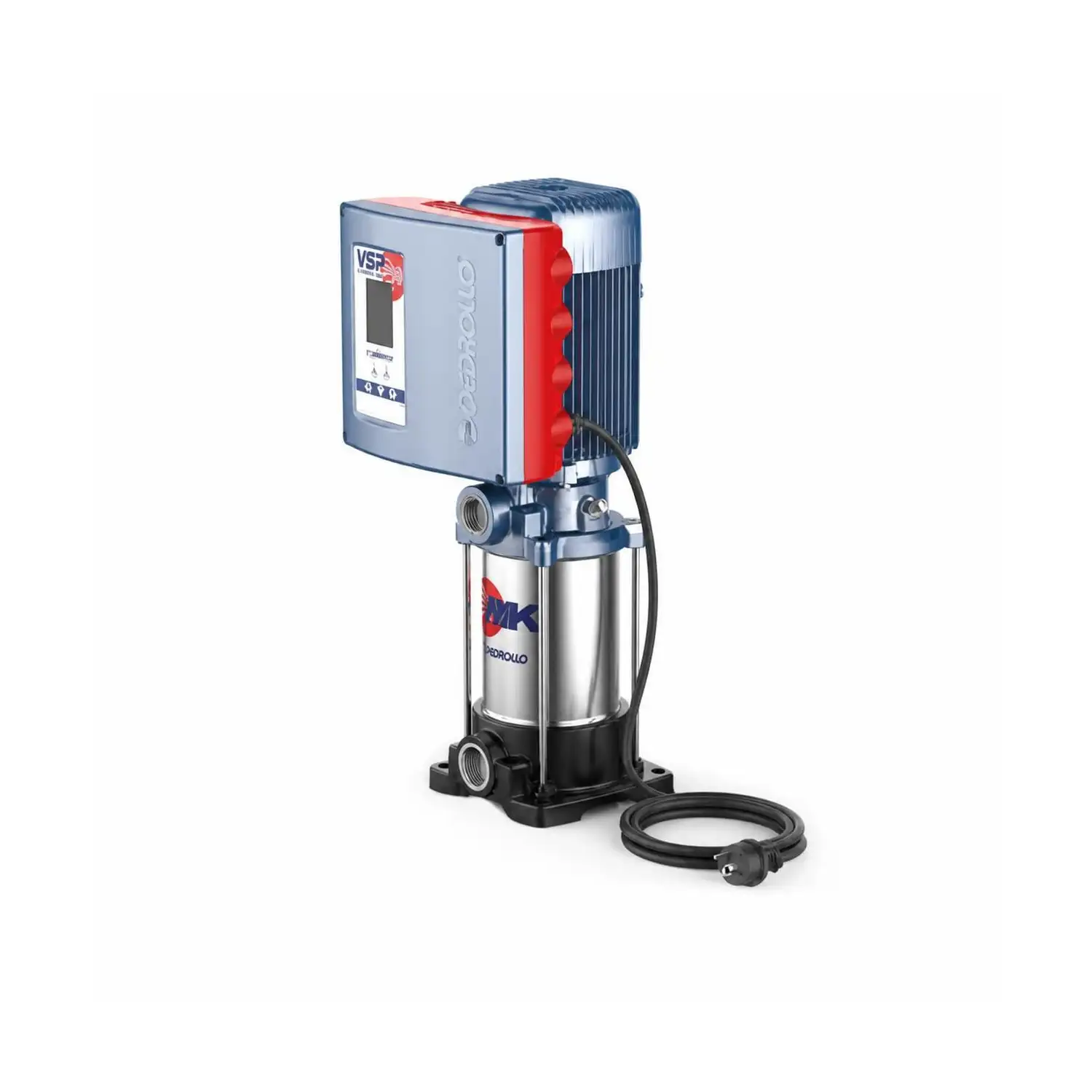

VSPm-MK 8/4 - 1.5 HP single-phase pressure booster set
1.1 kW (1.5 HP) motor. Flow rate up to 180 l/min (5.4 m³/h). Head up to 53 m.
The VSPm-MK 8/4 inverter electric pump from Pedrollo 's VSP series is recommended for domestic and civil installations.
Suitable for water supply and pressure boosting activities.
It can pump clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
It doesn't require any setup procedure. The operating pressure can be changed via the control panel.
The VSPm-MK 8/4 system protects the system against dry running, overcurrent, overvoltage and undervoltage, overtemperature and short circuits.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 12
- Max. head (m.)
- 53
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 47.4
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 26.6
- Warranty (years)
- 2
