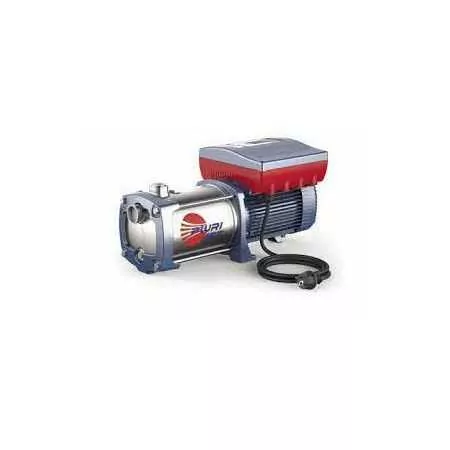

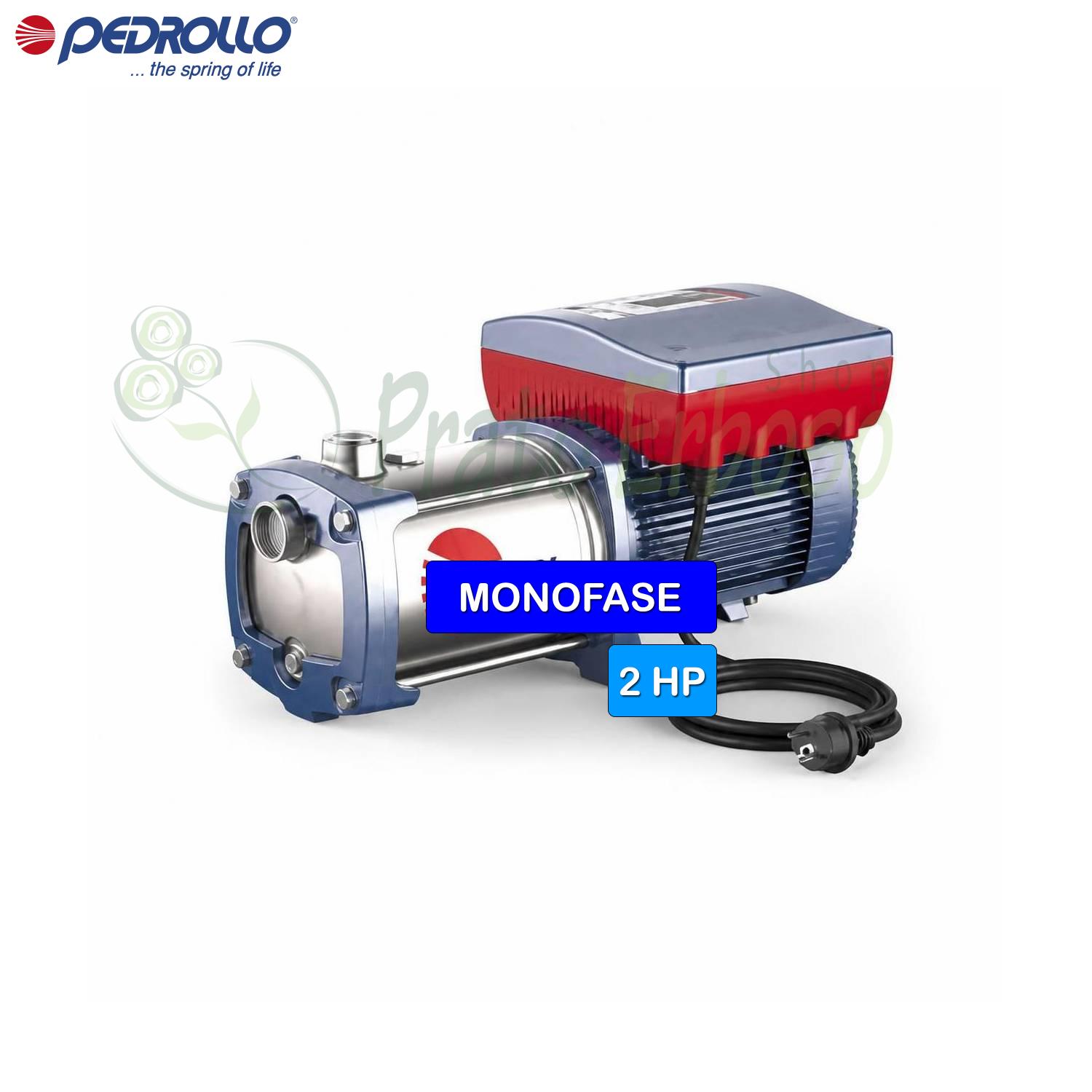

VSPm-PLURIJET 80/130 - 2 HP single-phase pressure booster set
1.5 kW (2 HP) motor. Flow rate up to 130 l/min (5.4 m³/h). Head up to 76 m.
The VSPm-PLURIJET 80/130 system from the Pedrollo VSP series is a compact pumping unit, complete with electric pump, inverter and pressure sensor.
Ideal for domestic and civil pressurization systems, the VSP pumping unit, thanks to the inverter speed regulator, allows you to modulate the motor revolutions in relation to the quantity of water used by the system, reducing energy consumption and always maintaining constant system pressure, even when the number of users varies.
It has a flow rate that varies from 10 to 130 litres per minute with a head from 76 to 31 metres.
Robust and simple to use, it is ideal for simultaneously generating constant pressure on all taps.
The inverter drive on the pump reduces wear and tear on the electric pump as it runs at a low speed for most of its life and starts and stops progressively.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 2
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 31
- Max. head (m.)
- 76
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 26
- Width (cm)
- 24.2
- Length (cm)
- 49.7
- Weight (Kg)
- 21.9
- Warranty (years)
- 2
