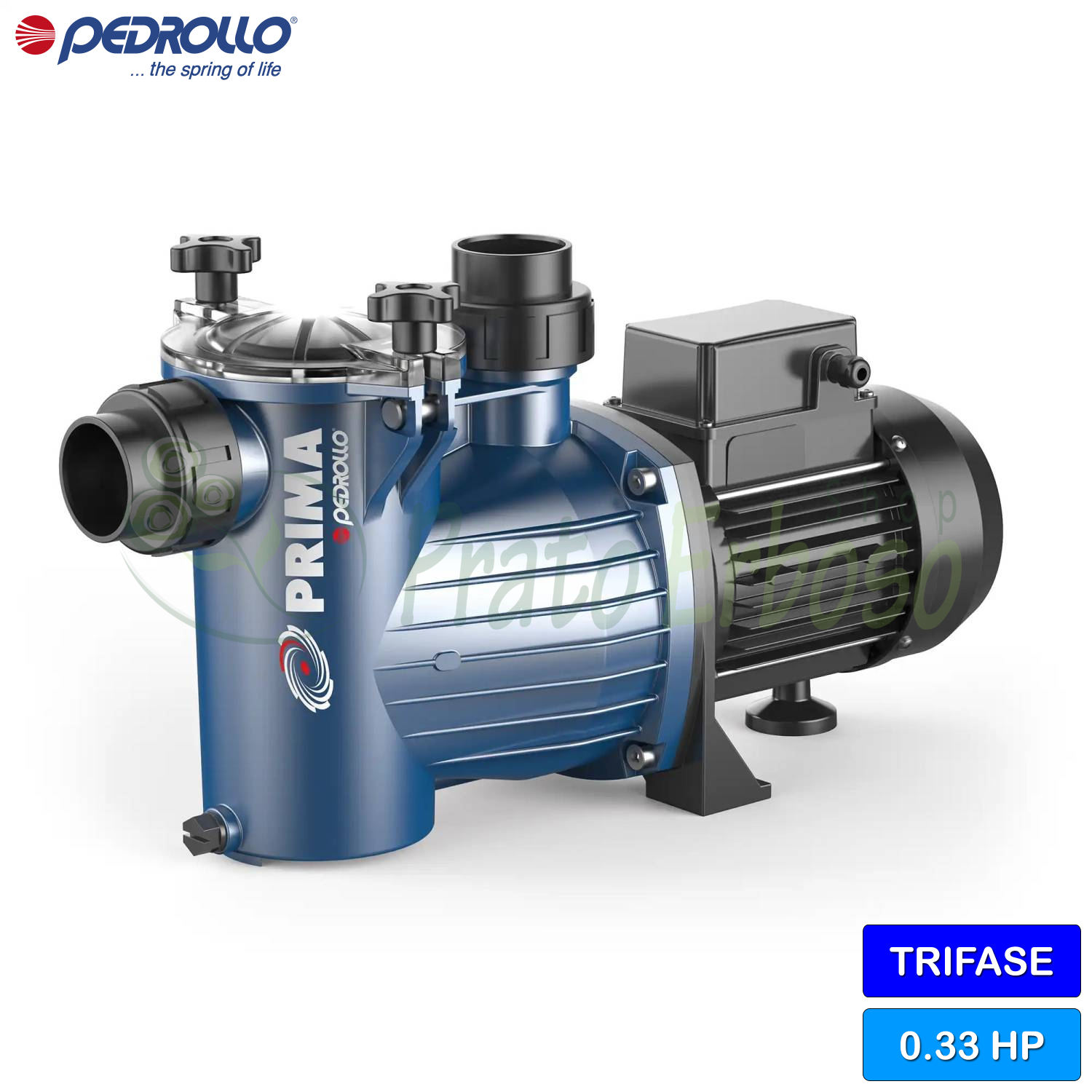

PRIMA 33 - Three-phase 0.33 HP electric pool pump
Flow rate up to 190 l/min (11.4 m³/h). Head up to 10.3 m. 0.25 Kw (0.33 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The PRIMA 33 self-priming electric pump by Pedrollo is recommended for water circulation in residential swimming pools up to 70 cubic metres in size.
The pump has the advantage of being resistant to heat and chemical corrosion, thanks to the fact that the motor casing is painted using the cataphoresis technique.
It has good robustness and is also particularly quiet.
Equipped with a pre-filter complete with transparent lid to facilitate visual inspection and an extra large filter basket that allows for a reduction in the frequency of cleaning operations.
The PRIMA 33 must be powered by a three-phase voltage, has a horsepower of 0.33 HP and the temperature of the liquid to be pumped reaches up to +40 degrees centigrade.
The flow rate ranges from 20 to 190 litres per minute and the head from 4 to 10.3 metres.
The PRIMA 33 manometric suction lift is up to 9 meters. The pump tolerates water with pH 6.5 – 8.4.
Certified IP55, the pump is safe from dust and water ingress.
- Jobs
- circulation in the pool
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.25
- Power (HP)
- 0.33
- Absorption at 230V (A)
- 1.9
- Current consumption at 400V (A)
- 1.1
- Pump body
- Polypropylene
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 190
- Min. head (m.)
- 4
- Max. head (m.)
- 10.3
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V, 400 V
- Degree of protection
- IP 55
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Height (cm)
- 27.5
- Width (cm)
- 19.7
- Depth (cm)
- 47.6
- Weight (Kg)
- 8.8
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- circulation in the pool
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.25
- Power (HP)
- 0.33
- Absorption at 230V (A)
- 1.9
- Current consumption at 400V (A)
- 1.1
Pump components and construction
- Pump body
- Polypropylene
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 190
- Min. head (m.)
- 4
- Max. head (m.)
- 10.3
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Motor voltage
- 230 V, 400 V
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 27.5
- Width (cm)
- 19.7
- Depth (cm)
- 47.6
- Weight (Kg)
- 8.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
