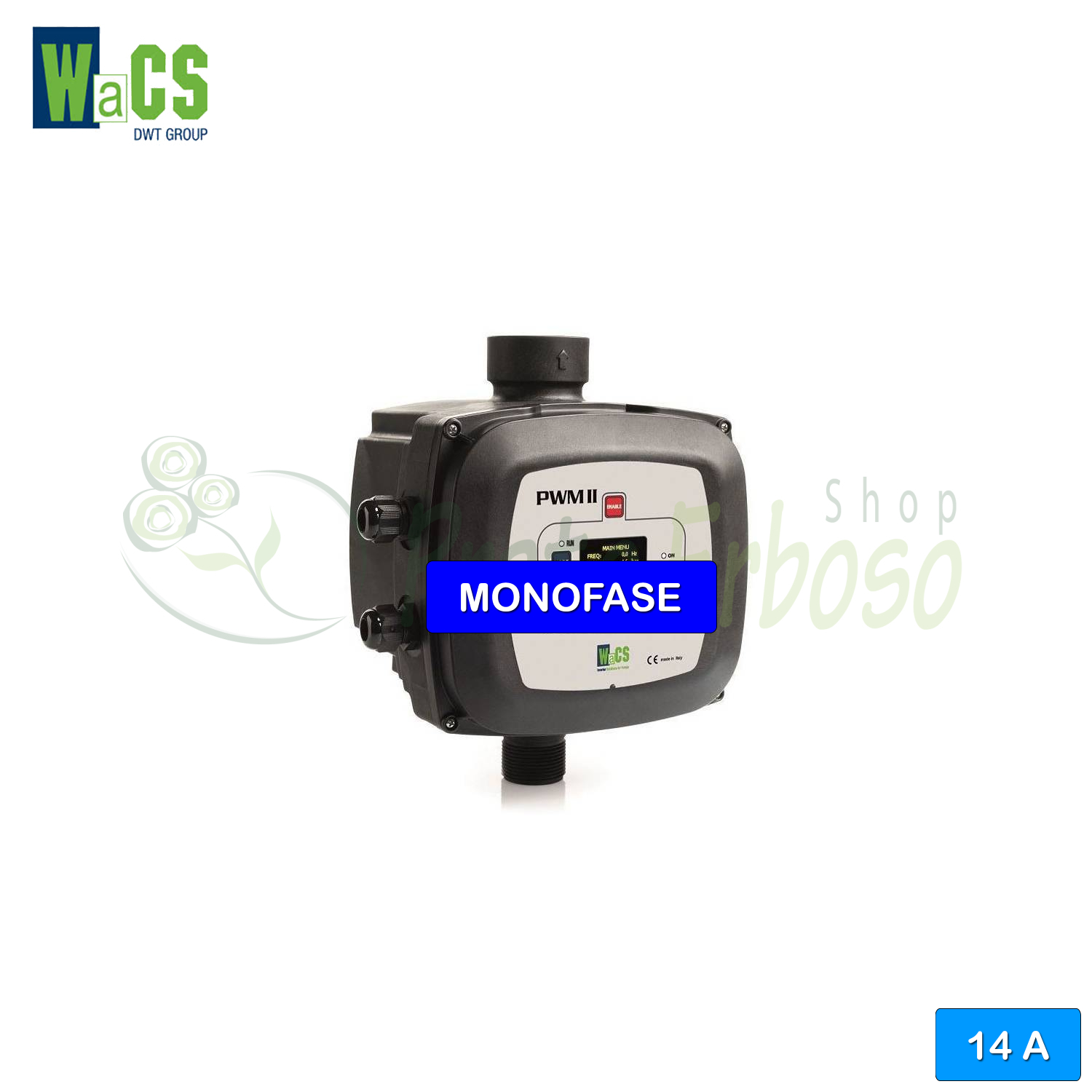

PWM II 230 1 Basic DV/14 - 14 A single-phase inverter
For single-phase pumps up to 2.5 HP. Single-phase/single-phase.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The PWM 230 1 Basic DV / 14 inverter is a static frequency converter specially developed for driving single-phase electric pumps.
Continuously regulates the rotation speed of the electric pump, so as to maintain constant pressure as the flow rate varies.
The inverter regulates the rotation speed of the electric pump, never bringing it to maximum revs.
The PWM II 230 1 Basic DV/14 always makes the pump work on the flow-head curves with the best mechanical efficiency, thus ensuring maximum life and achieving maximum energy savings.
- Power (HP)
- 2.5
- Max. flow rate (l./min.)
- 300
- Max. working pressure (bar)
- 16
- Max. liquid temperature (°C)
- 50
- Output Voltage (Volts)
- 1 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 14
- Motor phase frequency (Hz)
- 50, 60
- Degree of protection
- IP 55
- Overcurrent protection
- No
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Weight (Kg)
- 3.7
- Warranty (years)
- 2
Engine and mechanical performance
- Power (HP)
- 2.5
Hydraulic performance and filtration
- Max. flow rate (l./min.)
- 300
- Max. working pressure (bar)
- 16
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 50
Power supply and electrical parameters
- Output Voltage (Volts)
- 1 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 14
- Motor phase frequency (Hz)
- 50, 60
Safety and protection
- Degree of protection
- IP 55
- Overcurrent protection
- No
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Weight (Kg)
- 3.7
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Compare with Similar Products
 PWM II 230 1 Basic DV/14 - 14 A single-phase inverterThis product For single-phase pumps up to 2.5 HP. Single-phase/single-phase. |  Active Driver Plus M/M 1.8 - 14 A single-phase inverter For single-phase pumps up to 2.5 HP. Single-phase/single-phase. |  STEADYPRES MM 16 - 16 A single-phase inverter For single-phase pumps up to 3 HP. Single-phase/single-phase. | |
|---|---|---|---|
| Price | Price €735.66 | Price €750.00 | Price €900.36 -42% €522.21 |
| Power (HP) | Power (HP) 2.5 | Power (HP) 2.5 | Power (HP) 3 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) -- |
| Max. working pressure (bar) | Max. working pressure (bar) 16 | Max. working pressure (bar) 9 | Max. working pressure (bar) 9 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 50 | Max. liquid temperature (°C) 50 | Max. liquid temperature (°C) 55 |
| Output Voltage (Volts) | Output Voltage (Volts) 1 x 230 | Output Voltage (Volts) 1 x 230 | Output Voltage (Volts) 1 x 230 |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 14 | Motor Phase Current (Amperes) 14 | Motor Phase Current (Amperes) 16 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Overcurrent protection | Overcurrent protection No | Overcurrent protection Yes | Overcurrent protection Yes |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" |
| Height (cm) | Height (cm) 28.2 | Height (cm) 28.2 | Height (cm) 23.5 |
| Width (cm) | Width (cm) 23.7 | Width (cm) 23.7 | Width (cm) 27.9 |
| Depth (cm) | Depth (cm) 18.4 | Depth (cm) 18.4 | Depth (cm) 24.1 |
| Weight (Kg) | Weight (Kg) 3.7 | Weight (Kg) 3.5 | Weight (Kg) 4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
