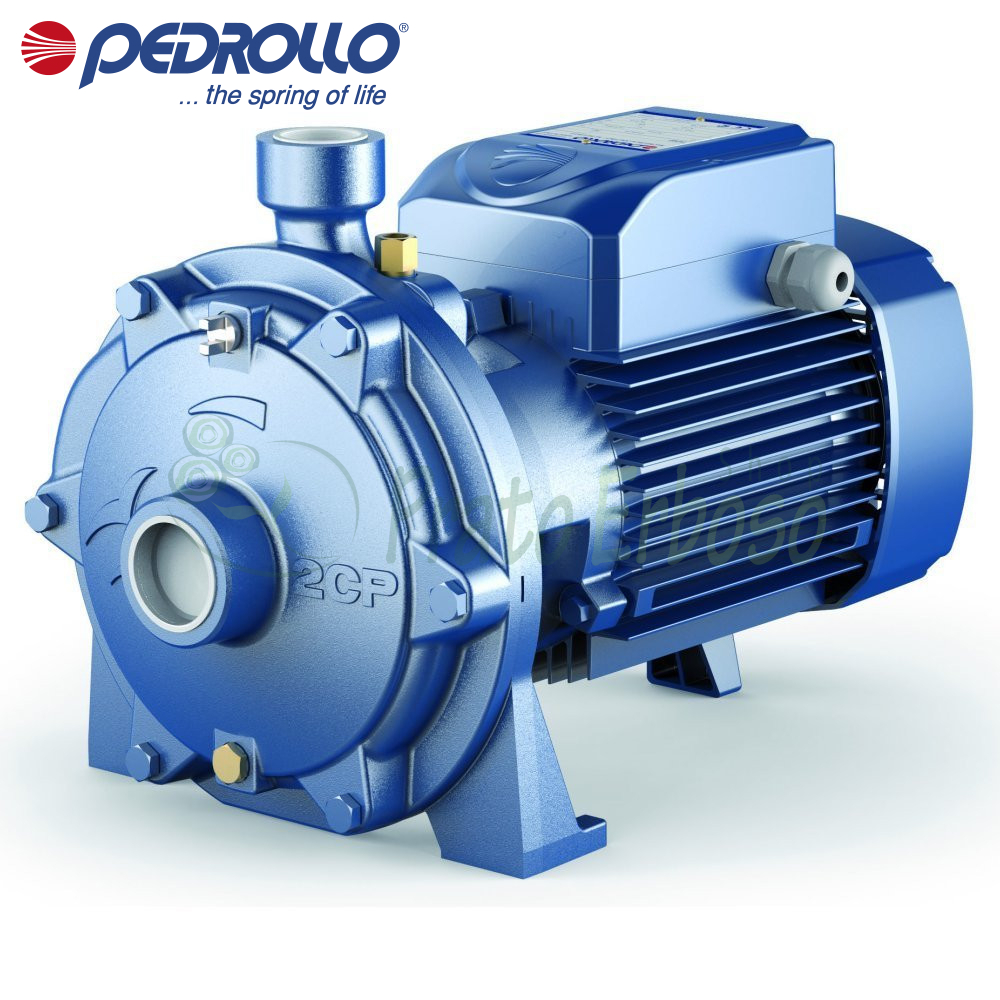

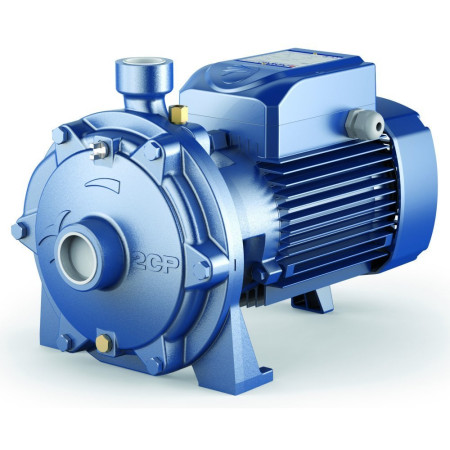

2CP 40/180C - 5.5 HP three-phase twin-impeller centrifugal pump OFFER
Description
The 2CP 40/180C twin-impeller centrifugal electric pump from the CP series by Pedrollo is recommended for use in the domestic, civil and industrial sectors.
It can pump clean water and liquids that are chemically non-aggressive for the components.
The CP 40/180C guarantees high performance and adaptability to the most varied uses.
Suitable for various fields and is particularly useful for water distribution in conjunction with pressure tanks, for increasing network pressure and for fire-fighting units.
The flow rate ranges from 100 to 350 litres and the head from 35 to 65 metres.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Absorption at 230V (A)
- 17
- Current consumption at 400V (A)
- 9.8
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 2
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 35
- Max. head (m.)
- 65
- Jobs
- water supply, pressurization systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 33.4
- Width (cm)
- 29.2
- Depth (cm)
- 49.6
- Weight (Kg)
- 49
- Warranty (years)
- 2
