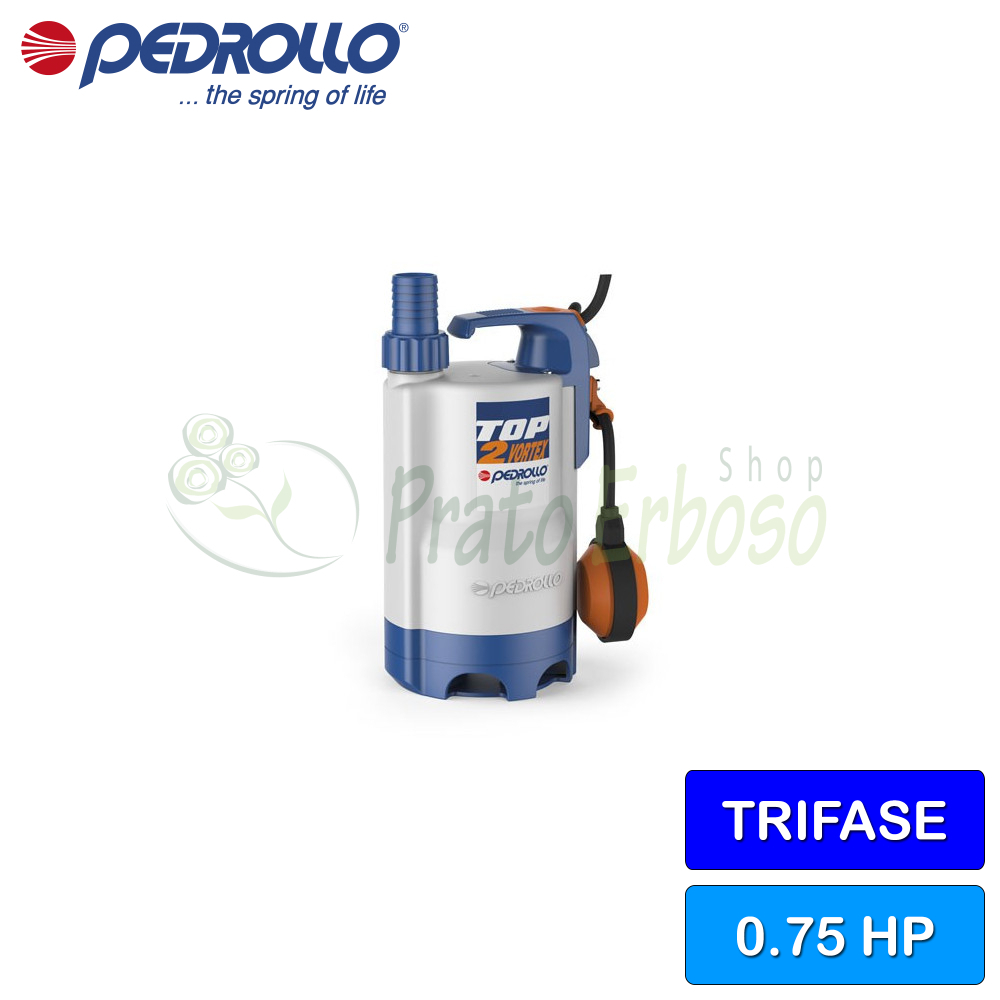

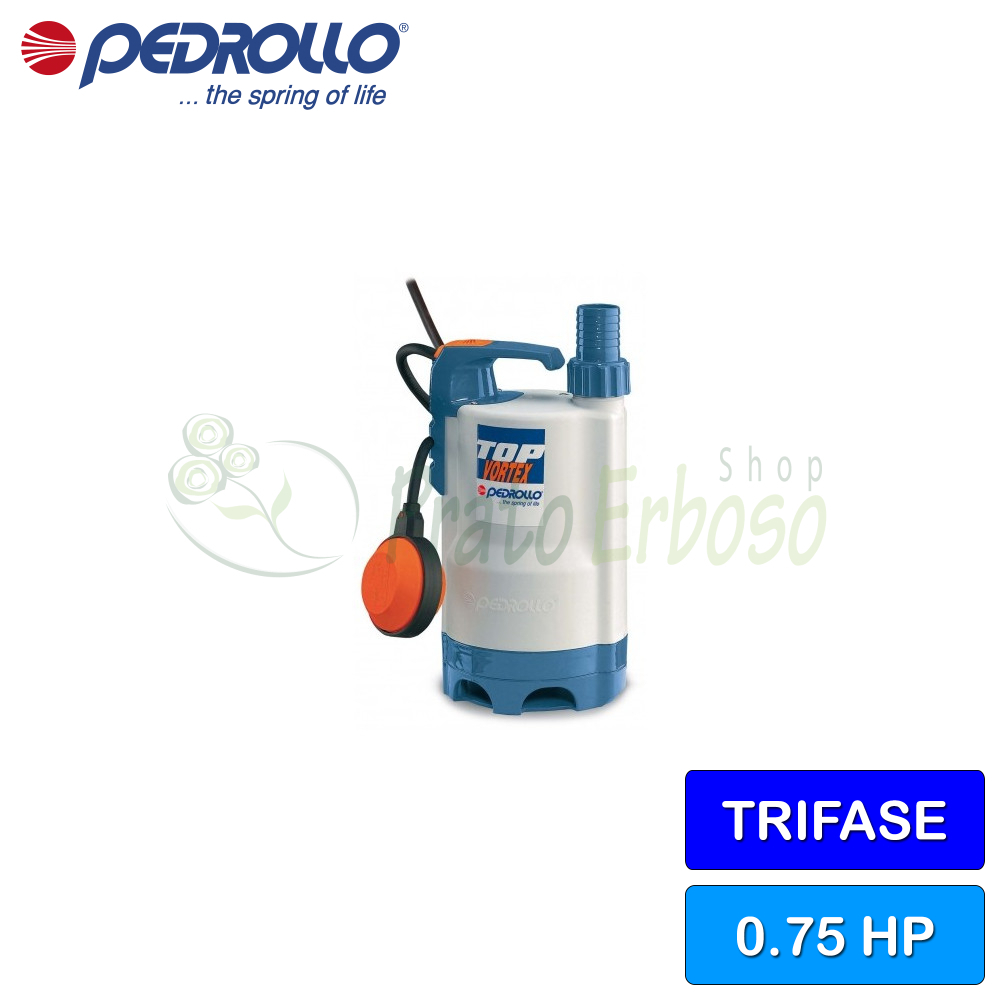

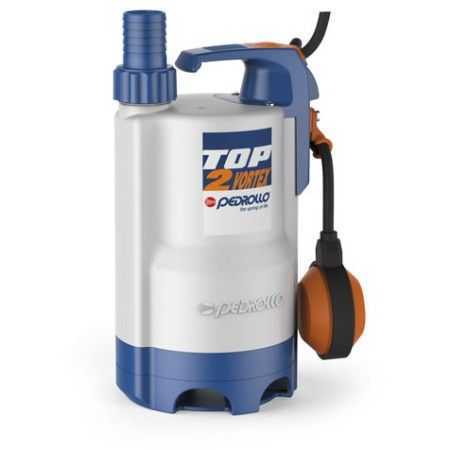

TOP 3 - VORTEX (10m) - 0.75 HP electric drainage pump for dirty water OFFER
Flow rate up to 170 l/min (10.2 m³/h). Head up to 8.7 m. 0.55 kW (0.75 HP) motor. 10-meter cable with Schuko plug.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The TOP-VORTEX pump is suitable for draining dirty water that is not chemically aggressive towards the materials from which the pump is made.
The construction solutions employed guarantee ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft.
It is recommended for domestic use, for the evacuation of waste water, emptying tanks, domestic drains, emptying collection pits even in the presence of suspended solids up to a diameter of 20 millimetres.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 2.9
- Capacitor
- 14 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 170
- Min. head (m.)
- 2.8
- Max. head (m.)
- 8.7
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 31.8
- Width (cm)
- 15.2
- Weight (Kg)
- 6.9
- Warranty (years)
- 2
