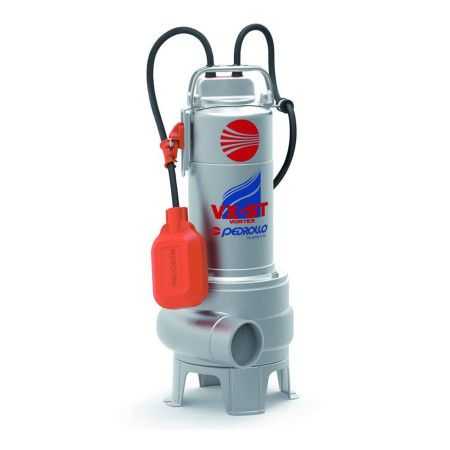

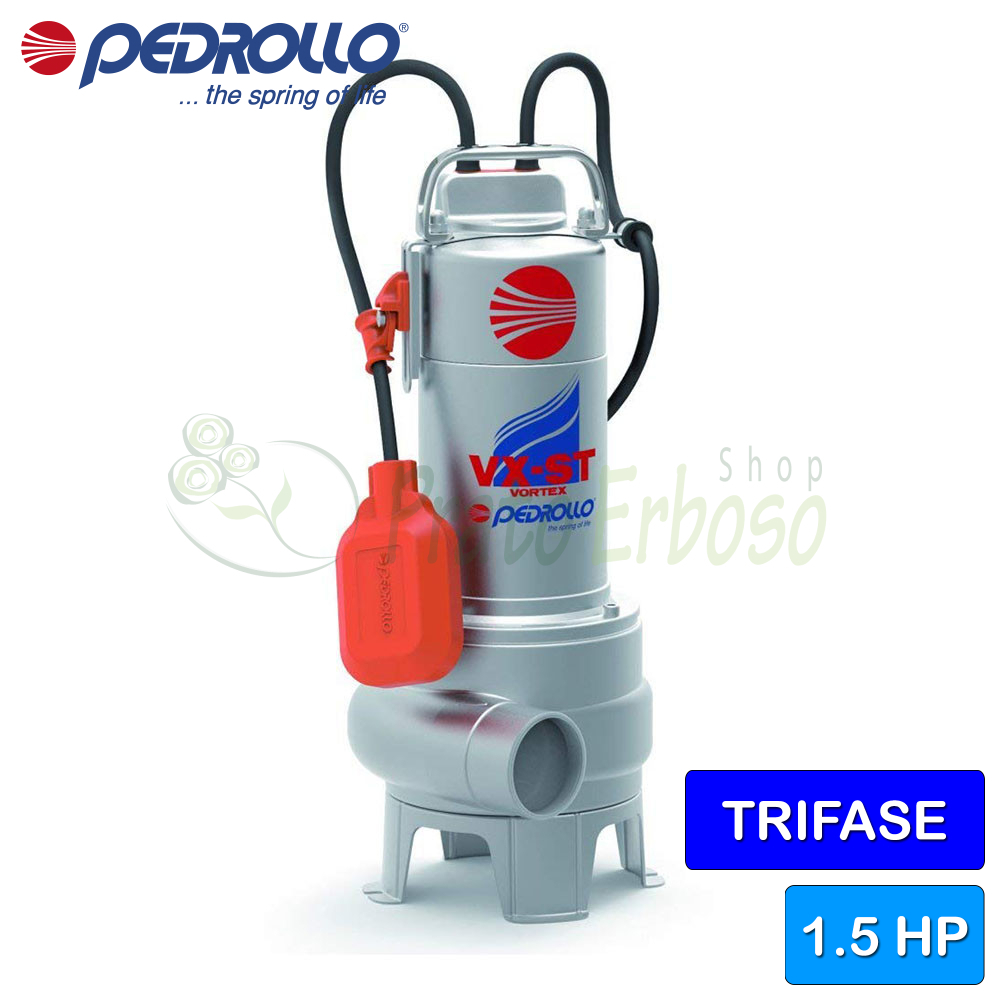

VX 15/35-ST - 1.5 HP three-phase VORTEX electric sewage pump OFFER
Flow rate up to 500 l/min (35 m³/h). Head up to 15 m. 1.1 kW (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VX-ST series pumps are recommended for the drainage of waste water in the domestic, civil and industrial sectors, in all cases where suspended solids are present in the water, for example water mixed with mud, groundwater, surface water.
Its use is recommended for draining flooded areas such as basements, underground car parks, car wash areas, for emptying cesspits and for the disposal of sewage.
The VX-ST pumps are made of stamped stainless steel, particularly robust and highly reliable, offering high performance for professional, chemical and industrial use.
These pumps stand out for their reliability in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3.0
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.1
- Weight (Kg)
- 11.9
- Warranty (years)
- 2
