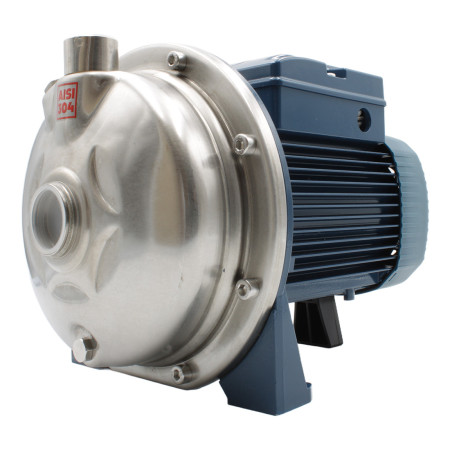

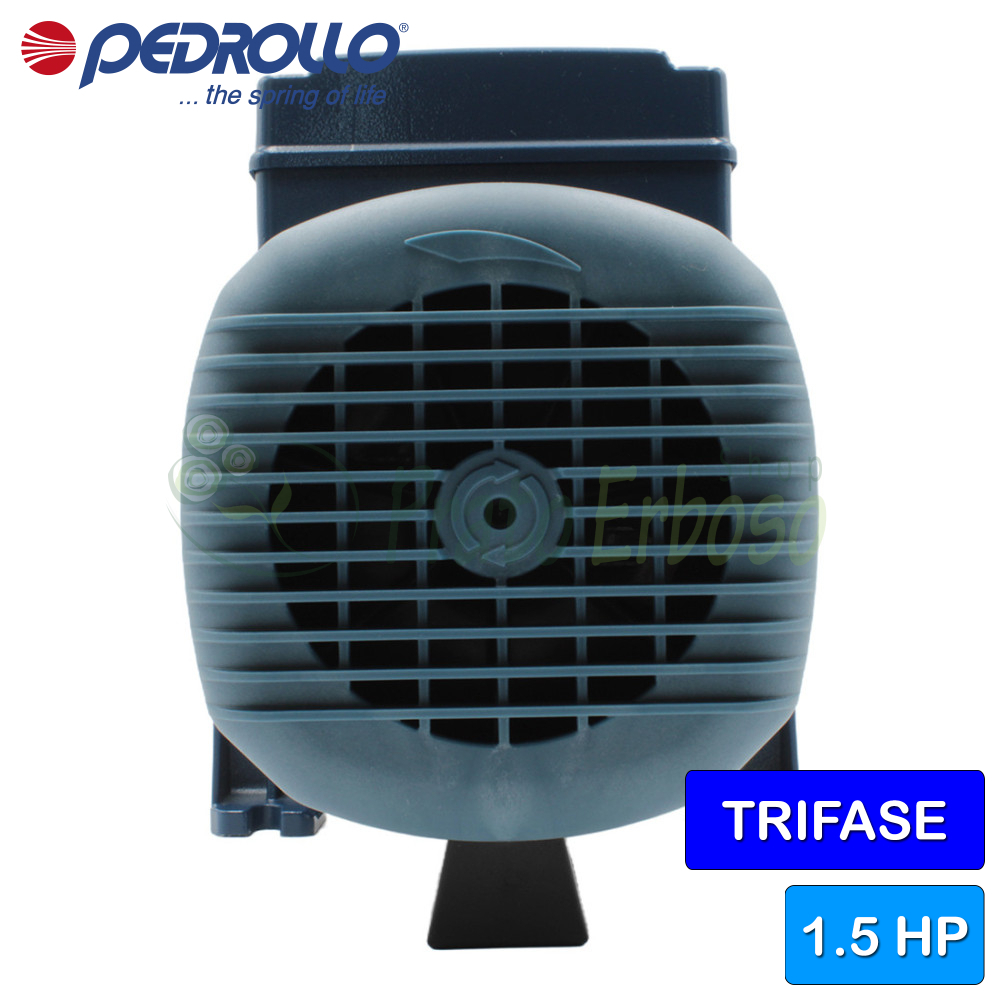

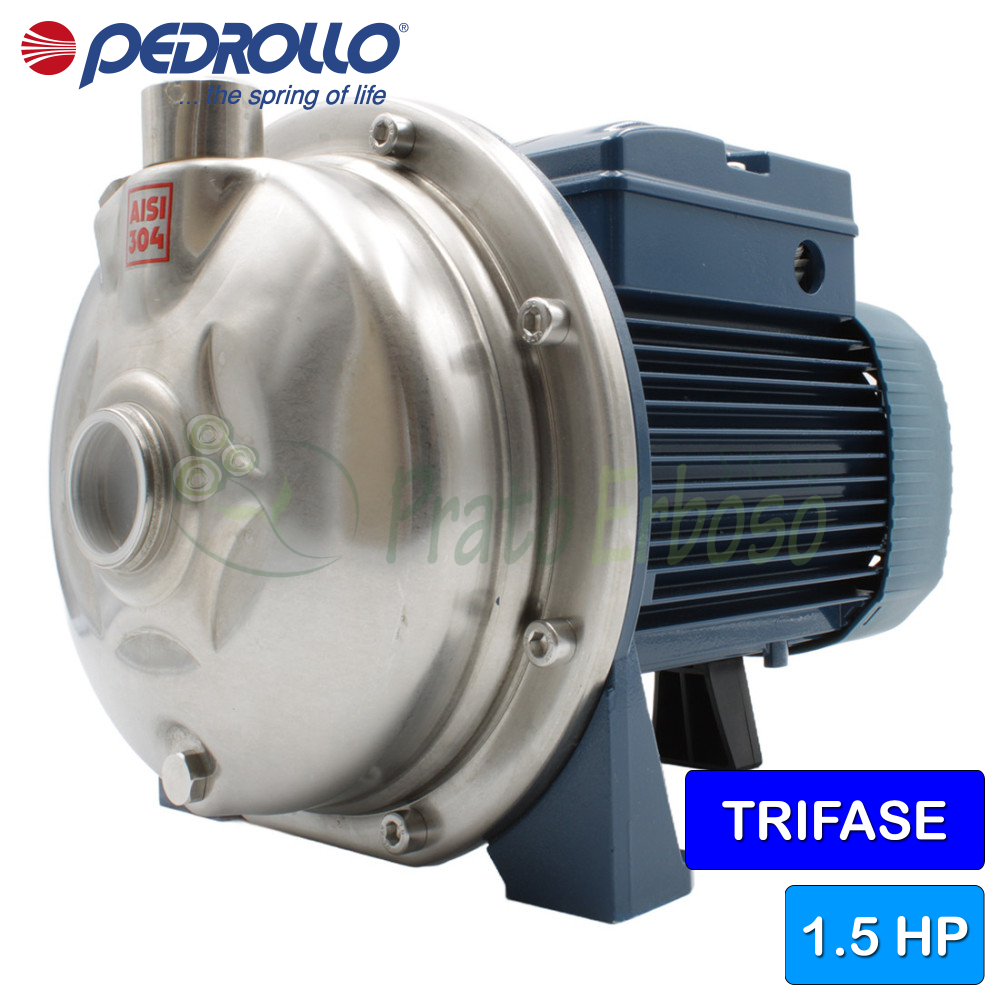

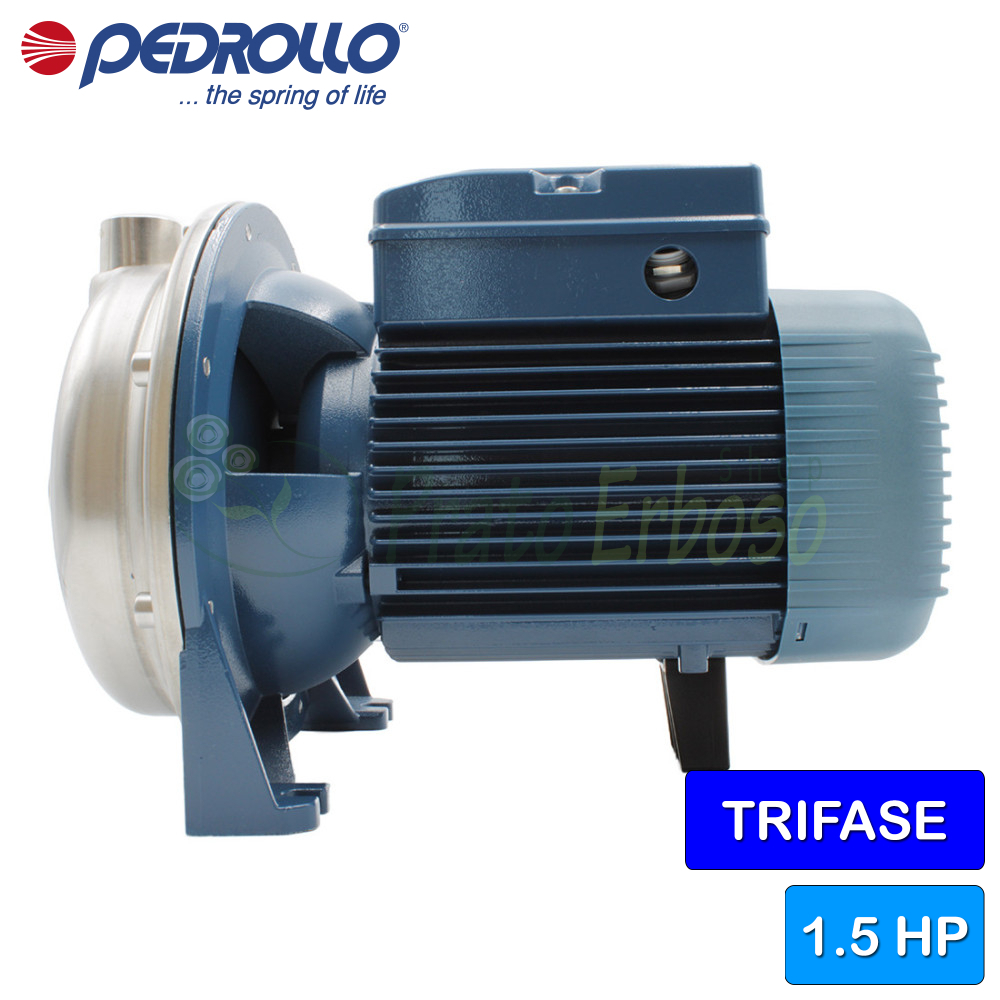

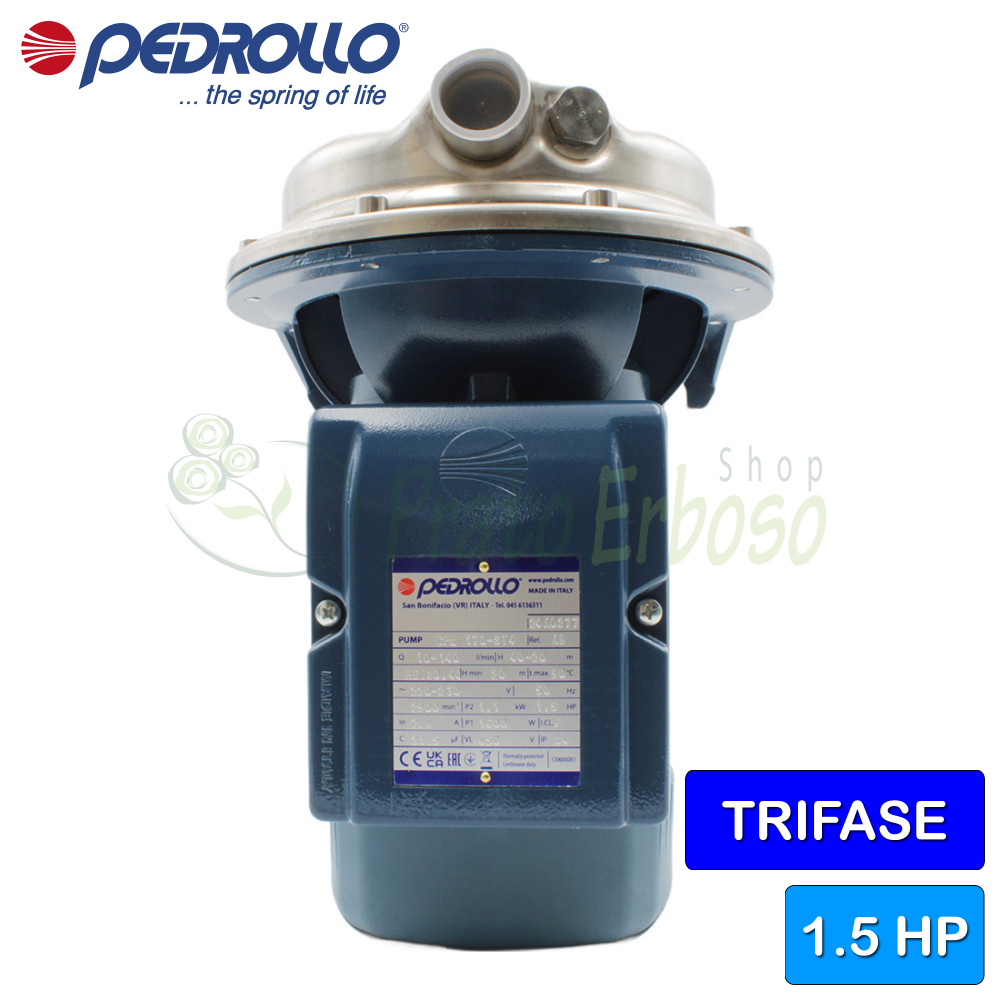

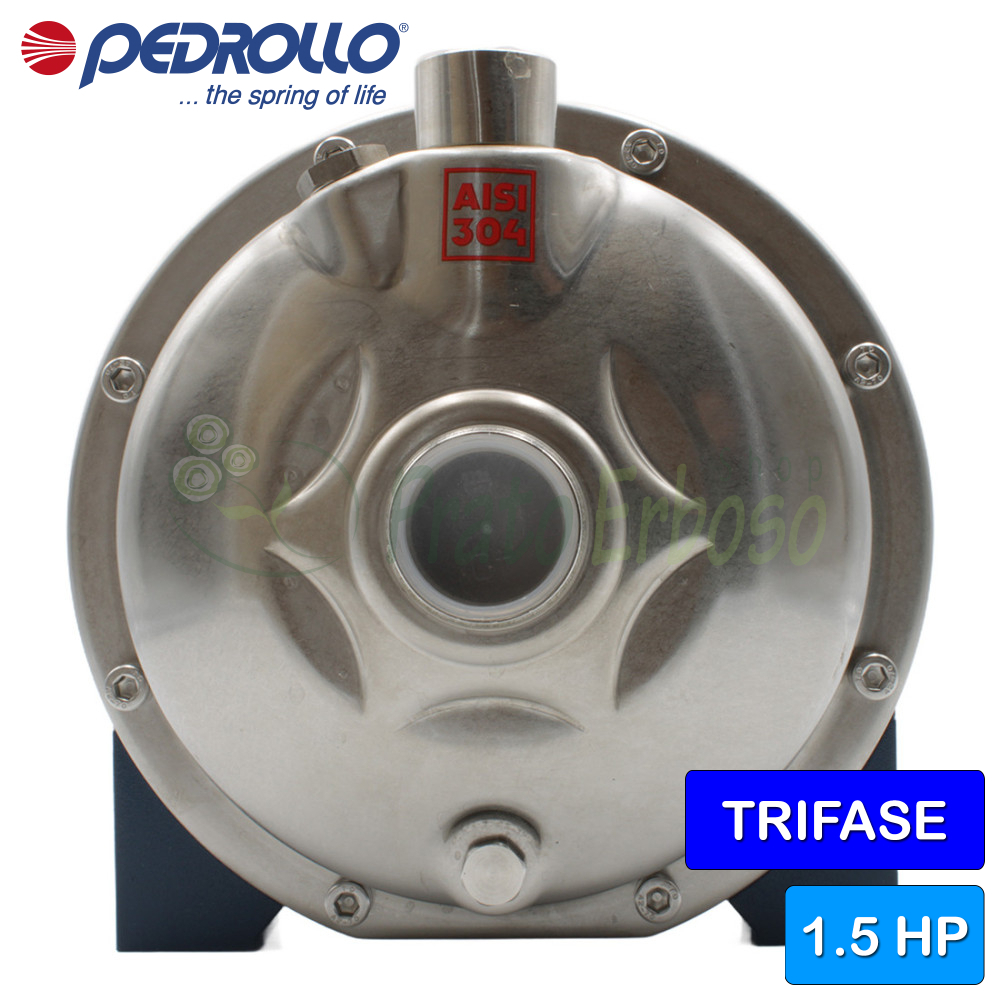

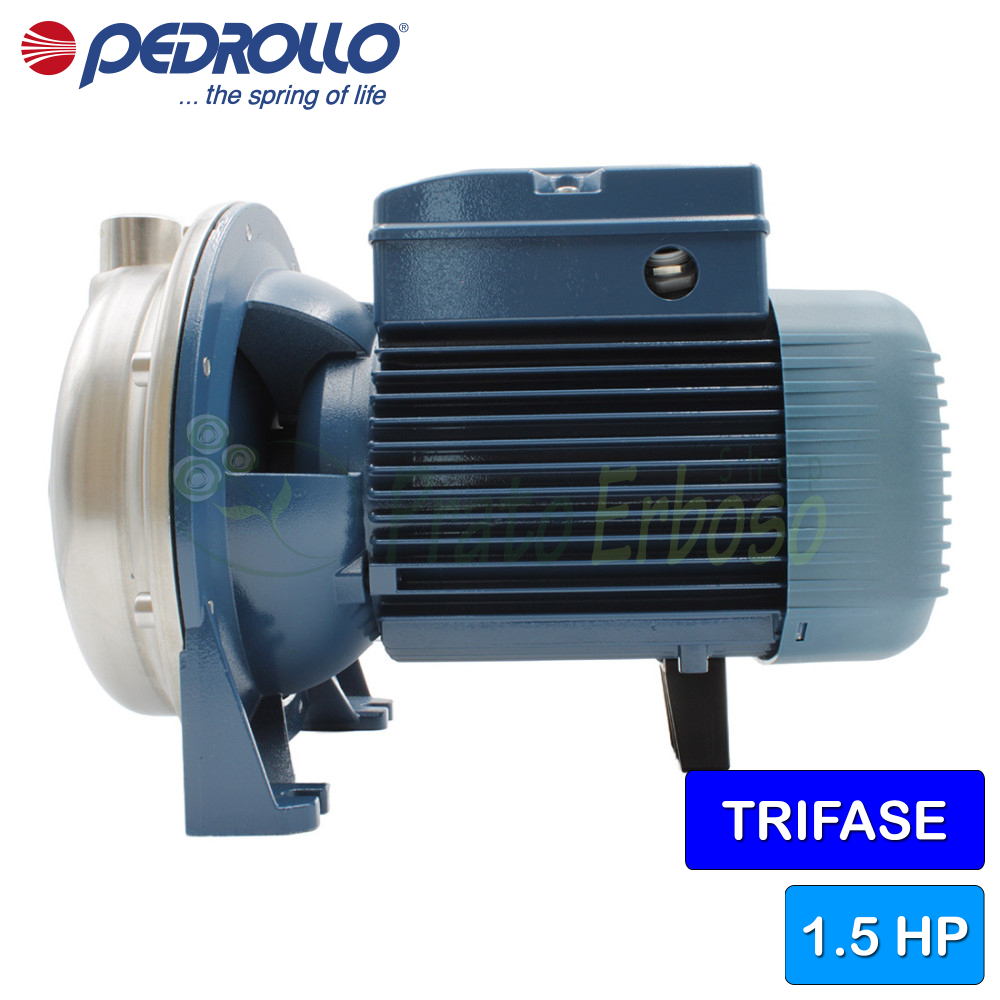

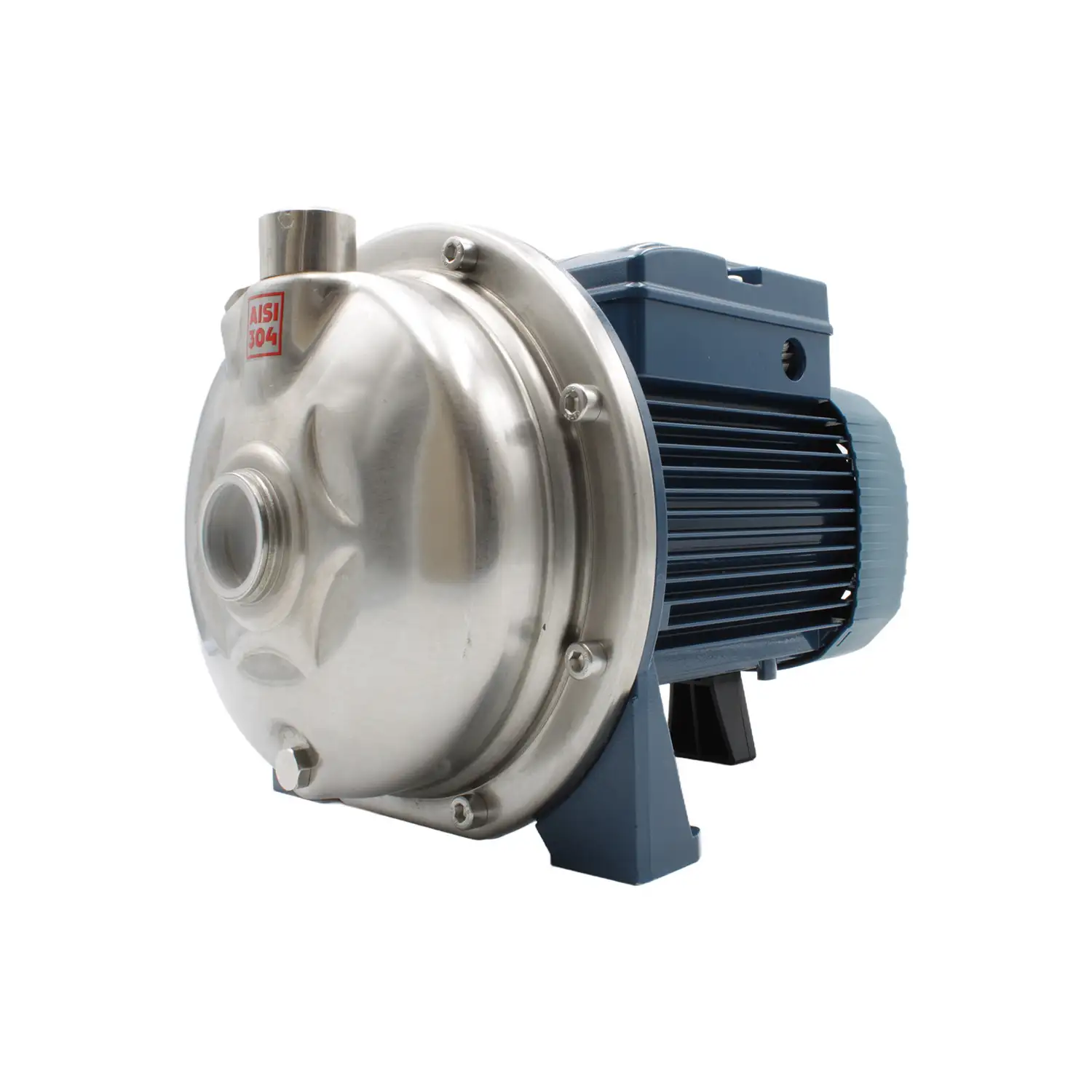

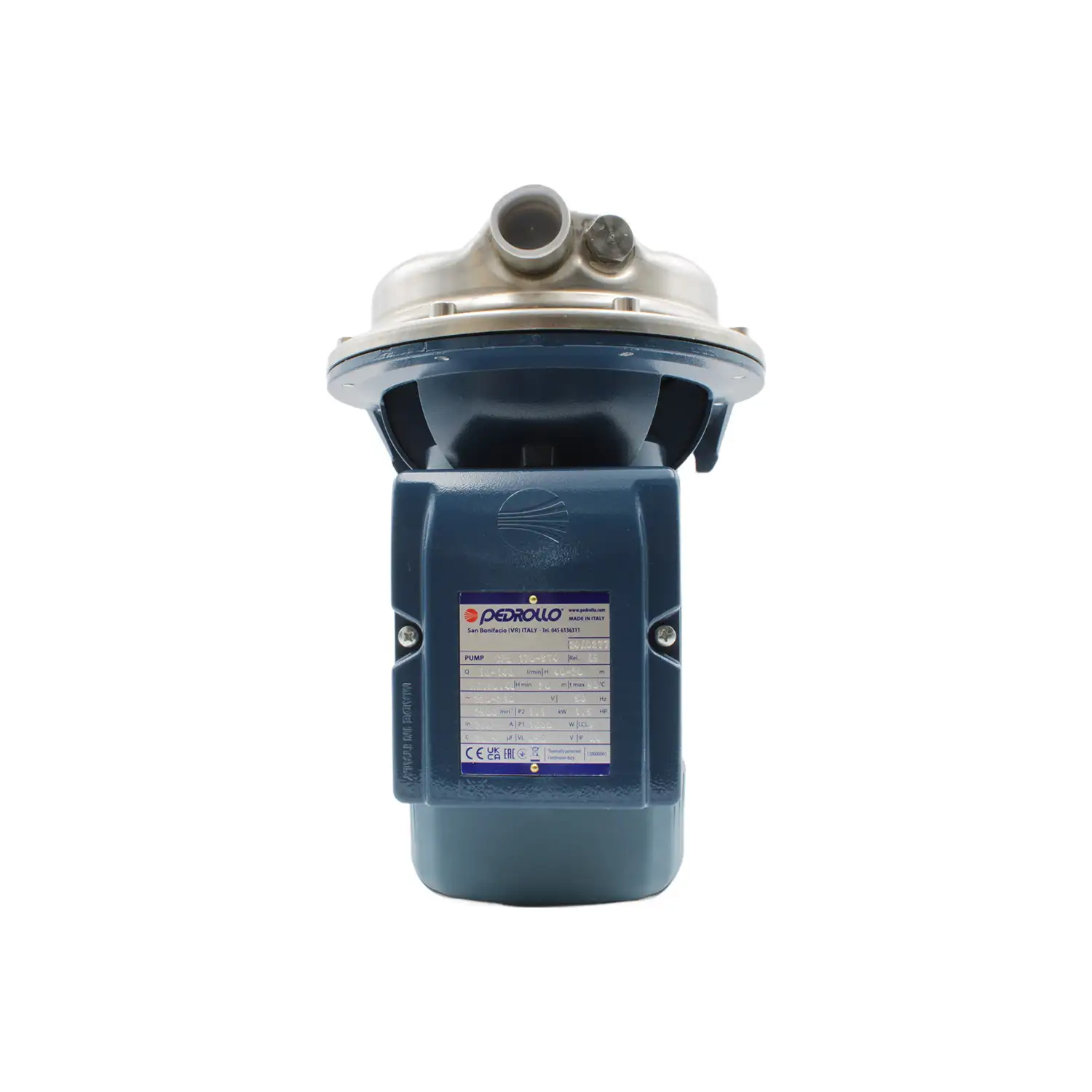

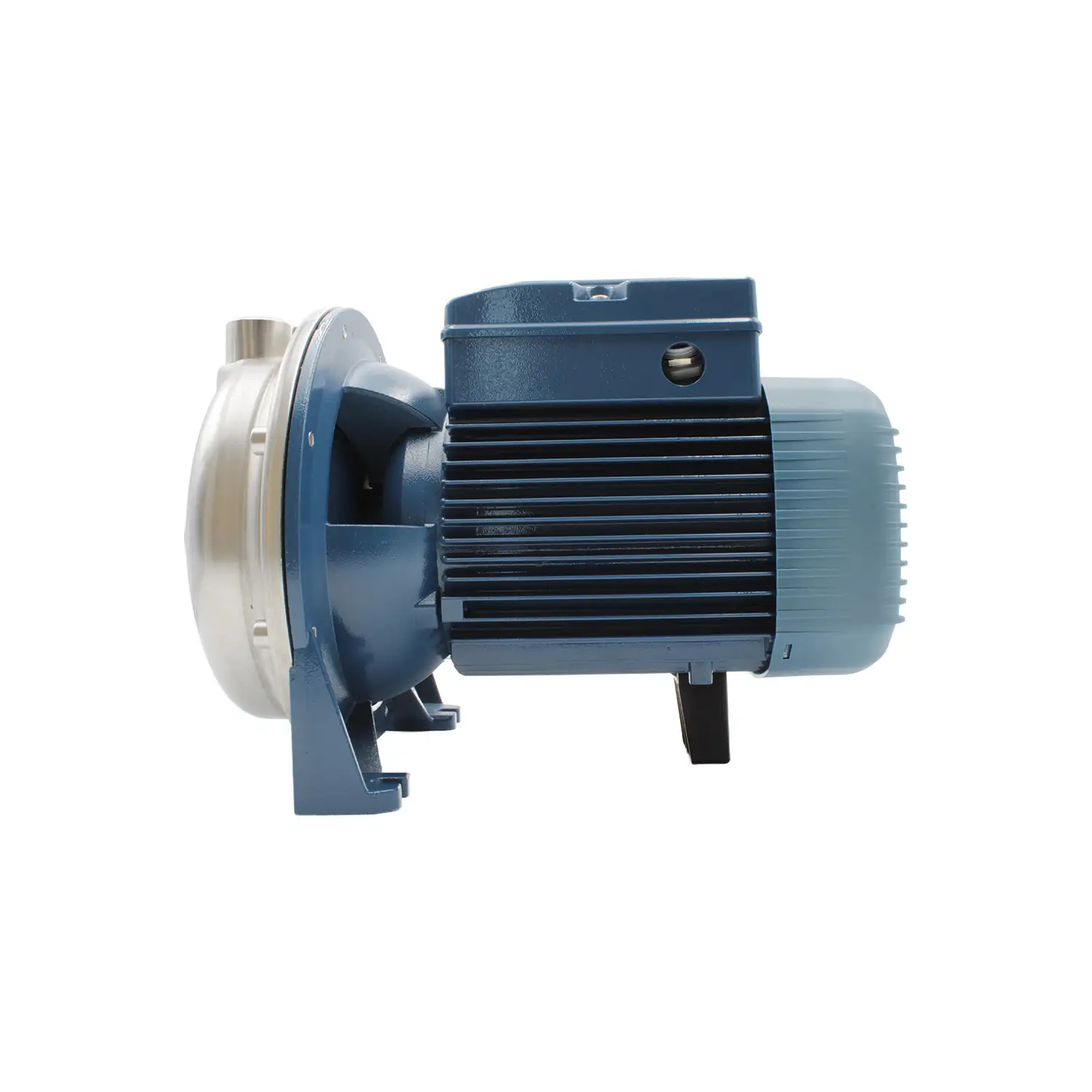

CP 170-ST4 - 1.5 HP three-phase stainless steel centrifugal electric pump
In AISI 304 stainless steel. Flow rate up to 140 l/min (8.4 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Due to its construction features, this centrifugal pump is recommended for use in the domestic, agricultural and industrial sectors.
All components in contact with the pumped liquid are made of AISI 304 or AISI 316L stainless steel to guarantee total hygiene and maximum resistance to corrosion.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 5.7
- Absorption at 400V (A)
- 3.3
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 140
- Min head (m.)
- 20
- Max head (m.)
- 40
- Employments
- water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
- Liquid temperature max. (° C)
- 90
- Height (cm)
- 23.75
- Width (cm)
- 36.8
- Depth (cm)
- 24.5
- Weight kg)
- 14.5
- Guarantee
- 2
CP-ST4 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 170-170M-180-190-200-ST4
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 CP 170-ST4 - 1.5 HP three-phase stainless steel centrifugal electric pumpThis product In AISI 304 stainless steel. Flow rate up to 140 l/min (8.4 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor. |  CP 158-ST4 - 1 HP three-phase stainless steel centrifugal electric pumpIn AISI 304 stainless steel. Flow rate up to 120 l/min (7.2 m³/h). Head up to 36.5 m. 0.75 Kw (1 HP) motor. |  CP 170M-ST4 - 1.5 HP three-phase stainless steel centrifugal electric pumpIn AISI 304 stainless steel. Flow rate up to 160 l/min (9.6 m³/h). Head up to 36.5 m. 1.1 Kw (1.5 HP) motor. |  CP 180-ST4 - 1.5 HP three-phase stainless steel centrifugal electric pumpIn AISI 304 stainless steel. Flow rate up to 230 l/min (13.8 m³/h). Head up to 31.5 m. 1.1 Kw (1.5 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) -- | Power (Kw) -- | Power (Kw) 1.1 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.7 | Absorption at 230V (A) 4.2 | Absorption at 230V (A) 5.7 | Absorption at 230V (A) 5.7 |
| Absorption at 400V (A) | Absorption at 400V (A) 3.3 | Absorption at 400V (A) 2.4 | Absorption at 400V (A) 3.3 | Absorption at 400V (A) 3.3 |
| Suction mouth | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 |
| Delivery port | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " |
| Body Pump | Body Pump AISI 304 stainless steel | Body Pump AISI 304 stainless steel | Body Pump AISI 304 stainless steel | Body Pump AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Motor shaft | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel |
| Check valve | Check valve no | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 55 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 40 |
| Max flow (l./min.) | Max flow (l./min.) 140 | Max flow (l./min.) 120 | Max flow (l./min.) 160 | Max flow (l./min.) 230 |
| Min head (m.) | Min head (m.) 20 | Min head (m.) 19 | Min head (m.) 19 | Min head (m.) 13 |
| Max head (m.) | Max head (m.) 40 | Max head (m.) 36.5 | Max head (m.) 36.5 | Max head (m.) 30 |
| Employments | Employments water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants | Employments water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants | Employments water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants | Employments water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) 90 | Liquid temperature max. (° C) +90°C | Liquid temperature max. (° C) 90 | Liquid temperature max. (° C) 90 |
| Motor voltage | Motor voltage -- | Motor voltage 230 V, 400 V | Motor voltage -- | Motor voltage 230 V, 400 V |
| Height (cm) | Height (cm) 23.75 | Height (cm) 21.9 | Height (cm) 23.75 | Height (cm) 23.75 |
| Width (cm) | Width (cm) 36.8 | Width (cm) 29.6 | Width (cm) 36.8 | Width (cm) 36.8 |
| Depth (cm) | Depth (cm) 24.5 | Depth (cm) 22.1 | Depth (cm) 24.5 | Depth (cm) 24.5 |
| Weight kg) | Weight kg) 14.5 | Weight kg) 10.8 | Weight kg) 14.5 | Weight kg) 15.8 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee -- |
