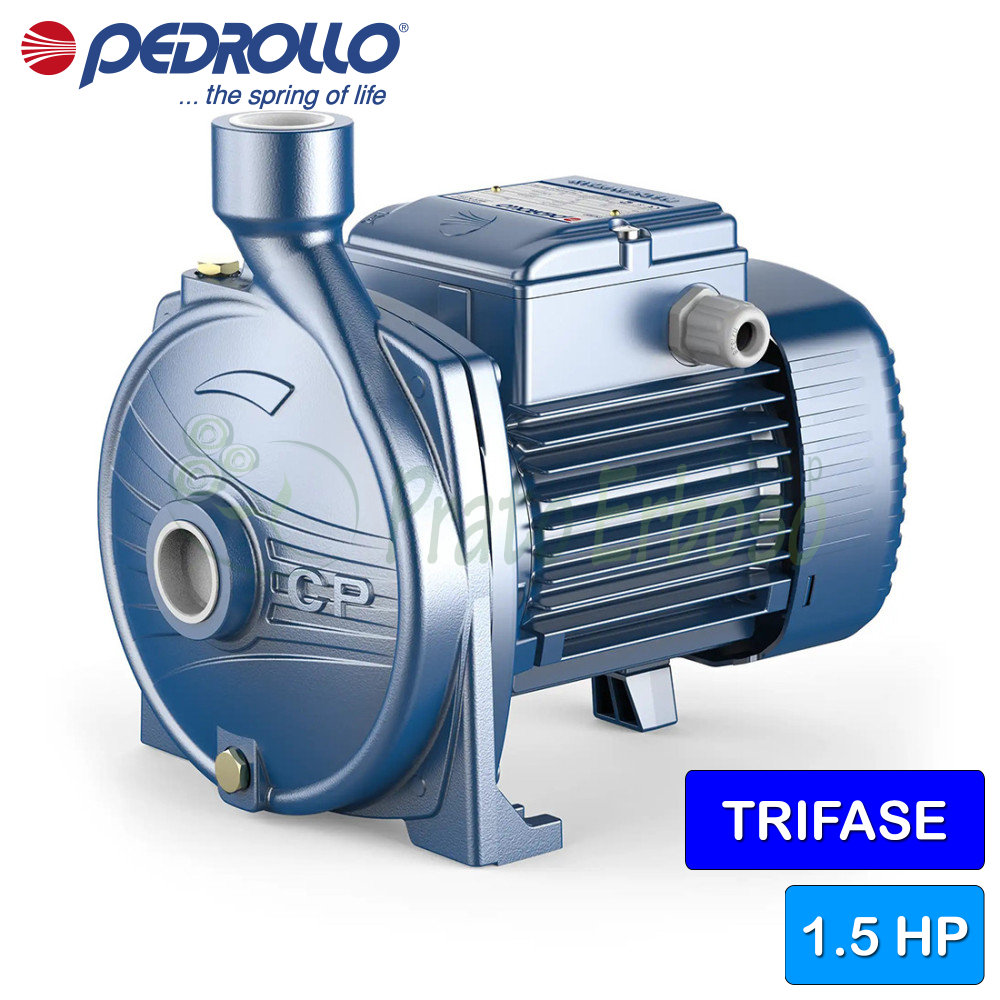

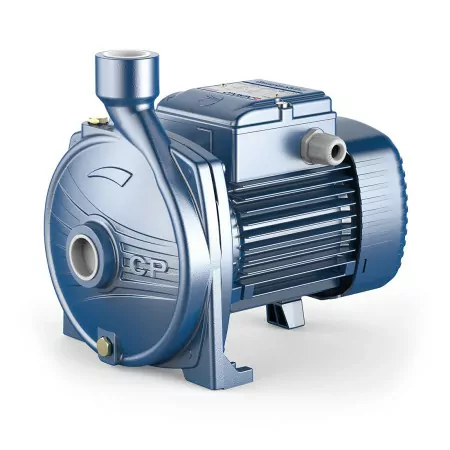

CP 170 - 1.5 HP three-phase centrifugal electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor.
Variants:
Buy it now and receive it between 31-12-2024 and 01-01-2025 with SDA - 2 giorni Italia
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.
Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 5.2
- Absorption at 400V (A)
- 3.0
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 30
- Max flow (l./min.)
- 120
- Min head (m.)
- 22
- Max head (m.)
- 41
- Employments
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
- Liquid temperature max. (° C)
- 90
- Motor voltage
- 400 V
- Height (cm)
- 26
- Width (cm)
- 20.6
- Depth (cm)
- 36.7
- Weight kg)
- 17.8
- Guarantee
- 2
CP models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 170-170M
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 CP 170 - 1.5 HP three-phase centrifugal electric pumpThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor. |  CP 158 - 1 HP three-phase centrifugal electric pumpFlow rate up to 90 l/min (5.4 m³/h). Head up to 36 m. 0.75 Kw (1 HP) motor. |  CP 170M - 1.5 HP three-phase centrifugal electric pumpFlow rate up to 160 l/min (9.6 m³/h). Head up to 36 m. 1.1 Kw (1.5 HP) motor. |  CP 190 - 2 HP three-phase centrifugal electric pumpFlow rate up to 140 l/min (8.4 m³/h). Head up to 48 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.2 | Absorption at 230V (A) 4.4 | Absorption at 230V (A) 5.2 | Absorption at 230V (A) 7.5 |
| Absorption at 400V (A) | Absorption at 400V (A) 3.0 | Absorption at 400V (A) 2.5 | Absorption at 400V (A) 3.0 | Absorption at 400V (A) 4.3 |
| Suction mouth | Suction mouth 1 "1/4 | Suction mouth 1 " | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 |
| Delivery port | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Motor shaft | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve no | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 55 | Degree of protection IP 44 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 30 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 30 | Flow rate min. (l./min.) 30 |
| Max flow (l./min.) | Max flow (l./min.) 120 | Max flow (l./min.) 90 | Max flow (l./min.) 160 | Max flow (l./min.) 140 |
| Min head (m.) | Min head (m.) 22 | Min head (m.) 25 | Min head (m.) 19 | Min head (m.) 26 |
| Max head (m.) | Max head (m.) 41 | Max head (m.) 36 | Max head (m.) 36 | Max head (m.) 48 |
| Employments | Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) 90 | Liquid temperature max. (° C) 90 | Liquid temperature max. (° C) +90°C | Liquid temperature max. (° C) 90 |
| Motor voltage | Motor voltage 400 V | Motor voltage 400 V | Motor voltage 400 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 26 | Height (cm) 24 | Height (cm) 26 | Height (cm) 29 |
| Width (cm) | Width (cm) 20.6 | Width (cm) 19 | Width (cm) 36.7 | Width (cm) 24.2 |
| Depth (cm) | Depth (cm) 36.7 | Depth (cm) 28.5 | Depth (cm) 20.6 | Depth (cm) 36.4 |
| Weight kg) | Weight kg) 17.8 | Weight kg) 12 | Weight kg) 17.2 | Weight kg) 21.3 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
