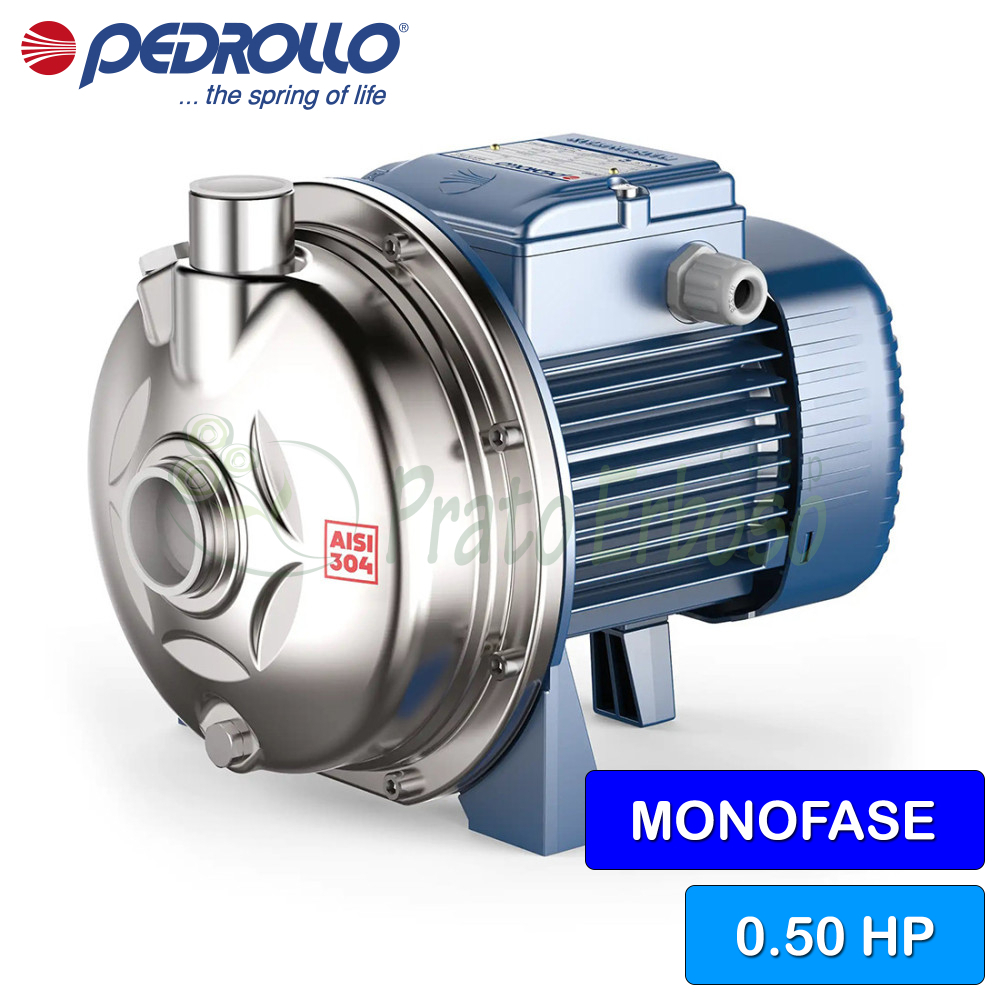

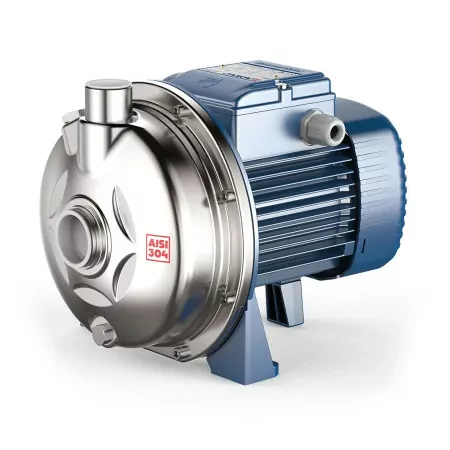

CPm 130-ST4 - Single-phase stainless steel centrifugal electric pump 0.50 HP
In AISI 304 stainless steel. Flow rate up to 100 l/min (6 m³/h). Head up to 22.5 m. 0.37 Kw (0.50 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Due to its construction features, this centrifugal pump is recommended for use in the domestic, agricultural and industrial sectors.
All components in contact with the pumped liquid are made of AISI 304 stainless steel to guarantee total hygiene and maximum resistance to corrosion.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 3
- Suction mouth
- 1 "1/4
- Delivery mouth
- 1 "
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 100
- Min. head (m.)
- 9
- Max. head (m.)
- 22.5
- Jobs
- water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 18.55
- Width (cm)
- 26.6
- Depth (cm)
- 18.1
- Weight (Kg)
- 6.5
- Warranty (years)
- 2
CPm-ST4 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 100-130-132-ST4
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 CPm 130-ST4 - Single-phase stainless steel centrifugal electric pump 0.50 HPThis product In AISI 304 stainless steel. Flow rate up to 100 l/min (6 m³/h). Head up to 22.5 m. 0.37 Kw (0.50 HP) motor. |  CPm 100-ST4 - Single-phase stainless steel centrifugal electric pump 0.33 HPIn AISI 304 stainless steel. Flow rate up to 90 l/min (5.4 m³/h). Head up to 16 m. 0.25 Kw (0.33 HP) motor. |  CPm 132-ST4 - Single-phase stainless steel centrifugal electric pump 0.75 HPIn AISI 304 stainless steel. Flow rate up to 120 l/min (7.2 m³/h). Head up to 24 m. 0.55 Kw (0.75 HP) motor. |  CPm 150-ST4 - Single-phase 1 HP stainless steel centrifugal electric pumpIn AISI 304 stainless steel. Flow rate up to 150 l/min (9 m³/h). Head up to 32 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (HP) | Power (HP) 0.50 | Power (HP) 0.33 | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 3 | Absorption at 230V (A) 2 | Absorption at 230V (A) 3.7 | Absorption at 230V (A) 6 |
| Capacitor | Capacitor -- | Capacitor -- | Capacitor 14 µF450 VL | Capacitor 20 µF450 VL |
| Suction mouth | Suction mouth 1 "1/4 | Suction mouth -- | Suction mouth 1/4 " | Suction mouth 1 "1/4 |
| Delivery mouth | Delivery mouth 1 " | Delivery mouth -- | Delivery mouth 1 " | Delivery mouth 1 " |
| Pump body | Pump body AISI 304 stainless steel | Pump body -- | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 316L stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers -- | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft -- | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve -- | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection -- | Degree of protection IP 44 | Degree of protection IP 44 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 100 | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 150 |
| Min. head (m.) | Min. head (m.) 9 | Min. head (m.) 6.5 | Min. head (m.) 12 | Min. head (m.) 14 |
| Max. head (m.) | Max. head (m.) 22.5 | Max. head (m.) 16 | Max. head (m.) 24 | Max. head (m.) 32 |
| Jobs | Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants | Jobs -- | Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants | Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) 90 |
| Motor voltage | Motor voltage 230 V | Motor voltage -- | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 18.55 | Height (cm) 18.5 | Height (cm) 18.55 | Height (cm) 21.9 |
| Width (cm) | Width (cm) 26.6 | Width (cm) 26.6 | Width (cm) 26.6 | Width (cm) 29.6 |
| Depth (cm) | Depth (cm) 18.1 | Depth (cm) 18.1 | Depth (cm) 18.1 | Depth (cm) 22.1 |
| Weight (Kg) | Weight (Kg) 6.5 | Weight (Kg) 5.7 | Weight (Kg) 7.2 | Weight (Kg) 10.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) -- | Warranty (years) 2 | Warranty (years) 2 |
