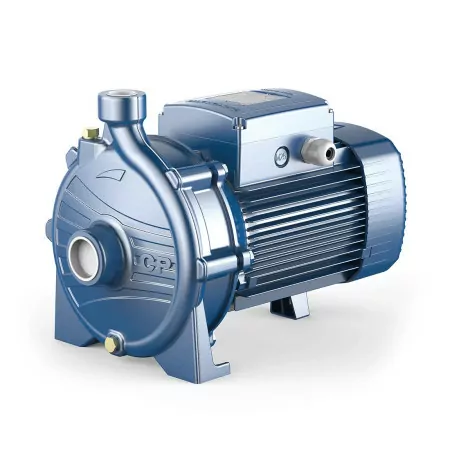

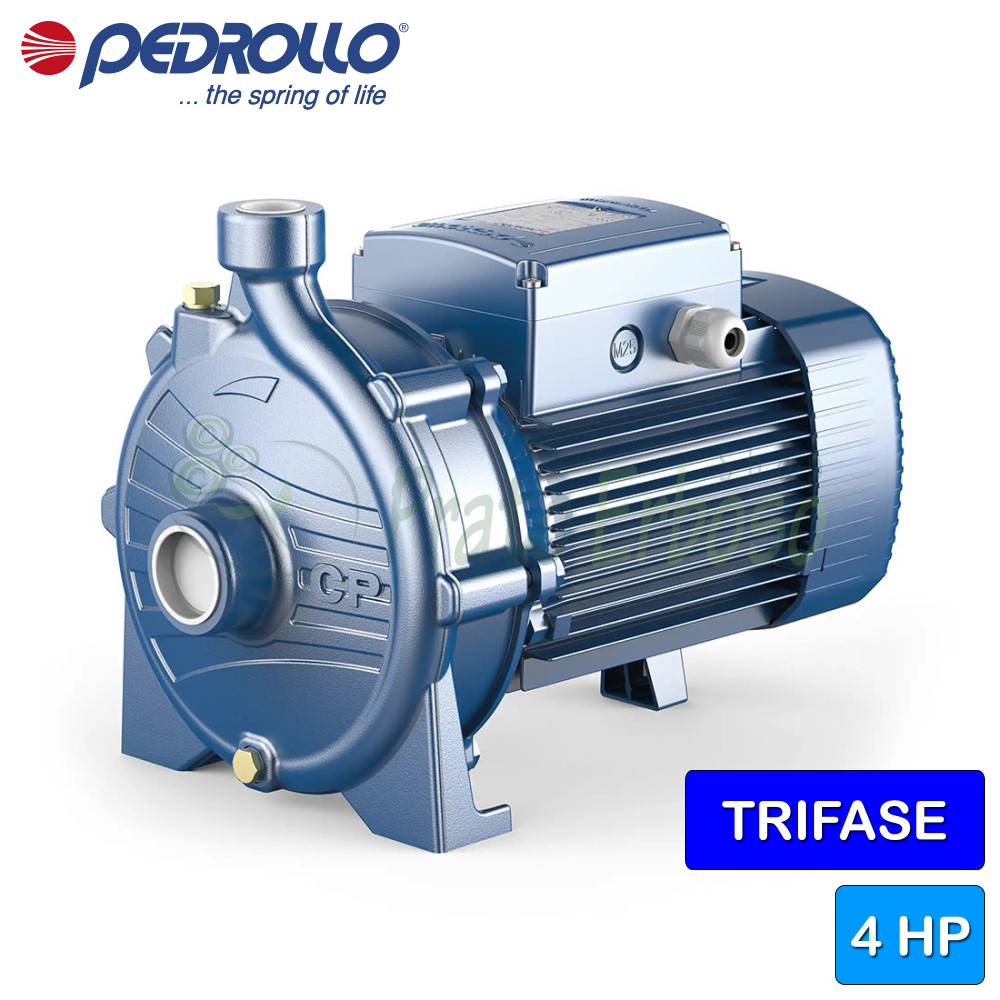

CP 220B - 4 HP three-phase centrifugal electric pump

Name: CP 220B - 4 HP three-phase centrifugal electric pump
Brand: Pedrollo
SKU: CP 220B
Price: 620.57 EUR
Availability: InStock

Flow rate up to 550 l/min (27 m³/h). Head up to 38 m. 3 Kw (4 HP) motor.

Variants:

Order it before 12:00 of today and receive it between Monday 19 May and Tuesday 20 May with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Monday 19 May - Tuesday 20 May
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Monday 19 May - Tuesday 20 May
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Monday 19 May - Tuesday 20 May
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 May - Friday 23 May

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 19 May - Tuesday 20 May

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Monday 19 May - Tuesday 20 May

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 19 May - Tuesday 20 May

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 May - Friday 23 May

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.

Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 3
Power (HP): 4
Absorption at 230V (A): 12.6
Absorption at 400V (A): 7.3
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 55
Min. flow rate (l./min.): 50
Max. flow rate (l./min.): 550
Min. head (m.): 18
Max. head (m.): 38
Jobs: water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
Max. liquid temperature (°C): 90
Motor voltage: 400V
Height (cm): 31.5
Width (cm): 44.1
Depth (cm): 23
Weight (Kg): 36.2
Warranty (years): 2

Attachments

CP 11Kw data sheet

Models, performance curves and construction features of the Pedrollo pumps of the CP 11Kw series.

Download (976.67KB)

CP 220 models and performances

GUY

single phase

CP 220C

CP 220B

CP 220A

CP 220AH

POWER
KW	HP
2.2	3
3	4
4	5.5
5.5	7.5

PERFORMANCE
Q litres/min	H meters
50 ÷ 550	34 ÷ 14
50 ÷ 550	38 ÷ 18
50 ÷ 600	49 ÷ 25
50 ÷ 600	54.5 ÷ 33

MOUTH
wait.	send.
2"	2"

Q	m³/hour	0	3	6	12	18	24	30	33	36
Q	l/min	0	50	100	200	300	400	500	550	600
H	meters	34	34	33.5	32	29	24.3	17.9	14
		38	38	37.5	36	33	28.5	22	18
		49	48.5	48	46	42.5	38	32	29	25
		54.5	54.5	54	52.5	50	46	40.5	37	33

Construction data of the CP 220C-220B

Bearings

Pump side motor bearing	6206 ZZ - C3
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-20
LP diameter	20
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
