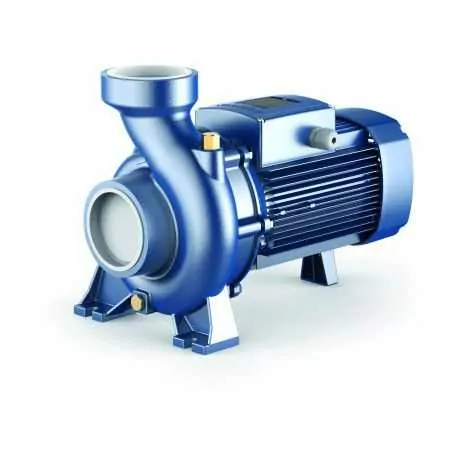

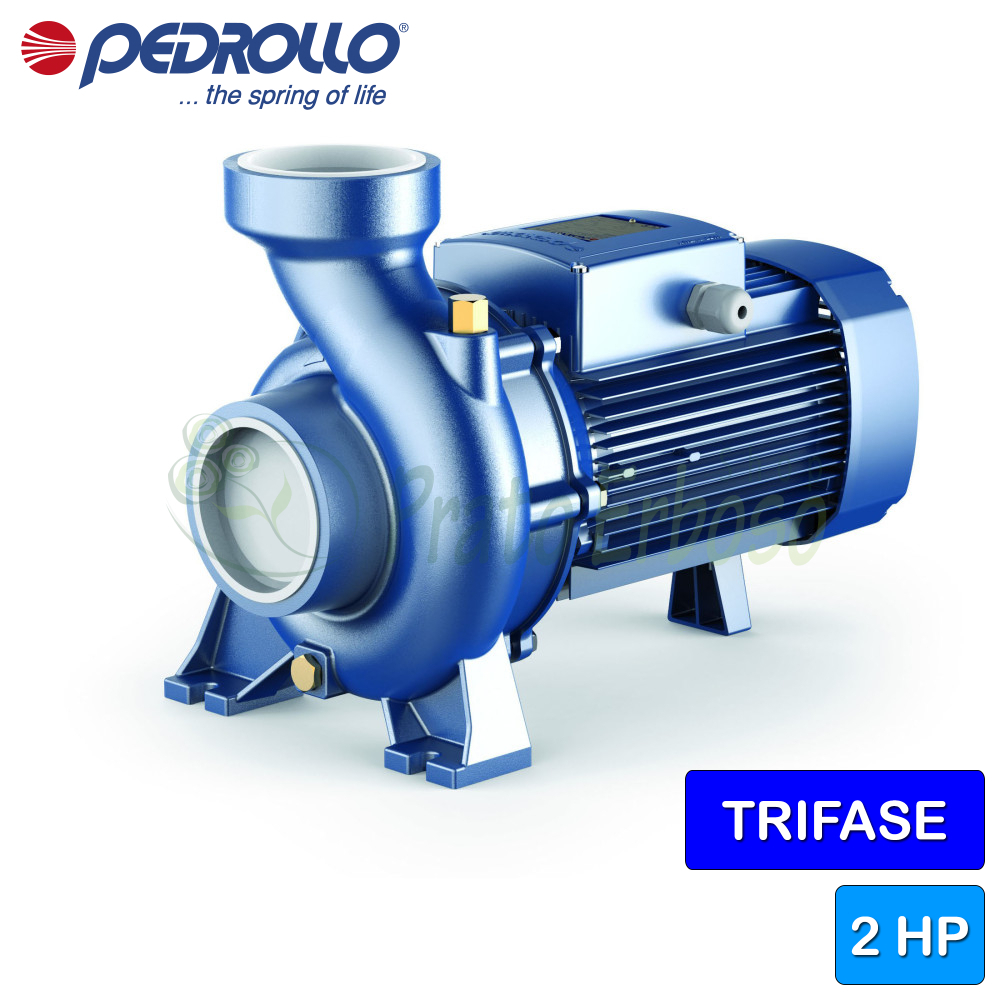

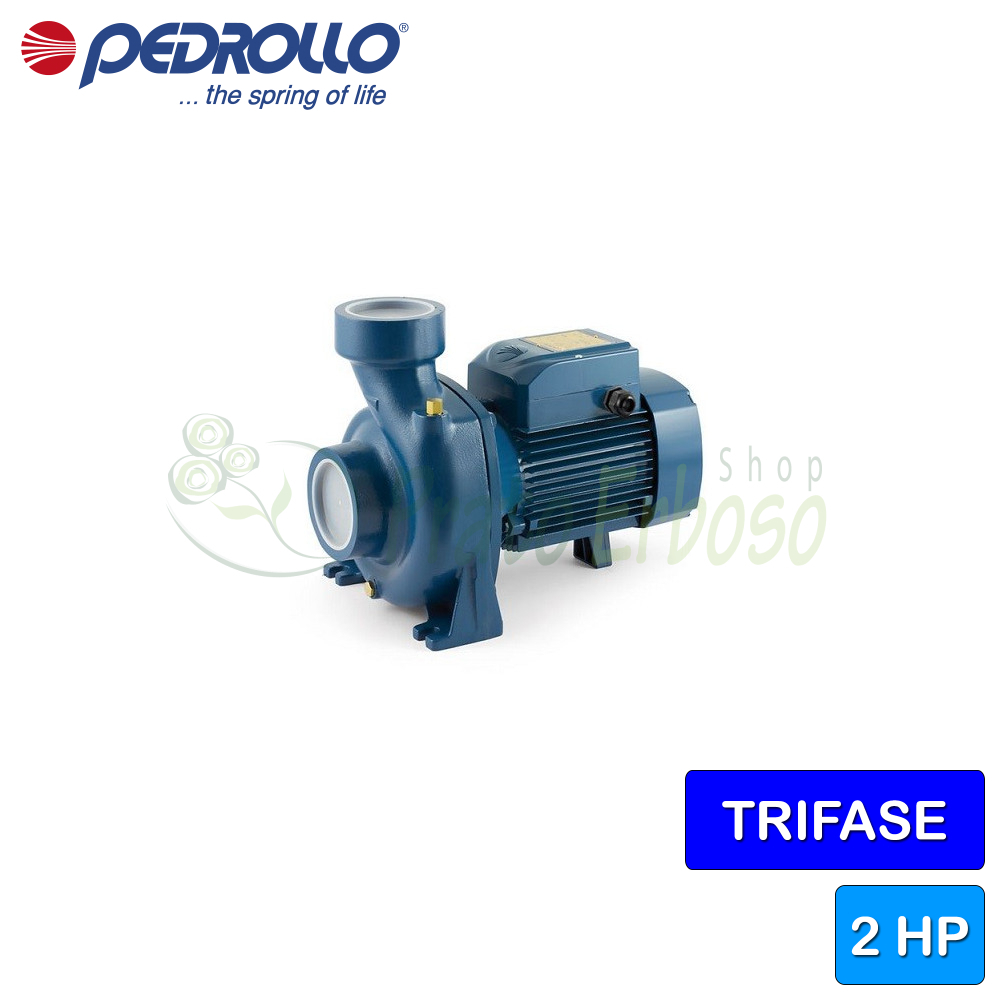

HF 6B - 2 HP three-phase centrifugal electric pump

Name: HF 6B - 2 HP three-phase centrifugal electric pump
Brand: Pedrollo
SKU: HF 6B
Price: 376.44 EUR
Availability: InStock
Rating: 4 (1 reviews)

Flow rate up to 1100 l/min (66 m³/h). Head up to 14.8 m. 1.5 Kw (2 HP) motor.

Variants:

Order it before 12:00 of today and receive it between Friday 25 April and Monday 28 April with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 25 April - Monday 28 April
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Friday 25 April - Monday 28 April
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Friday 25 April - Monday 28 April
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 30 April - Thursday 1 May

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 25 April - Monday 28 April

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 25 April - Monday 28 April

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 25 April - Monday 28 April

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 30 April - Thursday 1 May

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO pumps of the HF high flow rate line are recommended for civil and agricultural environments.

The PEDROLLO HF 6B has a flow rate that varies from 200 to 1100 litres per minute with a head from 14.8 to 5 metres.

The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.1
Power (HP): 2
Absorption at 230V (A): 7.8
Absorption at 400V (A): 4.5
Suction mouth: 3 "
Delivery mouth: 3 "
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 200
Max. flow rate (l./min.): 1100
Min. head (m.): 5
Max. head (m.): 14.8
Jobs: water supply, irrigation, cooling systems, transfer of tanks
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 31.2
Width (cm): 41.1
Depth (cm): 24
Weight (Kg): 26.8
Warranty (years): 2

Attachments

High flow HF data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo high flow HF series pumps.

Download (357.54KB)

HF models and performances - High flow rates

GUY

single phase

HF 4

HF 6C

HF 6B

HF 6A

HF 8B

HF 8A

HF 20B

HF 20A

HF 30B

HF 30A

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
2.2	3
3	4
4	5.5
3	4
4	5.5
5.5	7.5
7.5	10

PERFORMANCE
Q litres/min	H meters
200 ÷ 800	9.8 ÷ 4
200 ÷ 1000	12 ÷ 4
200 ÷ 1100	14.8 ÷ 5
200 ÷ 1200	18.5 ÷ 6
200 ÷ 1200	21.5 ÷ 9
200 ÷ 1200	24.5 ÷ 13
400 ÷ 1700	19 ÷ 7
400 ÷ 1700	21.5 ÷ 10
600 ÷ 2400	18 ÷ 10
600 ÷ 2400	23 ÷ 15

MOUTH
wait.	send.
2 1/2"	2 1/2"
3"	3"
4"	4"

Q	m³/hour	0	12	18	24	30	36	42	48	54	60	66	72	87	102	114	129	144
Q	l/min	0	200	300	400	500	600	700	800	900	1000	1100	1200	1450	1700	1900	2150	2400
H	meters	9.8	9.5	9.1	8.5	7.6	6.6	5.4	4
		12	12	11.8	11.4	10.8	10	8.9	7.6	6	4
		14.8	14.8	14.6	14.2	13.6	12.8	11.8	10.5	9	7.2	5
		18.5	18.1	17.8	17.4	16.8	16	14.9	13.7	12.2	10.4	8.4	6
		21.5	21.5	21.4	21.1	20.7	20	19.1	17.8	16.2	14.3	11.9	9
		24.5	24.5	24.4	24.1	23.6	23	22.1	21	19.5	17.7	15.6	13
		19	-	-	19	18.8	18.4	18	17.5	16.8	16.1	15.2	14.2	11	7
		21.5	-	-	21.5	21.3	20.9	20.5	19.9	19.2	18.5	17.6	16.6	13.7	1O
		18	-	-	-	-	18	17.9	17.9	17.8	17.6	17.4	17.2	16.4	15.3	14.2	12.3	10
		23	-	-	-	-	23	22.9	22.9	22.8	22.6	22.4	22.2	21.4	20.4	19.2	17.3	15

Construction data of the HF 6C-6B-6A

Section of the Pedrollo HF high flow pump

Bearings

Pump side motor bearing	6304 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
