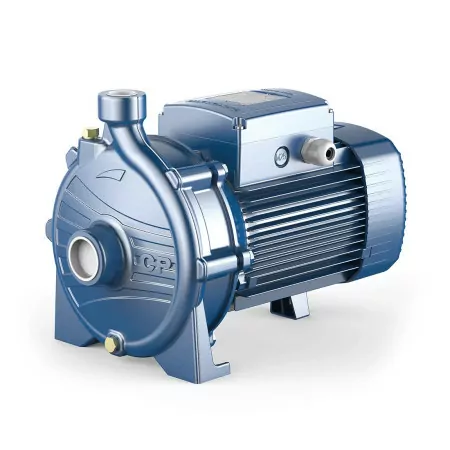

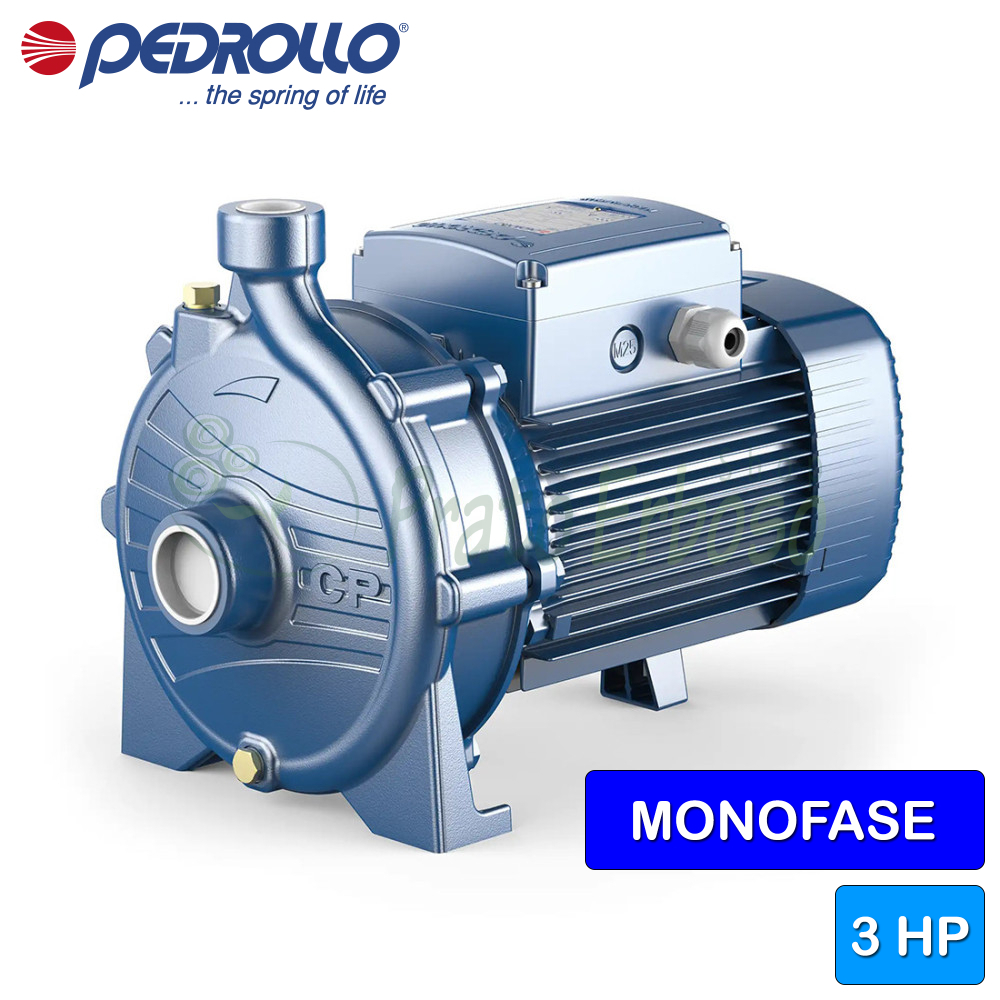

CPm 160A - 3 HP single-phase centrifugal electric pump
Flow rate up to 240 l/min (14.4 m³/h). Head up to 43 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 29 June - Tuesday 30 June |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 29 June - Tuesday 30 June |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 2 July - Monday 6 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 29 June - Tuesday 30 June
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 29 June - Tuesday 30 June
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 2 July - Monday 6 July
The CPm 160A electric pump from Pedrollo 's CP series is simple and reliable.
Robustly constructed, the electric pump is made from materials such as cast iron and stainless steel to ensure strength and durability.
Installation is recommended indoors or in places protected from the elements.
The flow rate ranges from 50 to a maximum of 240 litres per minute and the range from 26 to 43 metres.
The maximum pressure that the pump body can support is 10 bar .
The CPm 160A is recommended for residential, agricultural, and industrial use. It is particularly suited for water supply, air conditioning and cooling systems, and irrigation.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 14.5
- Capacitor
- 70 µF 450 VL
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 26
- Max. head (m.)
- 43
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 30.5
- Width (cm)
- 40.2
- Depth (cm)
- 25.2
- Weight (Kg)
- 29
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6206 ZZ - C3 |
| Opposite side motor bearing | 6205 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-24 |
| LP diameter | 24 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
-
- -45%
€1,040.05 tax incl. €1,891.00
Compare with Similar Products
 CPm 160A - 3 HP single-phase centrifugal electric pumpThis product Flow rate up to 240 l/min (14.4 m³/h). Head up to 43 m. 2.2 Kw (3 HP) motor. |  CPm 200-ST4 - 3 HP single-phase stainless steel centrifugal electric pump Made of AISI 304 stainless steel. Flow rate up to 270 l/min (16.2 m³/h). Head up to 45 m. 2.2 kW (3 HP) motor. |  CPm 200-ST6 - 3 HP single-phase stainless steel centrifugal electric pump Made of AISI 316L stainless steel. Flow rate up to 270 l/min (16.2 m³/h). Head up to 45 m. 2.2 kW (3 HP) motor. | |
|---|---|---|---|
| Price | Price €592.92 -45% €326.11 | Price €669.78 -42% €388.47 | Price €840.58 -42% €487.54 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 2.2 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 3 | Power (HP) 3 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) 14.5 | Absorption at 230V (A) 12.8 | Absorption at 230V (A) 12.8 |
| Capacitor | Capacitor 70 µF 450 VL | Capacitor 50 µF 450 VL | Capacitor 50 µF 450 VL |
| Suction mouth | Suction mouth 1" 1/2 | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body AISI 304 stainless steel | Pump body AISI 316L stainless steel |
| Impeller | Impeller Brass | Impeller AISI 304 stainless steel | Impeller AISI 316L stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft AISI 431 stainless steel | Crankshaft AISI 316 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 240 | Max. flow rate (l./min.) 270 | Max. flow rate (l./min.) 270 |
| Min. head (m.) | Min. head (m.) 26 | Min. head (m.) 18 | Min. head (m.) 18 |
| Max. head (m.) | Max. head (m.) 43 | Max. head (m.) 45 | Max. head (m.) 45 |
| Jobs | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, tank transfer | Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants | Jobs water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) 90 |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 30.5 | Height (cm) 23.75 | Height (cm) 23.75 |
| Width (cm) | Width (cm) 40.2 | Width (cm) 39 | Width (cm) 39 |
| Depth (cm) | Depth (cm) 25.2 | Depth (cm) 24.5 | Depth (cm) 24.4 |
| Weight (Kg) | Weight (Kg) 29 | Weight (Kg) 19.4 | Weight (Kg) 19.6 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
