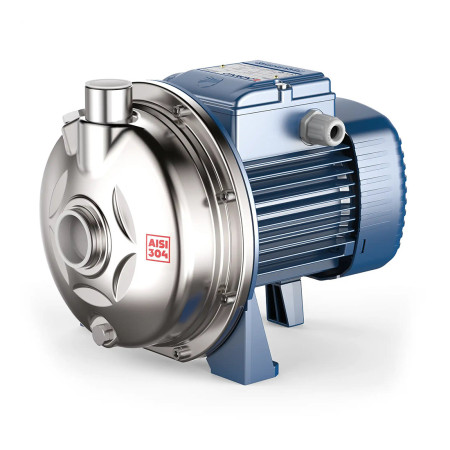

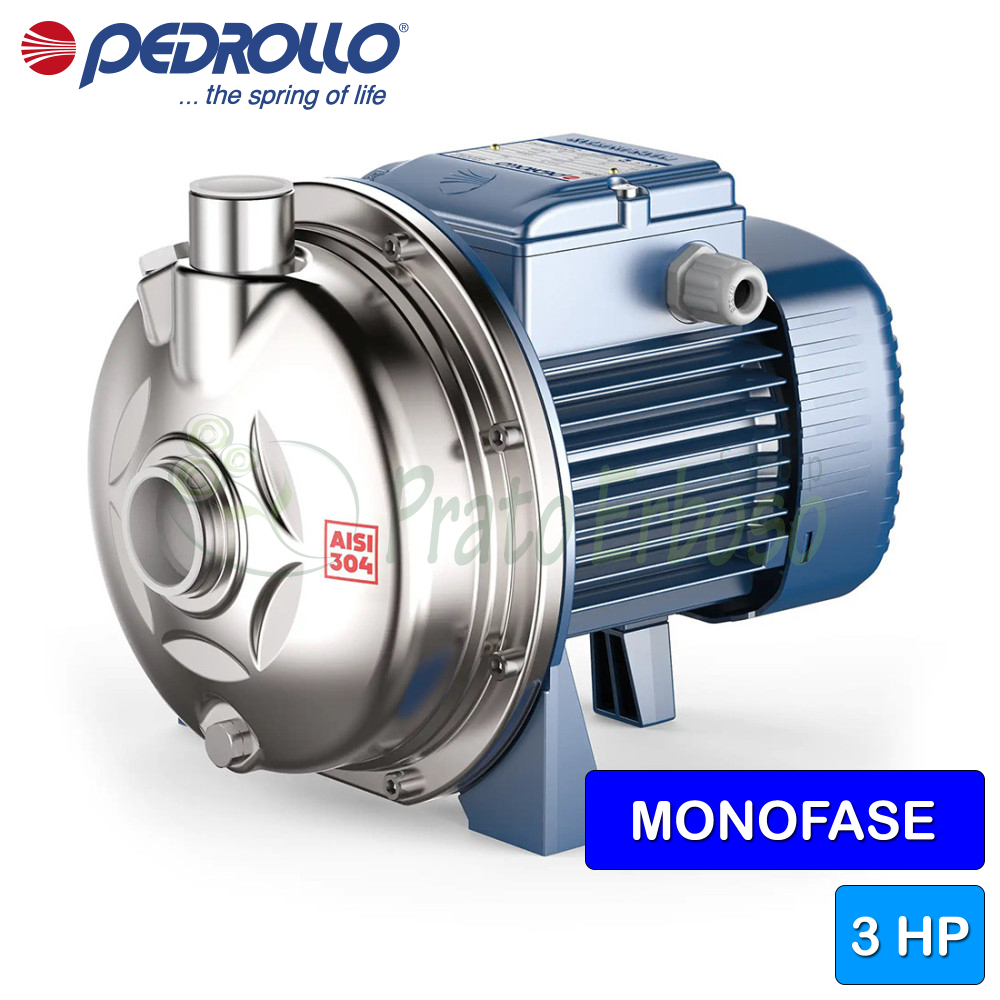

CPm 200-ST4 - 3 HP single-phase stainless steel centrifugal electric pump

Name: CPm 200-ST4 - 3 HP single-phase stainless steel centrifugal electric pump
Brand: Pedrollo
SKU: CPm 200-ST4
Price: 367.24 EUR
Availability: InStock

Made of AISI 304 stainless steel. Flow rate up to 270 l/min (16.2 m³/h). Head up to 45 m. 2.2 kW (3 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo CPm 200-ST4 centrifugal electric pump can pump clean water and liquids that are chemically non-aggressive towards the materials from which the pump is made.

Recommended for use in the domestic, agricultural and industrial sectors.

The pump flow rate ranges from 10 to 270 litres per minute and the head from 18 to 45 metres.

The CPm 200-ST4 is made entirely of stainless steel for greater robustness.

The pump body and impeller are made of AISI 304 stainless steel and the shaft is made of AISI 431 stainless steel.

For total hygiene and to ensure maximum resistance to corrosion, all components in contact with the pumped liquid are made of AISI 304 stainless steel.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 2.2
Power (HP): 3
Absorption at 230V (A): 12.8
Capacitor: 50 µF 450 VL
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 40
Max. flow rate (l./min.): 270
Min. head (m.): 18
Max. head (m.): 45
Jobs: water supply, irrigation, cooling systems, air conditioning systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 23.75
Width (cm): 39
Depth (cm): 24.5
Weight (Kg): 19.4
Warranty (years): 2

Attachments

CP-ST data sheet

Models, performance curves and construction features of Pedrollo CP-ST series pumps.

Download (762.97KB)

CPm-ST4 models and performance

GUY

single phase

CPm 100-ST4

CPm 130-ST4

CPm 132-ST4

CPm 150-ST4

CPm 158-ST4

CPm 170-ST4

CPm 170M-ST4

CPm 180-ST4

CPm 190-ST4

CPm 200-ST4

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 90	16 ÷ 6.5
10 ÷ 100	22.5 ÷ 9
10 ÷ 120	24 ÷ 12
10 ÷ 150	32 ÷ 14
10 ÷ 120	36.5 ÷ 19
10 ÷ 140	41 ÷ 20
10 ÷ 160	36.5 ÷ 19
10 ÷ 230	31.5 ÷ 13
10 ÷ 250	37 ÷ 15.5
10 ÷ 270	45 ÷ 18

MOUTH
wait.	send.
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	2.4	3.6	5.4	6.0	7.2	8.4	9.0	9.6	12	13.8	15	16.2
Q	l/min	0	10	20	40	60	90	100	120	140	150	160	200	230	250	270
H	meters	16	15.5	15	13.5	11.2	6.5
		22.5	21.5	20.8	18.8	16	10.8	9
		24	-	23	21.5	19.8	16.5	15	12
		32	-	31	29.8	28	24.8	23.2	20	16	14
		36.5	35.5	34.5	33	31	26.2	24	19
		41	40	39.2	37.8	36	32	30	25.8	20
		36.5	-	35.5	34.3	33	30	29	26.4	23	21	19
		31.5	-	-	30	29.2	27.5	26.8	25.2	23.5	22.5	21.5	17	13
		37	-	-	35	34	32.2	31.5	30.2	28.7	27.8	27	22.7	18.5	15.5
		45	-	-	43	42	40.2	39.5	38	36.5	35.5	34.5	29.8	25.5	22	18

Construction data of the CP 170-170M-180-190-200-ST4

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	EN 1.4301 stainless steel (AISI 304)
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
5.2 - Shim Ring	PTFE
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
