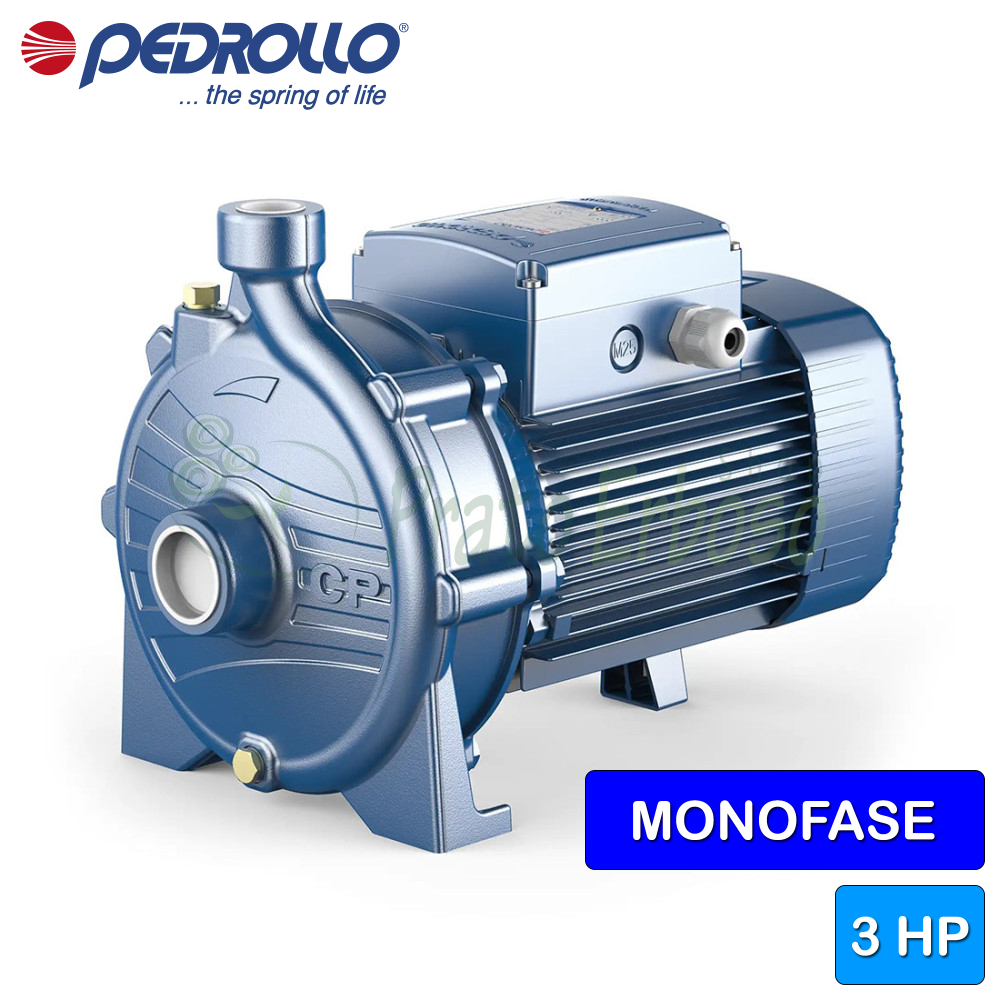

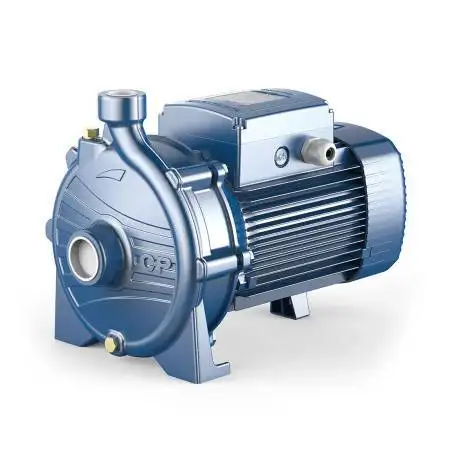

CPm 220C - 3 HP single-phase centrifugal electric pump
Flow rate up to 550 l/min (34 m³/h) Head up to 34 m 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.
Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 15.8
- Capacitor
- 70 µF450 VL
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 55
- Min. flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 14
- Max. head (m.)
- 34
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
- Max. liquid temperature (°C)
- 90
- Motor voltage
- 230 V
- Height (cm)
- 31.5
- Width (cm)
- 44
- Depth (cm)
- 23
- Weight (Kg)
- 34.1
- Warranty (years)
- 2
Models and performances CPm 220
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 220C-220B
Bearings
| Pump side motor bearing | 6206 ZZ - C3 |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-20 |
| LP diameter | 20 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 CPm 220C - 3 HP single-phase centrifugal electric pumpThis product Flow rate up to 550 l/min (34 m³/h) Head up to 34 m 2.2 Kw (3 HP) motor. |  CPm 160C - 1.5 HP Single Phase Centrifugal Electric PumpFlow rate up to 200 l/min (12 m³/h). Head up to 32 m. 1.1 Kw (1.5 HP) motor. |  CPm 160B - 2 HP single-phase centrifugal electric pumpFlow rate up to 220 l/min (13.2 m³/h). Head up to 37 m. 1.5 Kw (2 HP) motor. |  CPm 160A - 3 HP Single Phase Centrifugal Electric PumpFlow rate up to 240 l/min (14.4 m³/h). Head up to 43 m. 2.2 Kw (3 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 1.5 | Power (Kw) 1.5 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 3 | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) 15.8 | Absorption at 230V (A) 8.5 | Absorption at 230V (A) 10.3 | Absorption at 230V (A) 14.5 |
| Capacitor | Capacitor 70 µF450 VL | Capacitor 31.5 µF450 VL | Capacitor 45 µF450 VL | Capacitor 70 µF450 VL |
| Suction mouth | Suction mouth 2" | Suction mouth 1 "1/2 | Suction mouth 1 "1/2 | Suction mouth 1 "1/2 |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 1 " | Delivery mouth 1 " | Delivery mouth 1 " |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Brass | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 44 | Degree of protection IP 44 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 | Min. flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 550 | Max. flow rate (l./min.) 200 | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 240 |
| Min. head (m.) | Min. head (m.) 14 | Min. head (m.) 20 | Min. head (m.) 23 | Min. head (m.) 26 |
| Max. head (m.) | Max. head (m.) 34 | Max. head (m.) 32 | Max. head (m.) 37 | Max. head (m.) 43 |
| Jobs | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 31.5 | Height (cm) 26 | Height (cm) 26 | Height (cm) 30.5 |
| Width (cm) | Width (cm) 44 | Width (cm) 37 | Width (cm) 37 | Width (cm) 40.2 |
| Depth (cm) | Depth (cm) 23 | Depth (cm) 20.6 | Depth (cm) 20.6 | Depth (cm) 25.2 |
| Weight (Kg) | Weight (Kg) 34.1 | Weight (Kg) 19.3 | Weight (Kg) 20 | Weight (Kg) 29 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
