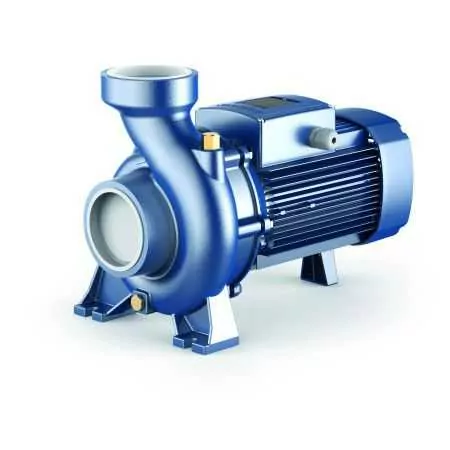

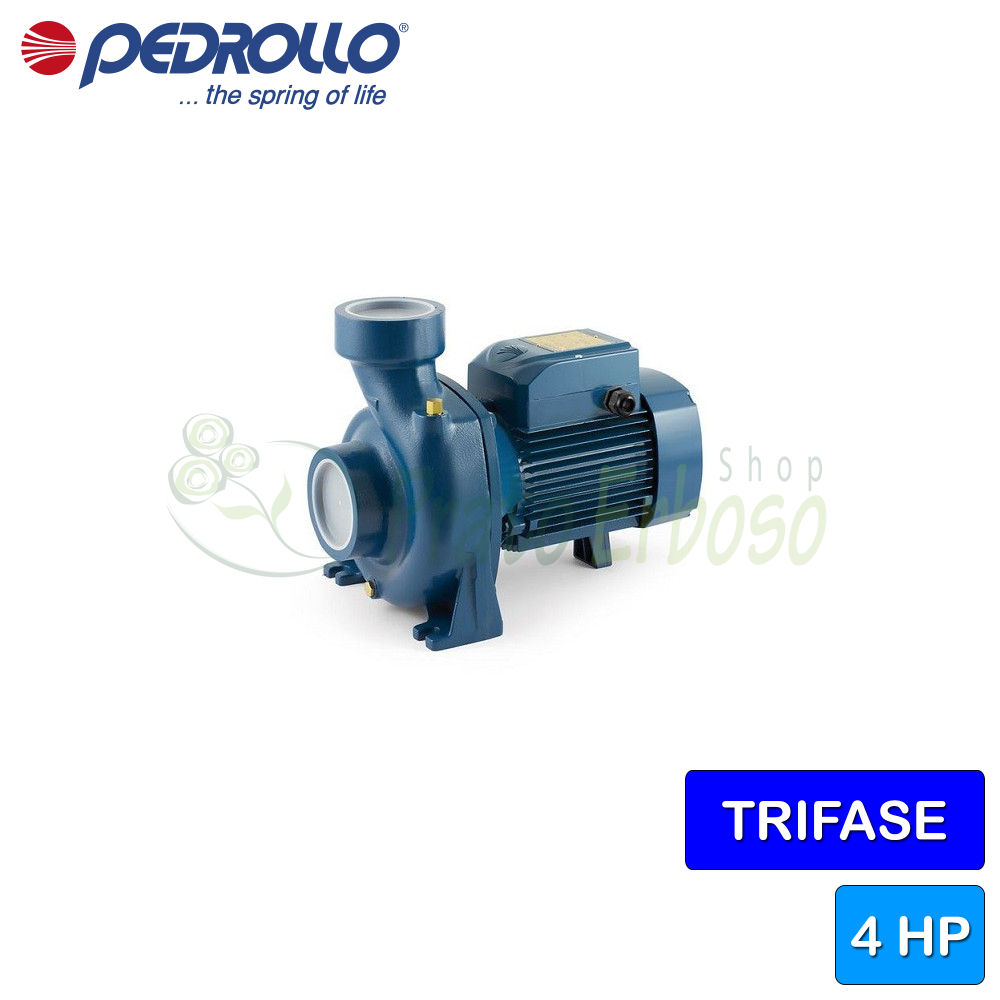

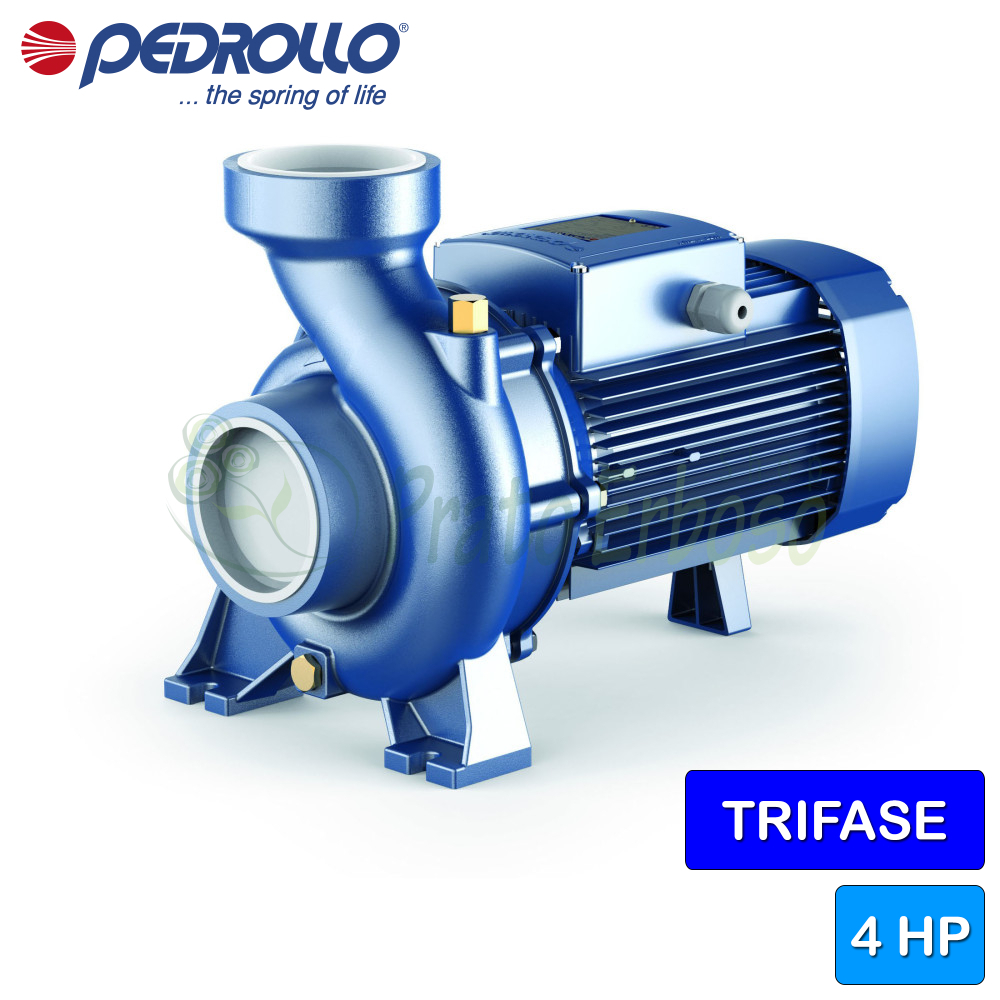

HF 20B - 4 HP three-phase centrifugal electric pump
Flow rate up to 1700 l/min (102 m³/h). Head up to 19 m. 3 kW (4 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HF 20B centrifugal electric pump from Pedrollo 's HF series is efficient and offers high performance in terms of head.
Pedrollo has made the pump with materials such as cast iron and 2 types of stainless steel, AISI 304 and 431, for a solid and resistant result.
Suitable for those who perform long work sessions. High flow rates are preferred, while the prevalence values are lacking.
The HF 20B is recommended for use in agriculture and industry. It is suitable for surface and sprinkler irrigation, and for drawing water from lakes, rivers, and wells.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- 12.8
- Current consumption at 400V (A)
- 7.5
- Suction mouth
- 4"
- Delivery mouth
- 4"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 400
- Max. flow rate (l./min.)
- 1700
- Min. head (m.)
- 7
- Max. head (m.)
- 19
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 31.2
- Width (cm)
- 45.3
- Depth (cm)
- 25.5
- Weight (Kg)
- 37.2
- Warranty (years)
- 2
HF models and performances - High flow rates
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HF 8B-20B
Bearings
| Pump side motor bearing | 6206 ZZ - C3 |
| Opposite side motor bearing | 6205 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-20 |
| LP diameter | 20 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
