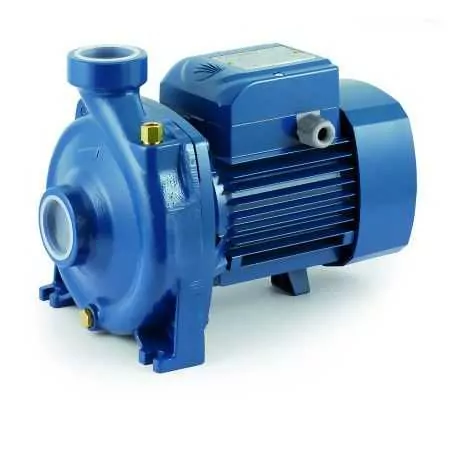

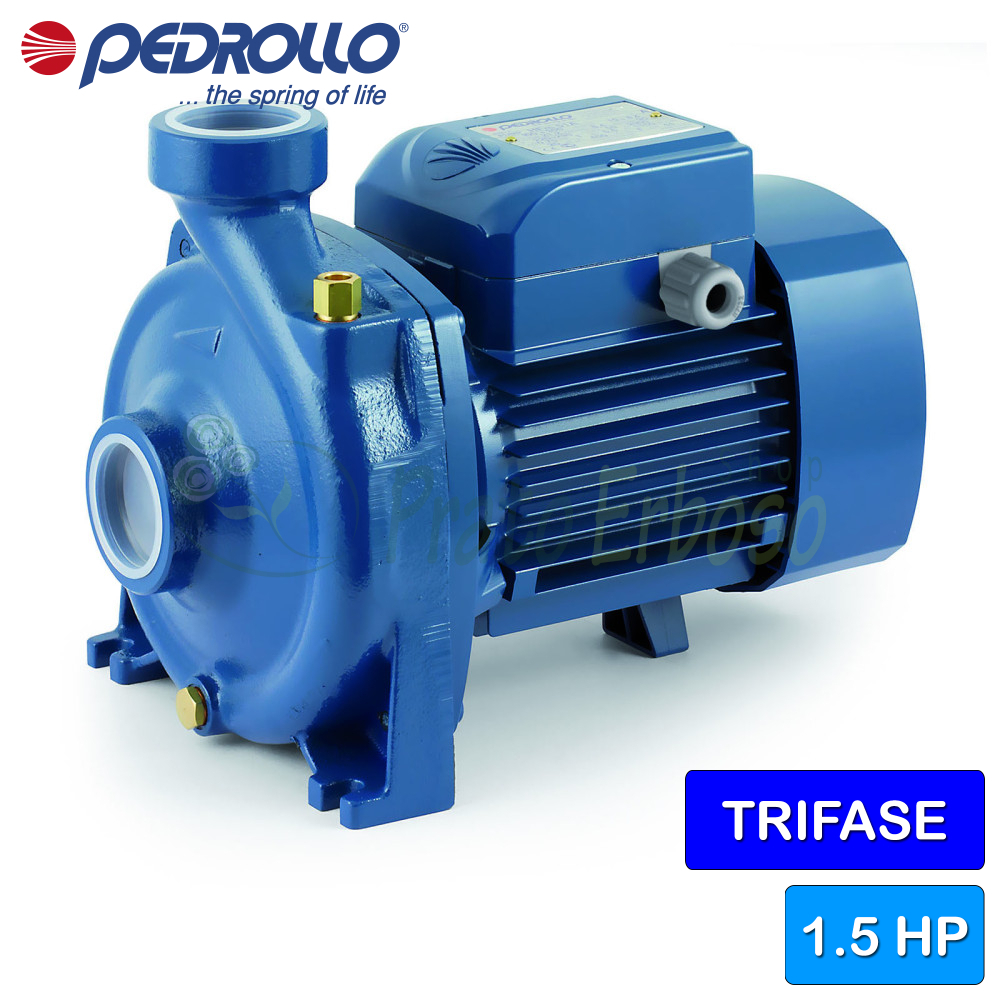

HF 5BM - 1.5 HP three-phase centrifugal electric pump
Flow rate up to 500 l/min (36 m³/h). Head up to 13.7 m. 1.1 kW (1.5 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HF 5BM medium-flow centrifugal electric pump from Pedrollo 's HF series is recommended for use in the agricultural and industrial sectors, particularly for surface and sprinkler irrigation and for drawing water from lakes, rivers and wells.
Suitable for use in the agricultural and industrial sectors.
The HF 5BM boasts great reliability during long work sessions and is more suitable for those who need high flow rates and low head values.
Pedrollo 's use of materials such as cast iron and stainless steel makes the pump solid, robust and built to last over time.
The flow rate ranges from 100 to 600 litres per minute while the head ranges from 6 to 19 metres.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 5.7
- Current consumption at 400V (A)
- 3.3
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 5
- Max. head (m.)
- 13.7
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 26
- Width (cm)
- 38.6
- Depth (cm)
- 20.8
- Weight (Kg)
- 20.3
- Warranty (years)
- 2
HF models and performances - Medium ranges
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HF 70C-70B-70A-5 BM-5 AM
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
