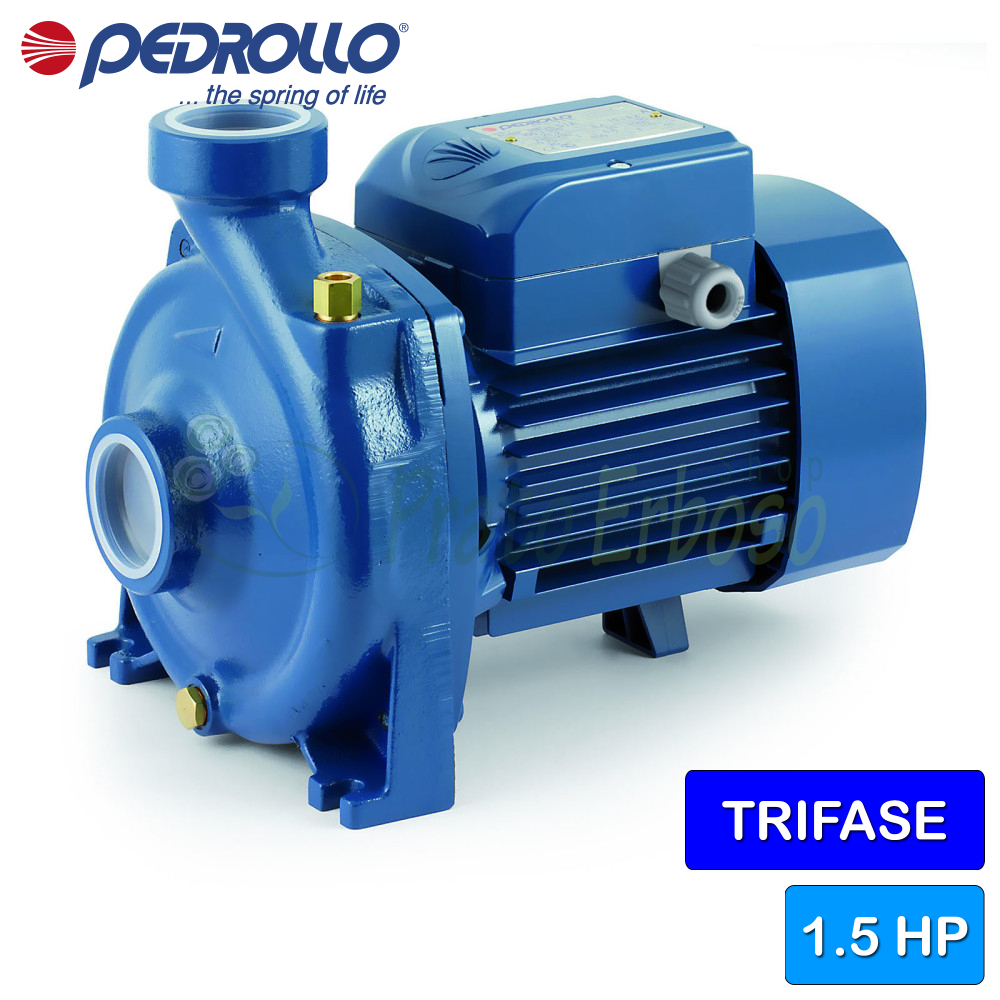

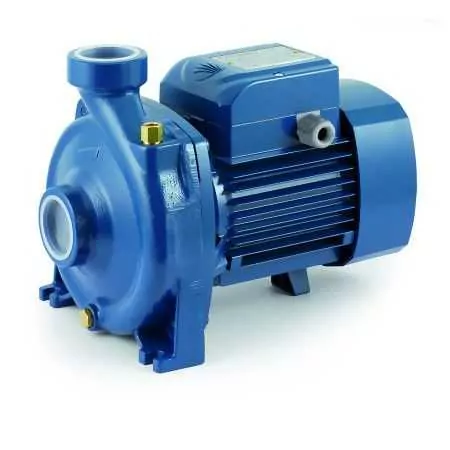

HF 70C - 1.5 HP three-phase centrifugal electric pump
Flow rate up to 300 l/min (18 m³/h). Head up to 29 m. 1.1 kW (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo HF 70C centrifugal electric pump is suitable for those seeking reliability during long work sessions.
Suitable for surface and sprinkler irrigation, for drawing water from lakes, rivers and wells.
Recommended for use in the agricultural and industrial sectors.
The HF 70C is suitable for those looking for high flow rates at the expense of low head values.
The flow rate ranges from 50 to 300 litres per minute while the head ranges from 15 to 29 metres.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 6.1
- Current consumption at 400V (A)
- 3.3
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 15
- Max. head (m.)
- 29
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 26.9
- Width (cm)
- 37.3
- Depth (cm)
- 21.6
- Weight (Kg)
- 20.1
- Warranty (years)
- 2
HF models and performances - Medium ranges
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HF 70C-70B-70A-5 BM-5 AM
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
