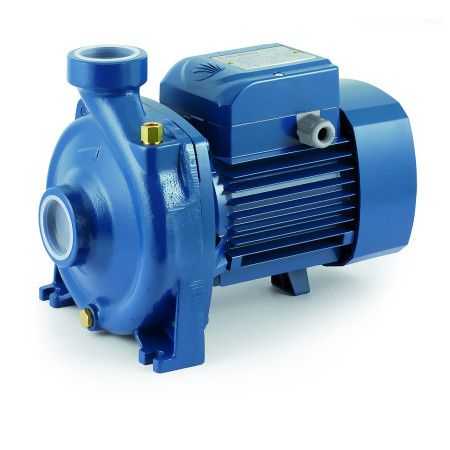

HFm 51B - Single-phase centrifugal electric pump 0.75 HP Pedrollo - 1

-42%

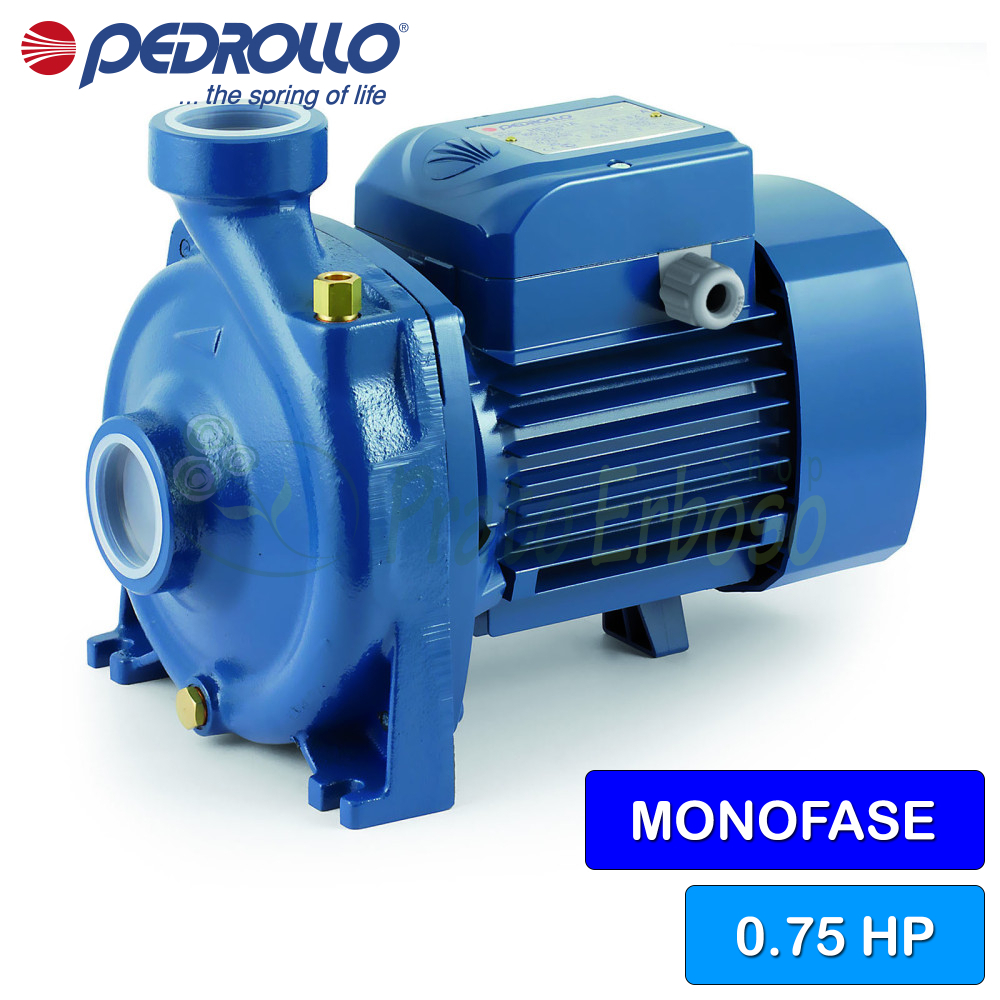

HFm 51B - 0.75 HP single-phase centrifugal electric pump

Name: HFm 51B - 0.75 HP single-phase centrifugal electric pump
Brand: Pedrollo
SKU: HFm 51B
Price: 199.54 EUR
Availability: InStock

Flow rate up to 300 l/min (18 m³/h). Head up to 18.2 m. 0.55 Kw (0.75 HP) motor.

Variants:

Order it before 12:00 and receive it between Tuesday 30 June and Wednesday 1 July with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Tuesday 30 June - Wednesday 1 July
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Tuesday 30 June - Wednesday 1 July

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Tuesday 30 June - Wednesday 1 July

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Tuesday 30 June - Wednesday 1 July

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The HFm 51B centrifugal electric pump from the HF series by Pedrollo belongs to the medium flow rate category.

It satisfies the needs of those who require high flow rates and are not interested in having large values in terms of head.

The HFm 51B is recommended for surface and sprinkler irrigation, for drawing water from lakes, rivers and wells.

Advantageous as it is reliable and constant even during long watering sessions.

The flow rate ranges from 50 to 300 litres per minute while the head ranges from 5.4 to 18.2 metres.

Data sheet

Motor connection: SINGLE-PHASE
Power (HP): 0.75
Absorption at 230V (A): 4.7
Capacitor: 20 µF 450 VL
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 300
Min. head (m.): 5.4
Max. head (m.): 18.2
Jobs: water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 22.5
Width (cm): 30.3
Depth (cm): 19
Weight (Kg): 12.9
Warranty (years): 2

Attachments

Medium flow HF data sheet

Models, performance curves and construction characteristics of the Pedrollo pumps of the HF series medium flow rates.

Download (350.74KB)

HFm models and performances - Medium ranges

GUY

single phase

HFm 50B

HFm 50A

HFm 51B

HFm 51A

HFm 70C

HFm 70B

HFm 5B

HFm 5A

HFm 5BM

HFm 5AM

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.75	1
1.1	1.5
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	10 ÷ 4
50 ÷ 300	12 ÷ 6
50 ÷ 300	18.2 ÷ 5.4
50 ÷ 300	21.2 ÷ 8.4
50 ÷ 300	29 ÷ 15
50 ÷ 300	33 ÷ 19
100 ÷ 500	13.7 ÷ 5
100 ÷ 600	14.5 ÷ 3
100 ÷ 600	19 ÷ 6
100 ÷ 600	22 ÷ 10

MOUTH
wait.	send.
1 1/2"	1 1/2"
2"	2"

Q	m³/hour	0	3	6	9	12	15	18	21	24	30	36
Q	l/min	0	50	100	150	200	250	300	350	400	500	600
H	meters	10	10	9.5	8.5	7.5	6	4
		12	12	11.5	11	9.6	8	6
		18.2	17.2	16	14	11.5	9	5.4
		21.2	20.2	19	17	14.5	11.6	8.4
		29	28	26.5	24.5	22	18.5	15
		33	32	30.5	28.5	26	22.5	19
		13.7	-	13.2	13	12.5	11.6	10.5	9.2	8	5
		14.5	-	13.8	13.5	13.2	12.6	11.8	10.5	9.2	6.5	3
		19	-	18.5	18	17	16	15.2	14	12.8	9.7	6
		22	-	21.5	21	20.5	19.8	19	18	16.8	13.8	10

Construction data of the HF 51B-51A-5B-5A

Section of the Pedrollo HF medium flow pump

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-14
LP diameter	14
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
