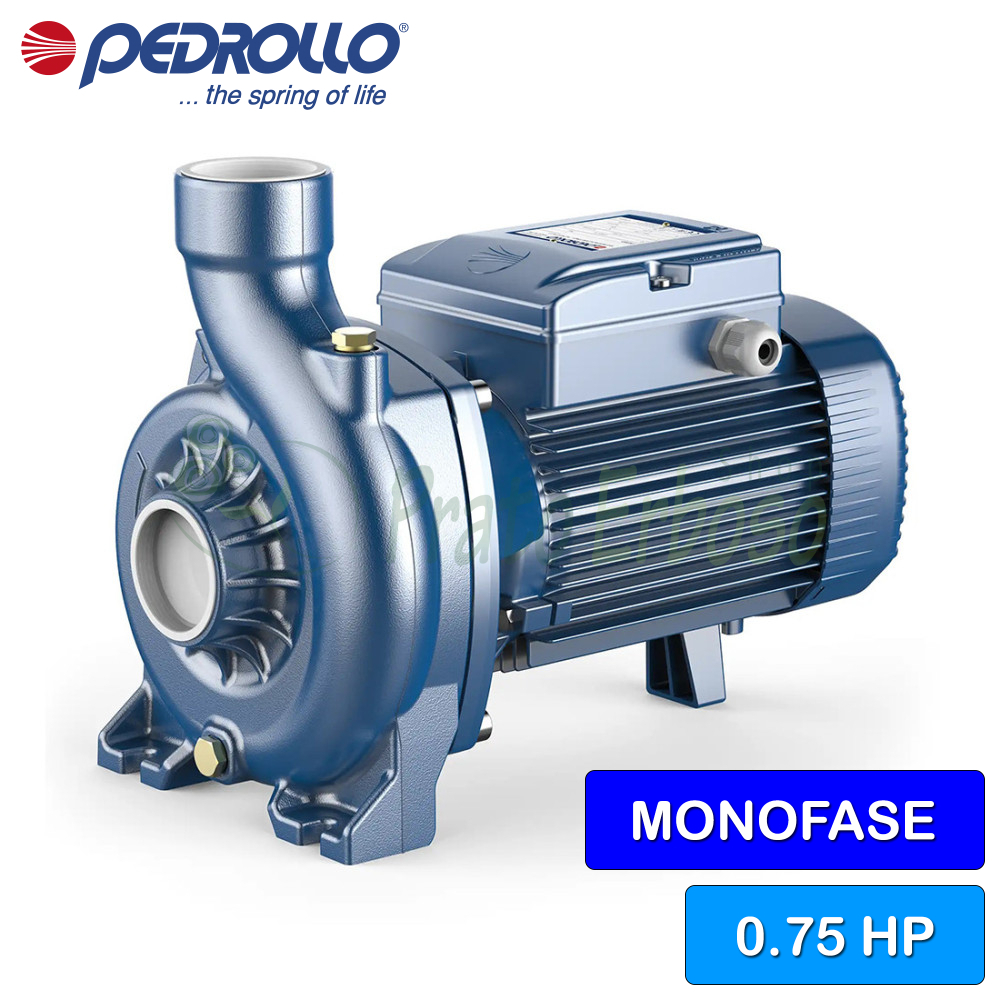

NGAm 1B - 0.75 HP single-phase open impeller centrifugal electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo NGAm 1B centrifugal electric pump is recommended for use in the agricultural, domestic and industrial sectors.
Pedrollo designed this pump with an open impeller, allowing it to pump relatively heavy liquids without clogging the impeller. It allows solids up to 12 millimeters in diameter to pass through.
The NGAM 1B, due to its open impeller design, is suitable for applications such as transfers from canals, rivers, tanks and basins.
It has a flow rate ranging from 40 to 350 liters and a reach of 5 to 18 meters. The pump body supports a maximum working pressure of 6 bar .
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.3
- Capacitor
- 16 µF 450 VL
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 5
- Max. head (m.)
- 18
- Jobs
- water supply, washing systems
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 22.7
- Width (cm)
- 29.7
- Depth (cm)
- 19
- Weight (Kg)
- 12.4
- Warranty (years)
- 2
NGAm 1 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the NGA 1B-1A
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 14401 stainless steel (AISI 316) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
