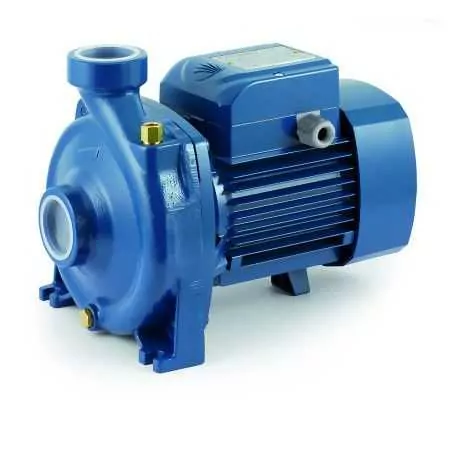

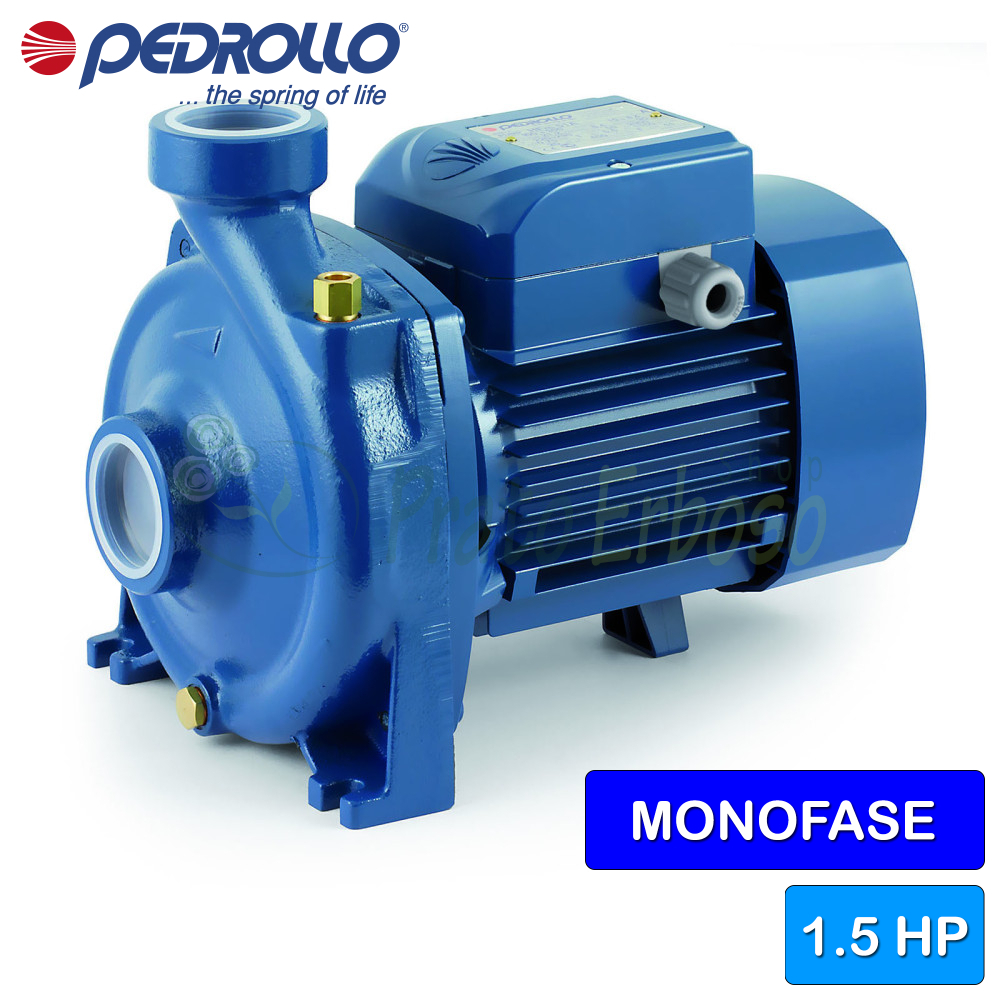

HFm 5BM - 1.5 HP single-phase centrifugal electric pump

Name: HFm 5BM - 1.5 HP single-phase centrifugal electric pump
Brand: Pedrollo
SKU: HFm 5BM
Price: 310.64 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 600 l/min (36 m³/h). Head up to 19 m. 1.1 kW (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The HFm 5BM medium-flow centrifugal electric pump from Pedrollo 's HF series is recommended for use in the agricultural and industrial sectors, particularly for surface and sprinkler irrigation and for drawing water from lakes, rivers and wells.

Suitable for use in the agricultural and industrial sectors.

The HFm 5BM boasts great reliability during long work sessions and is more suitable for those who need high flow rates and low head values.

Pedrollo 's use of materials such as cast iron and stainless steel makes the pump solid, robust and built to last over time.

The flow rate ranges from 100 to 600 litres per minute while the head ranges from 6 to 19 metres.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 7.7
Capacitor: 25 µF 450 VL
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 600
Min. head (m.): 6
Max. head (m.): 19
Jobs: water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 26
Width (cm): 38.6
Depth (cm): 20.8
Weight (Kg): 19.2
Warranty (years): 2

Attachments

Medium flow HF data sheet

Models, performance curves and construction characteristics of the Pedrollo pumps of the HF series medium flow rates.

Download (350.74KB)

HFm models and performances - Medium ranges

GUY

single phase

HFm 50B

HFm 50A

HFm 51B

HFm 51A

HFm 70C

HFm 70B

HFm 5B

HFm 5A

HFm 5BM

HFm 5AM

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.75	1
1.1	1.5
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	10 ÷ 4
50 ÷ 300	12 ÷ 6
50 ÷ 300	18.2 ÷ 5.4
50 ÷ 300	21.2 ÷ 8.4
50 ÷ 300	29 ÷ 15
50 ÷ 300	33 ÷ 19
100 ÷ 500	13.7 ÷ 5
100 ÷ 600	14.5 ÷ 3
100 ÷ 600	19 ÷ 6
100 ÷ 600	22 ÷ 10

MOUTH
wait.	send.
1 1/2"	1 1/2"
2"	2"

Q	m³/hour	0	3	6	9	12	15	18	21	24	30	36
Q	l/min	0	50	100	150	200	250	300	350	400	500	600
H	meters	10	10	9.5	8.5	7.5	6	4
		12	12	11.5	11	9.6	8	6
		18.2	17.2	16	14	11.5	9	5.4
		21.2	20.2	19	17	14.5	11.6	8.4
		29	28	26.5	24.5	22	18.5	15
		33	32	30.5	28.5	26	22.5	19
		13.7	-	13.2	13	12.5	11.6	10.5	9.2	8	5
		14.5	-	13.8	13.5	13.2	12.6	11.8	10.5	9.2	6.5	3
		19	-	18.5	18	17	16	15.2	14	12.8	9.7	6
		22	-	21.5	21	20.5	19.8	19	18	16.8	13.8	10

Construction data of the HF 70C-70B-70A-5 BM-5 AM

Section of the Pedrollo HF medium flow pump

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
