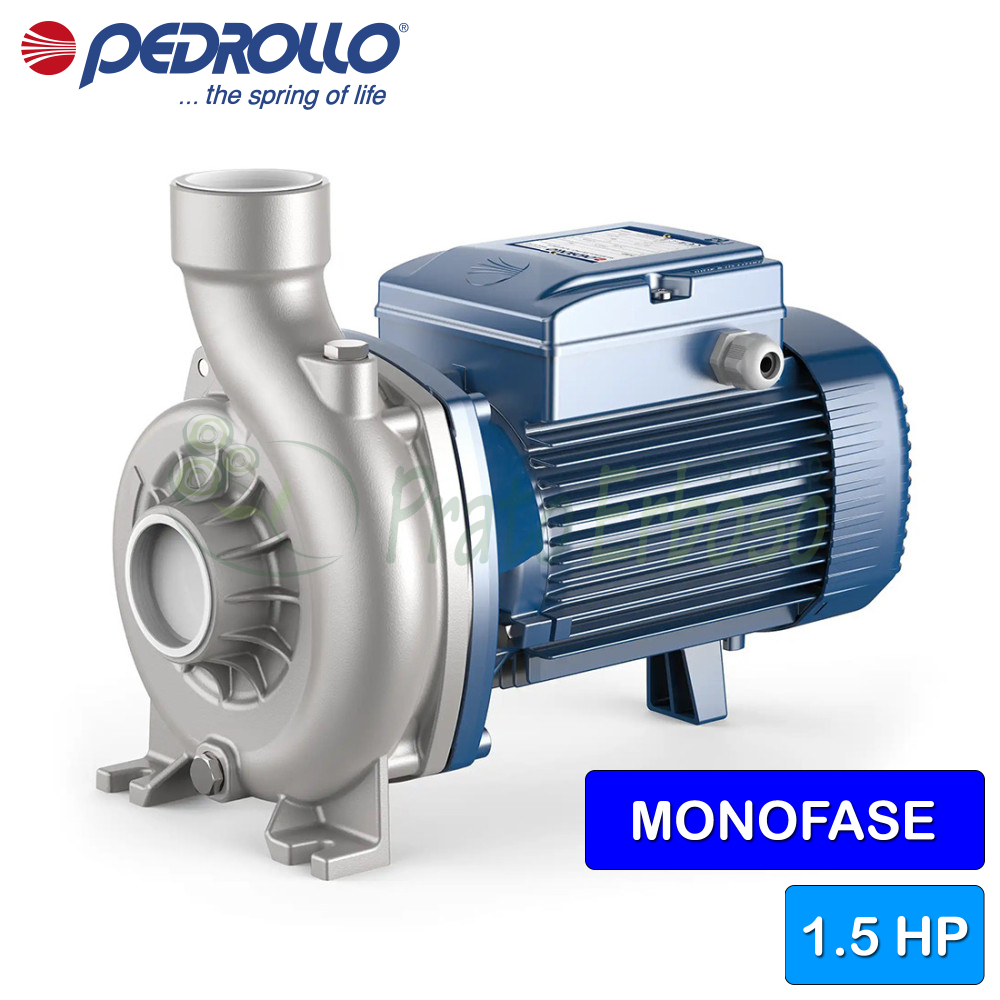

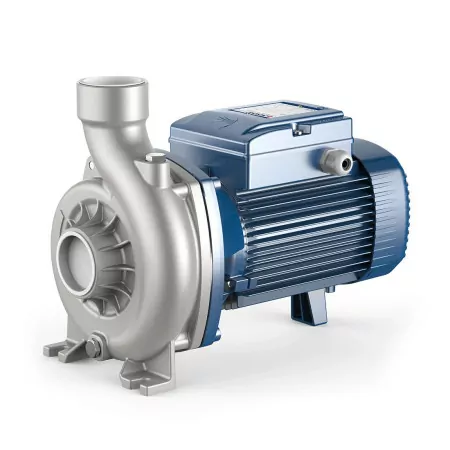

NGAm 3D-PRO - 1.5 HP single-phase open impeller electric pump

Name: NGAm 3D-PRO - 1.5 HP single-phase open impeller electric pump
Brand: Pedrollo
SKU: NGAm 3D-PRO
Price: 714.68 EUR
Availability: InStock

Flow rate up to 700 l/min (42 m³/h). Head up to 12.5 m. 1.1 Kw (1.5 HP) motor.

Variants:

Order it before 12:00 of today and receive it between Tuesday 29 April and Wednesday 30 April with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Tuesday 29 April - Wednesday 30 April
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Tuesday 29 April - Wednesday 30 April
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Tuesday 29 April - Wednesday 30 April
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 2 May - Tuesday 6 May

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Tuesday 29 April - Wednesday 30 April

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Tuesday 29 April - Wednesday 30 April

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Tuesday 29 April - Wednesday 30 April

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 2 May - Tuesday 6 May

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO submersible pumps of the NGA-PRO line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.

The PEDROLLO NGAm 3D-PRO has a flow rate that varies from 100 to 700 litres per minute with a head from 12.5 to 5 metres.

The open impeller design solution allows pumping fluids relatively full of impurities without the risk of clogging the impeller. All components in contact with the pumped liquid are made of AISI 316 stainless steel. For this feature, the NGA-PRO series pumps are specifically used in fruit, vegetable, fish and shellfish washing systems, in industrial systems for washing metal parts, glass containers and circulation of cooling liquids.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.1
Power (HP): 1.5
Suction mouth: 2"
Delivery mouth: 2"
Pump body: AISI 316 stainless steel
Impeller: AISI 316 stainless steel
Number of impellers: 1
Crankshaft: AISI 316L stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 100
Max. flow rate (l./min.): 700
Min. head (m.): 5
Max. head (m.): 12.5
Jobs: water supply, cooling systems, washing systems, water treatment plants
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Weight (Kg): 20.2
Warranty (years): 2

Attachments

NGA-PRO data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo NGA-PRO series pumps.

Download (499.41KB)

Models and performances NGAm 2-3 - PRO

GUY

three-phase

NGAm 2B - PRO

NGAm 2A - PRO

NGAm 3D - PRO

NGAm 3C - PRO

NGAm 3B - PRO

NGAm 3A - PRO

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
wait.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5

Construction data of the NGA 3D-PRO-3C-PRO-3B-PRO-3A

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18 V6
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	Viton

Mat

1.0 - Pump Body	EN 14401 stainless steel (AISI 316)
2.1 - Seal holder cover	EN 14401 stainless steel (AISI 316)
3.0 - Impeller	EN 14401 stainless steel (AISI 316)
4.0 - Pump shaft	EN 1.4404 stainless steel (AISI 316L)
6.0 - Motor holder	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100

Compare with Similar Products

	NGAm 3D-PRO - 1.5 HP single-phase open impeller electric pump This product Flow rate up to 700 l/min (42 m³/h). Head up to 12.5 m. 1.1 Kw (1.5 HP) motor.	NGAm 2A-PRO - 1 HP single-phase open impeller electric pump Quick View Flow rate up to 550 l/min (33 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor.	NGAm 3C-PRO - 2 HP single-phase open impeller electric pump Quick View Flow rate up to 770 l/min (46.2 m³/h). Head up to 14.4 m. 1.5 Kw (2 HP) motor.	NGAm 3B-PRO - 2.5 HP single-phase open impeller electric pump Quick View Flow rate up to 840 l/min (51 m³/h). Head up to 17 m. 1.8 Kw (2.5 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (Kw)	Power (Kw) 1.1	Power (Kw) 0.75	Power (Kw) 1.5	Power (Kw) 1.8
Power (HP)	Power (HP) 1.5	Power (HP) 3	Power (HP) 2	Power (HP) 2.5
Suction mouth	Suction mouth 2"	Suction mouth 2"	Suction mouth 2"	Suction mouth 2"
Delivery mouth	Delivery mouth 2"	Delivery mouth 2"	Delivery mouth 2"	Delivery mouth 2"
Pump body	Pump body AISI 316 stainless steel	Pump body AISI 316 stainless steel	Pump body AISI 316 stainless steel	Pump body AISI 316 stainless steel
Impeller	Impeller AISI 316 stainless steel	Impeller AISI 316 stainless steel	Impeller AISI 316 stainless steel	Impeller AISI 316 stainless steel
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 316L stainless steel	Crankshaft AISI 316L stainless steel	Crankshaft AISI 316L stainless steel	Crankshaft AISI 316L stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44
Min. flow rate (l./min.)	Min. flow rate (l./min.) 100	Min. flow rate (l./min.) 50	Min. flow rate (l./min.) 100	Min. flow rate (l./min.) 100
Max. flow rate (l./min.)	Max. flow rate (l./min.) 700	Max. flow rate (l./min.) 550	Max. flow rate (l./min.) 770	Max. flow rate (l./min.) 840
Min. head (m.)	Min. head (m.) 5	Min. head (m.) 4	Min. head (m.) 5.7	Min. head (m.) 7
Max. head (m.)	Max. head (m.) 12.5	Max. head (m.) 11	Max. head (m.) 14.8	Max. head (m.) 17
Jobs	Jobs water supply, cooling systems, washing systems, water treatment plants	Jobs water supply, cooling systems, washing systems, water treatment plants	Jobs water supply, cooling systems, washing systems, water treatment plants	Jobs water supply, cooling systems, washing systems, water treatment plants
Max. liquid temperature (°C)	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C
Motor voltage	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V
Weight (Kg)	Weight (Kg) 20.2	Weight (Kg) 13.2	Weight (Kg) 21.9	Weight (Kg) 24.5
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
