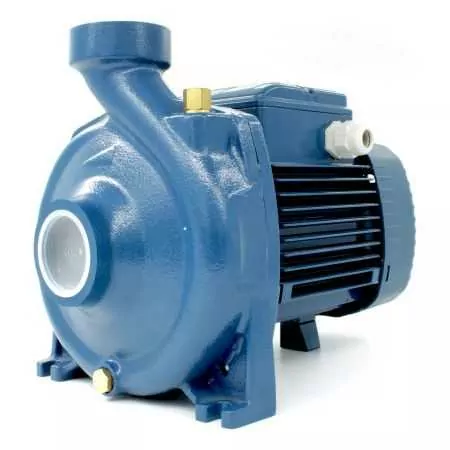

HF 51A - 1 HP three-phase centrifugal electric pump

Name: HF 51A - 1 HP three-phase centrifugal electric pump
Brand: Pedrollo
SKU: HF 51A
Price: 210.16 EUR
Availability: InStock
Rating: 1 (1 reviews)

Flow rate up to 300 l/min (18 m³/h). Head up to 21.2 m. 0.75 Kw (1 HP) motor.

Variants:

Order it before 23:59 on Friday and receive it on Wednesday 12 November with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 12 November - Thursday 13 November
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 12 November
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 12 November

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 12 November

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO pumps of the HF medium flow rate line are recommended for civil and agricultural environments.

The PEDROLLO HF 51A has a flow rate ranging from 50 to 300 litres per minute with a head of 21.2 to 8.2 metres.

The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 4.4
Current consumption at 400V (A): 2.5
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 300
Min. head (m.): 8.4
Max. head (m.): 21.2
Jobs: water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 22.5
Width (cm): 30.3
Depth (cm): 19
Weight (Kg): 13
Warranty (years): 2

Attachments

Medium flow HF data sheet

Models, performance curves and construction characteristics of the Pedrollo pumps of the HF series medium flow rates.

Download (350.74KB)

HF models and performances - Medium ranges

GUY

three-phase

HF 50B

HF 50A

HF 51B

HF 51A

HF 70C

HF 70B

HF 70A

HF 5B

HF 5A

HF 5BM

HF 5AM

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3
0.75	1
1.1	1.5
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	10 ÷ 4
50 ÷ 300	12 ÷ 6
50 ÷ 300	18.2 ÷ 5.4
50 ÷ 300	21.2 ÷ 8.4
50 ÷ 300	29 ÷ 15
50 ÷ 300	33 ÷ 19
50 ÷ 300	39 ÷ 25
100 ÷ 500	13.7 ÷ 5
100 ÷ 600	14.5 ÷ 3
100 ÷ 600	19 ÷ 6
100 ÷ 600	22 ÷ 10

MOUTH
wait.	send.
1 1/2"	1 1/2"
2"	2"

Q	m³/hour	0	3	6	9	12	15	18	21	24	30	36
Q	l/min	0	50	100	150	200	250	300	350	400	500	600
H	meters	10	10	9.5	8.5	7.5	6	4
		12	12	11.5	11	9.6	8	6
		18.2	17.2	16	14	11.5	9	5.4
		21.2	20.2	19	17	14.5	11.6	8.4
		29	28	26.5	24.5	22	18.5	15
		33	32	30.5	28.5	26	22.5	19
		39	38	36.5	34.5	32	28.5	25
		13.7	-	13.2	13	12.5	11.6	10.5	9.2	8	5
		14.5	-	13.8	13.5	13.2	12.6	11.8	10.5	9.2	6.5	3
		19	-	18.5	18	17	16	15.2	14	12.8	9.7	6
		22	-	21.5	21	20.5	19.8	19	18	16.8	13.8	10

Construction data of the HF 51B-51A-5B-5A

Section of the Pedrollo HF medium flow pump

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-14
LP diameter	14
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
