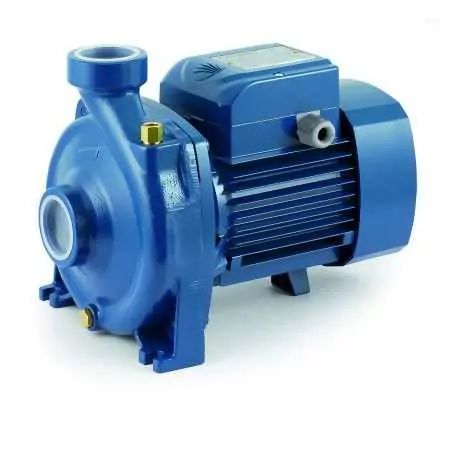

HFm 50A - Single-phase centrifugal electric pump 0.75 HP

Name: HFm 50A - Single-phase centrifugal electric pump 0.75 HP
Brand: Pedrollo
SKU: HFm 50A
Price: 160.63 EUR
Availability: InStock

Flow rate up to 300 l/min (18 m³/h). Head up to 12 m. 0.55 Kw (0.75 HP) motor.

Variants:

Order it before 23:59 on Friday and receive it on Wednesday 12 November with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 12 November - Thursday 13 November
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 12 November - Thursday 13 November
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 12 November
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 12 November

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 12 November - Thursday 13 November

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 12 November

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 12 November

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO pumps of the HF medium flow rate line are recommended for civil and agricultural environments.

The PEDROLLO HF 50A has a flow rate that varies from 50 to 300 litres per minute with a head from 12 to 6 metres.

The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.8
Capacitor: 14 µF 450 VL
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 300
Min. head (m.): 6
Max. head (m.): 12
Jobs: water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 20
Width (cm): 27
Depth (cm): 16.6
Weight (Kg): 8.9
Warranty (years): 2

Attachments

Medium flow HF data sheet

Models, performance curves and construction characteristics of the Pedrollo pumps of the HF series medium flow rates.

Download (350.74KB)

HFm models and performances - Medium ranges

GUY

single phase

HFm 50B

HFm 50A

HFm 51B

HFm 51A

HFm 70C

HFm 70B

HFm 5B

HFm 5A

HFm 5BM

HFm 5AM

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.75	1
1.1	1.5
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	10 ÷ 4
50 ÷ 300	12 ÷ 6
50 ÷ 300	18.2 ÷ 5.4
50 ÷ 300	21.2 ÷ 8.4
50 ÷ 300	29 ÷ 15
50 ÷ 300	33 ÷ 19
100 ÷ 500	13.7 ÷ 5
100 ÷ 600	14.5 ÷ 3
100 ÷ 600	19 ÷ 6
100 ÷ 600	22 ÷ 10

MOUTH
wait.	send.
1 1/2"	1 1/2"
2"	2"

Q	m³/hour	0	3	6	9	12	15	18	21	24	30	36
Q	l/min	0	50	100	150	200	250	300	350	400	500	600
H	meters	10	10	9.5	8.5	7.5	6	4
		12	12	11.5	11	9.6	8	6
		18.2	17.2	16	14	11.5	9	5.4
		21.2	20.2	19	17	14.5	11.6	8.4
		29	28	26.5	24.5	22	18.5	15
		33	32	30.5	28.5	26	22.5	19
		13.7	-	13.2	13	12.5	11.6	10.5	9.2	8	5
		14.5	-	13.8	13.5	13.2	12.6	11.8	10.5	9.2	6.5	3
		19	-	18.5	18	17	16	15.2	14	12.8	9.7	6
		22	-	21.5	21	20.5	19.8	19	18	16.8	13.8	10

Construction data of the HF 50B-50A

Section of the Pedrollo HF medium flow pump

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-12
LP diameter	12
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100

Compare with Similar Products

	HFm 50A - Single-phase centrifugal electric pump 0.75 HP This product Flow rate up to 300 l/min (18 m³/h). Head up to 12 m. 0.55 Kw (0.75 HP) motor.	HFm 50B - Single-phase centrifugal electric pump 0.50 HP Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 10 m. 0.35 Kw (0.50 HP) motor.	HFm 51B - Single-phase centrifugal electric pump 0.75 HP Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 18.2 m. 0.55 Kw (0.75 HP) motor.	HFm 51A - Single-phase centrifugal electric pump 1 HP Quick View Flow rate up to 300 l/min (18 m³/h). Head up to 21.2 m. 0.75 Kw (1 HP) motor.
Price	Price €276.94 -42% €160.63	Price €267.18 -42% €154.96	Price €326.96 -42% €189.64	Price €334.28 -42% €193.88
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.55	Power (Kw) 0.37	Power (Kw) --	Power (Kw) 0.75
Power (HP)	Power (HP) 0.75	Power (HP) 0.50	Power (HP) 0.75	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 3.8	Absorption at 230V (A) 2.8	Absorption at 230V (A) 4.7	Absorption at 230V (A) 5.6
Capacitor	Capacitor 14 µF 450 VL	Capacitor --	Capacitor 20 µF 450 VL	Capacitor 20 µF 450 VL
Suction mouth	Suction mouth 1" 1/2	Suction mouth 1" 1/2	Suction mouth 1" 1/2	Suction mouth 1" 1/2
Delivery mouth	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2	Delivery mouth 1" 1/2
Pump body	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller Brass	Impeller Brass	Impeller Brass	Impeller Brass
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft Stainless steel EN 10088-3 1.4104	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50	Minimum flow rate (l./min.) 50
Max. flow rate (l./min.)	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 300	Max. flow rate (l./min.) 300
Min. head (m.)	Min. head (m.) 6	Min. head (m.) 4	Min. head (m.) 5.4	Min. head (m.) 8.4
Max. head (m.)	Max. head (m.) 12	Max. head (m.) 10	Max. head (m.) 18.2	Max. head (m.) 21.2
Jobs	Jobs water supply, irrigation, cooling systems, tank transfer	Jobs water supply, irrigation, cooling systems, tank transfer	Jobs water supply, irrigation, cooling systems, tank transfer	Jobs water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C)	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C
Motor voltage	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V
Height (cm)	Height (cm) 20	Height (cm) 20	Height (cm) 22.5	Height (cm) 22.5
Width (cm)	Width (cm) 27	Width (cm) 27	Width (cm) 30.3	Width (cm) 30.3
Depth (cm)	Depth (cm) 16.6	Depth (cm) 16.6	Depth (cm) 19	Depth (cm) 19
Weight (Kg)	Weight (Kg) 8.9	Weight (Kg) 8	Weight (Kg) 12.9	Weight (Kg) 13
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
