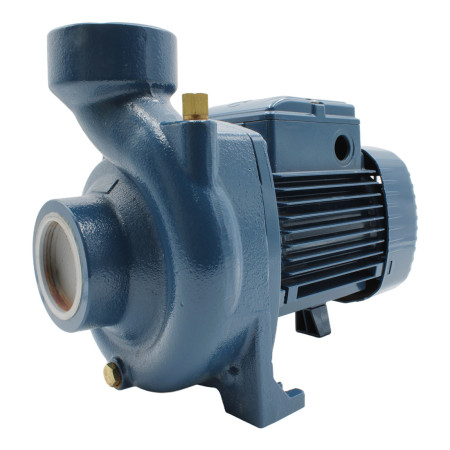

HF 5A - 1.25 HP Three-Phase Centrifugal Electric Pump
Flow rate up to 600 l/min (36 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The PEDROLLO submersible pumps of the HF medium flow rate line are recommended for civil and agricultural environments.
The PEDROLLO HF 5A has a flow rate ranging from 100 to 600 litres per minute with a head from 16 to 4.3 metres.
The high achievable yields and the possibility of continuous use make the use of this electric pump advantageous for flow or rain irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in a medium-low prevalence ratio.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.90
- Power (HP)
- 1.25
- Absorption at 230V (A)
- 5.0
- Absorption at 400V (A)
- 2.9
- Suction mouth
- 2"
- Delivery port
- 2"
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 100
- Max flow (l./min.)
- 600
- Min head (m.)
- 3
- Max head (m.)
- 14.5
- Employments
- water supply, irrigation, cooling systems, transfer of tanks
- Liquid temperature max. (° C)
- 90
- Motor voltage
- 400 V
- Height (cm)
- 23.8
- Width (cm)
- 19.2
- Depth (cm)
- 31.6
- Weight kg)
- 15.3
- Guarantee
- 2
HF models and performances - Medium ranges
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HF 51B-51A-5B-5A
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
