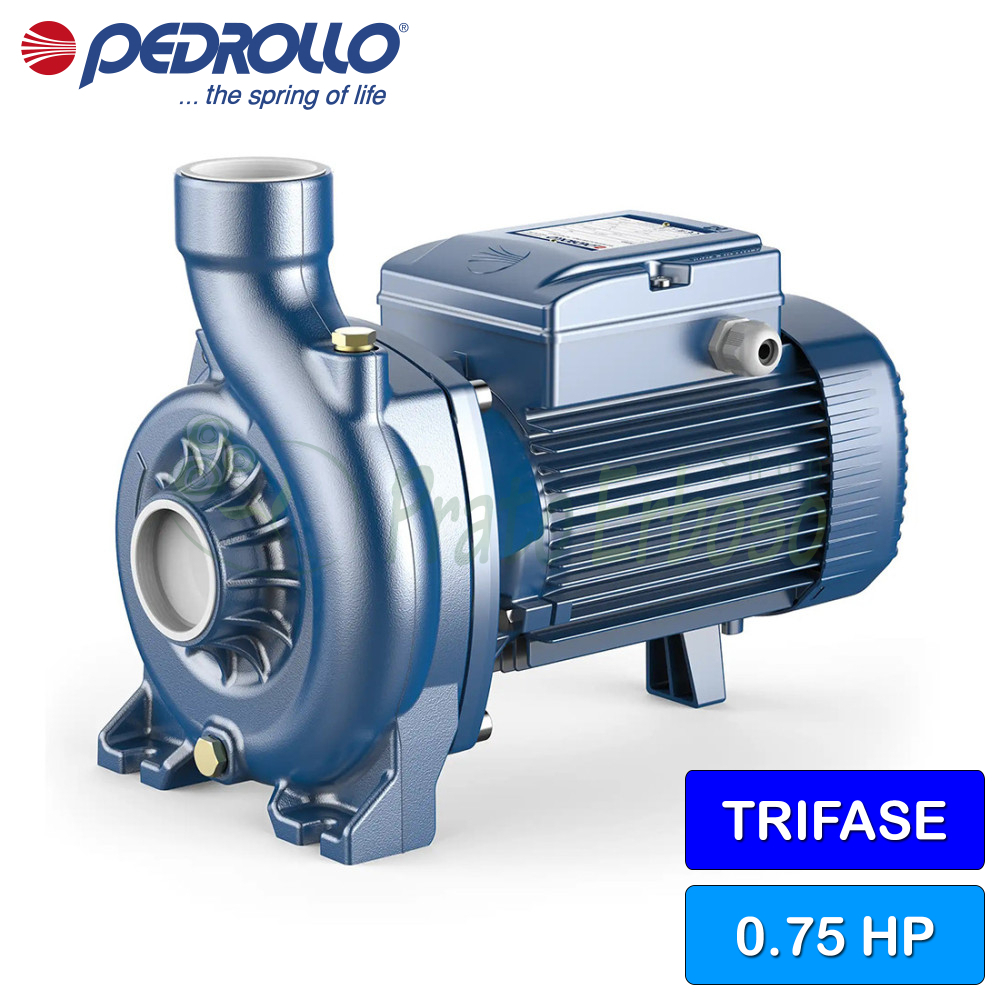

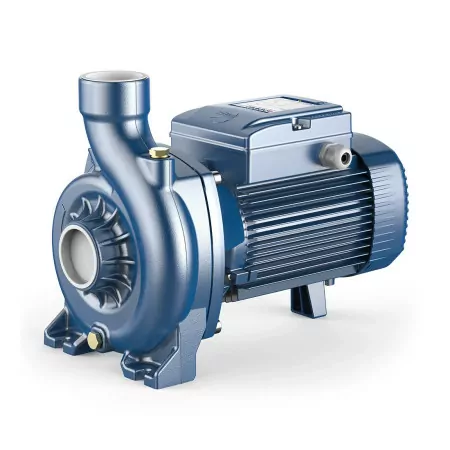

NGA 1B - 0.75 HP three-phase open impeller centrifugal electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The PEDROLLO pumps of the NGA line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.
The PEDROLLO NGA 1B has a flow rate ranging from 50 to 355 litres per minute with a head of 18 to 5 metres.
The open impeller design solution allows pumping fluids relatively full of impurities without the risk of clogging the impeller. For this feature, the NGA series pumps are used in industry, in the transfer of water from canals, rivers, tanks, basins, etc.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.3
- Absorption at 400V (A)
- 1.9
- Suction mouth
- 1 "1/2
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- AISI 316 stainless steel
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 300
- Min head (m.)
- 8
- Max head (m.)
- 18
- Employments
- water supply, washing systems
- Liquid temperature max. (° C)
- +90°C
- Motor voltage
- 400 V
- Height (cm)
- 22.7
- Width (cm)
- 29.7
- Depth (cm)
- 19
- Weight kg)
- 12.5
- Guarantee
- 2
NGA 1 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the NGA 1B-1A
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 14401 stainless steel (AISI 316) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
