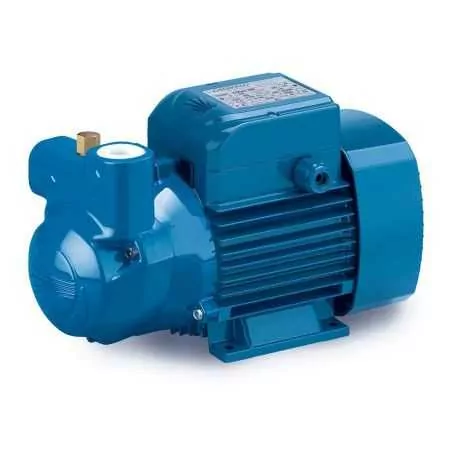

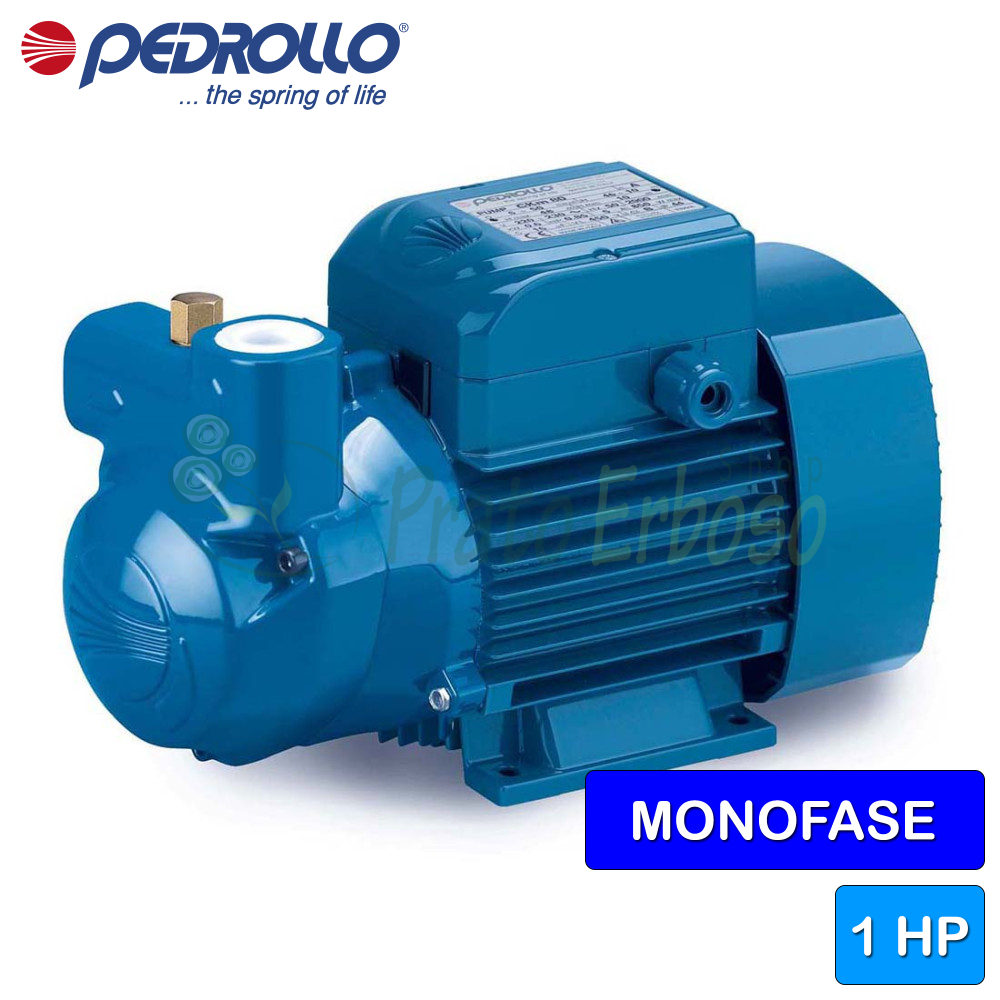

CKRm 90 - 1 HP single-phase self-priming liquid ring electric pump
Flow rate up to 50 l/min (3 m³/h). Head up to 60 m. Motor 0.75 Kw (1 HP).
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo electric pump from the CKRm 90 line is built with a double anti-blocking front seal and is recommended for pumping diesel or naphtha, clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Thanks to their specific operating principle, they are an easy solution in all cases where a compact self-priming pump is required or the liquid flow is poor or irregular or mixed with air.
Data sheet
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.7
- Suction mouth
- 1 "
- Delivery mouth
- 1 "
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Min. flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 7
- Max. head (m.)
- 60
- Motor voltage
- 230 V
- Height (cm)
- 17.9
- Width (cm)
- 13.4
- Depth (cm)
- 29.55
- Weight (Kg)
- 12
- Warranty (years)
- 2
CKR models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CKR series
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | AR-12V |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | Viton |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
