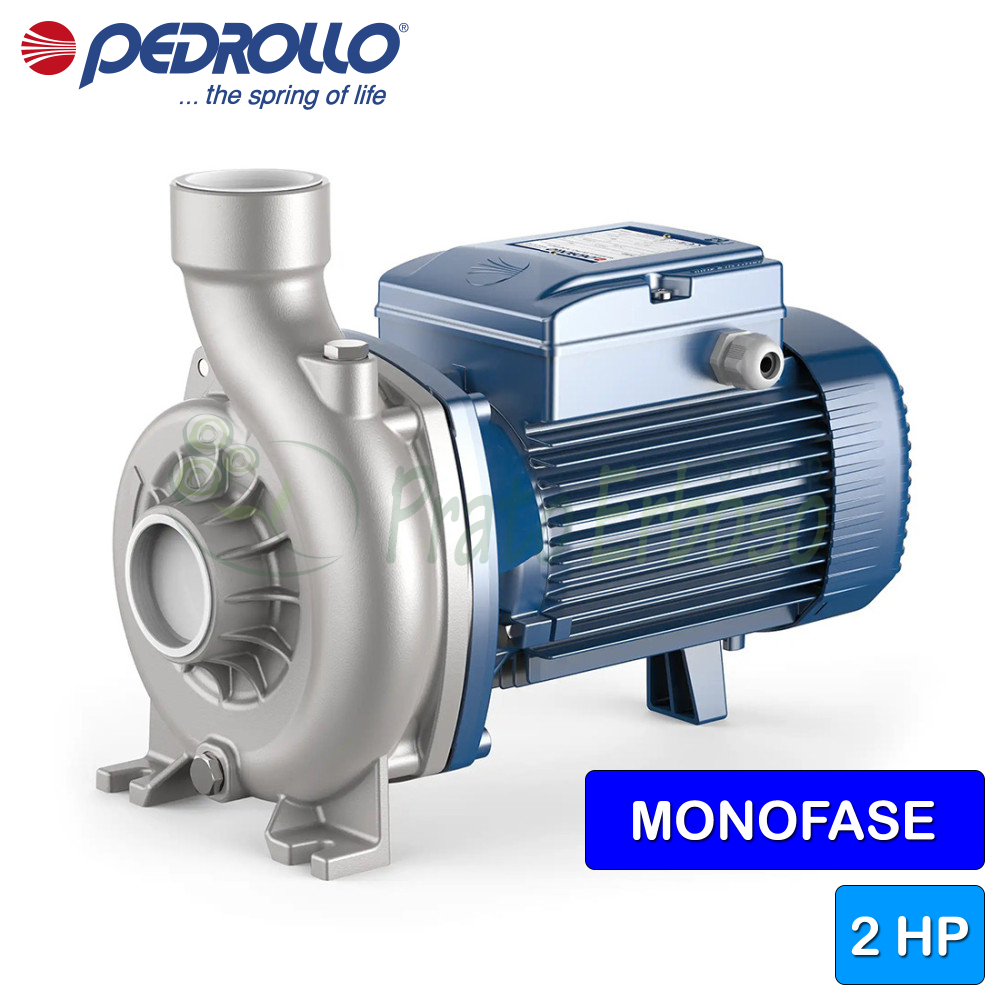

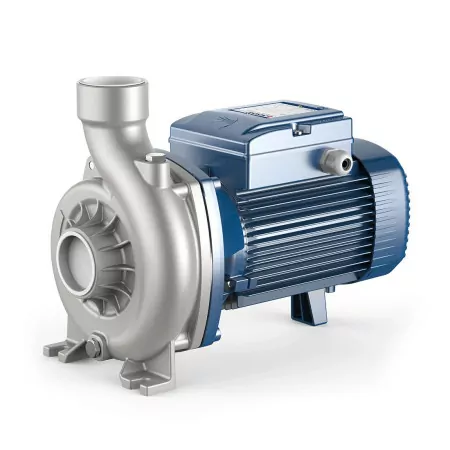

NGAm 3C-PRO - 2 HP single-phase open impeller electric pump
Flow rate up to 770 l/min (46.2 m³/h). Head up to 14.4 m. 1.5 Kw (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 30 June - Wednesday 1 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 30 June - Wednesday 1 July |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 3 July - Monday 6 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 30 June - Wednesday 1 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 30 June - Wednesday 1 July
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 3 July - Monday 6 July
The Pedrollo NGAm 3C-PRO centrifugal electric pump is recommended for pumping clean water and chemically non-aggressive liquids for components.
The main feature of this pump is its open impeller construction. This solution, developed by Pedrollo makes the NGAm 3C-PRO suitable for pumping less than completely clean liquids.
It can be used for tasks such as transferring from canals, rivers, tanks, and basins. The impeller allows the passage of solids up to 12 millimeters.
Pedrollo has built a solid and robust product. Made entirely of stainless steel, the pump is built to last.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- AISI 316L stainless steel
- Impeller
- AISI 316L stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 770
- Min. head (m.)
- 5.7
- Max. head (m.)
- 14.8
- Jobs
- water supply, cooling systems, washing systems, water treatment plants
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Weight (Kg)
- 21.9
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 V6 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | Viton |
Mat
| 1.0 - Pump Body | EN 14401 stainless steel (AISI 316) |
| 2.1 - Seal holder cover | EN 14401 stainless steel (AISI 316) |
| 3.0 - Impeller | EN 14401 stainless steel (AISI 316) |
| 4.0 - Pump shaft | EN 1.4404 stainless steel (AISI 316L) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 NGAm 3C-PRO - 2 HP single-phase open impeller electric pumpThis product Flow rate up to 770 l/min (46.2 m³/h). Head up to 14.4 m. 1.5 Kw (2 HP) motor. |  NGAm 3C - 2 HP single-phase centrifugal electric pump with open impeller Flow rate up to 770 l/min (46 m³/h). Head up to 14.8 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|
| Price | Price €1,376.16 -42% €798.17 | Price €742.98 -42% €430.93 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 2 | Power (HP) 2 |
| Capacitor | Capacitor -- | Capacitor 45 µF 450 VL |
| Suction mouth | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body AISI 316L stainless steel | Pump body Cast iron |
| Impeller | Impeller AISI 316L stainless steel | Impeller AISI 316 Stainless Steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 316 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 770 | Max. flow rate (l./min.) 770 |
| Min. head (m.) | Min. head (m.) 5.7 | Min. head (m.) 5.7 |
| Max. head (m.) | Max. head (m.) 14.8 | Max. head (m.) 14.8 |
| Jobs | Jobs water supply, cooling systems, washing systems, water treatment plants | Jobs water supply, washing systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V |
| Weight (Kg) | Weight (Kg) 21.9 | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
