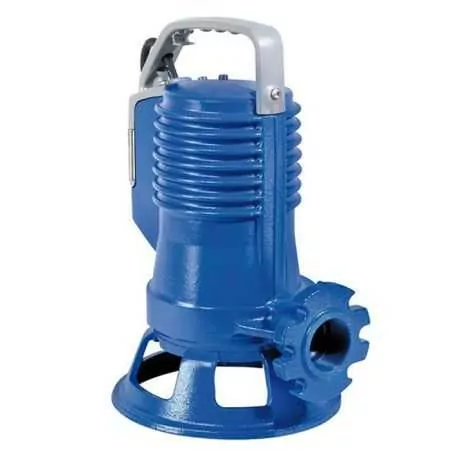

100/2/G40H A1CM - electric Pump, submersible chopper single phase
Flow rate up to 280 l/min (16.8 m3/h). Head up to 18 m. Motor 0.75 Kw (1 HP).
The series GR bluePRO is indicated in the presence of bodies of filamentous or fibrous, and in the general sewer waste source shall not grilled.
It is used where you require high performance or heavy-duty operation and extended within the home, and professional.
All the components are designed to allow a high degree of reliability and maintenance operations simple and quick.
Each model is subjected to a pressure test to ensure the perfect installation and operation of seals, cable gland and mechanical seals.
The structure of cast iron and the double mechanical seal in oil makes this pump rugged and reliable, and allow the use also heavy duty in lifting waste water grilled or offices, with solid bodies and fibres in domestic installations and in residential or small commercial systems.
- Motor connection
- Power (HP)
- Delivery mouth
- Pump body
- Impeller
- Crankshaft
- Check valve
- Degree of protection
- Max. flow rate (l./min.)
- 280
- Min. head (m.)
- 2.5
- Max. head (m.)
- 18
- Cable length (m.)
- 10 m with sc huko plug
- Weight (Kg)
- 19.0
- Warranty (years)
Handle
Ergonomic handle designed for optimal grip. Shape designed for housing a lifting shackle that allows the electric pump to remain stable during its handling. Float stroke adjustment system to modify the start-stop levels.
Cable gland
Innovative cable gland with anti-tear system and double O-ring to guarantee maximum tightness. Easy extraction to facilitate maintenance.
Capacitor
Single-phase models with integrated capacitor.
Carcass
The construction in EN-GJL-250 cast iron guarantees solidity and durability even in the case of maintenance interventions that require the extraction and insertion of the motor.
Pressure test
Engine compartment closing screw for pressure tests to which each model is subjected.
Mechanical and V-Ring seals
Two mechanical seals in silicon carbide (2Sic), both installed in the oil chamber. The V-Ring in direct contact with the liquid protects the mechanical seals from foreign bodies, preserving their correct functioning.
Reviews (1) - Review moderation
Azienda fantastica seria e molto professionale! Il sig.Davide attentissimo venditore è stato di una gentilezza e professionalita infinita. Consiglio a tutti di comprare da Prato Erboso
Already reported
Compare with Similar Products
100/2/G40H A1CM - electric Pump, submersible chopper single phaseThis product Flow rate up to 280 l/min (16.8 m3/h). Head up to 18 m. Motor 0.75 Kw (1 HP). |
150/2/G40H A1CM - electric Pump, submersible chopper single phaseFlow rate up to 300 l/min (18 m3/h). Head up to 21 m. Motor 1.1 Kw (1.5 HP). |
200/2/G40H A1CM - electric Pump, submersible chopper single phaseFlow rate up to 335 l/min (20.1 m3/h). Head up to 27 m. Motor 1.5 Kw (2 HP). |
|
|---|---|---|---|
| Price |
Price
€615.37
-5%
€584.60
|
Price
€716.87
-5%
€681.03
|
Price
€1,008.70
-5%
€958.26
|
| Motor connection | Motor connection -- | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (HP) | Power (HP) -- | Power (HP) 1.5 | Power (HP) 1.5 |
| Delivery mouth | Delivery mouth -- | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Pump body | Pump body -- | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller -- | Impeller Cast iron | Impeller Cast iron |
| Crankshaft | Crankshaft -- | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel |
| Check valve | Check valve -- | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) 60 | Minimum flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 280 | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 336 |
| Min. head (m.) | Min. head (m.) 2.5 | Min. head (m.) 3 | Min. head (m.) 9.3 |
| Max. head (m.) | Max. head (m.) 18 | Max. head (m.) 21 | Max. head (m.) 27 |
| Cable length (m.) | Cable length (m.) 10 m with sc huko plug | Cable length (m.) -- | Cable length (m.) 10 m with sc huko plug |
| Weight (Kg) | Weight (Kg) 19.0 | Weight (Kg) 24.0 | Weight (Kg) 25 |
| Warranty (years) | Warranty (years) -- | Warranty (years) 2 | Warranty (years) 2 |
