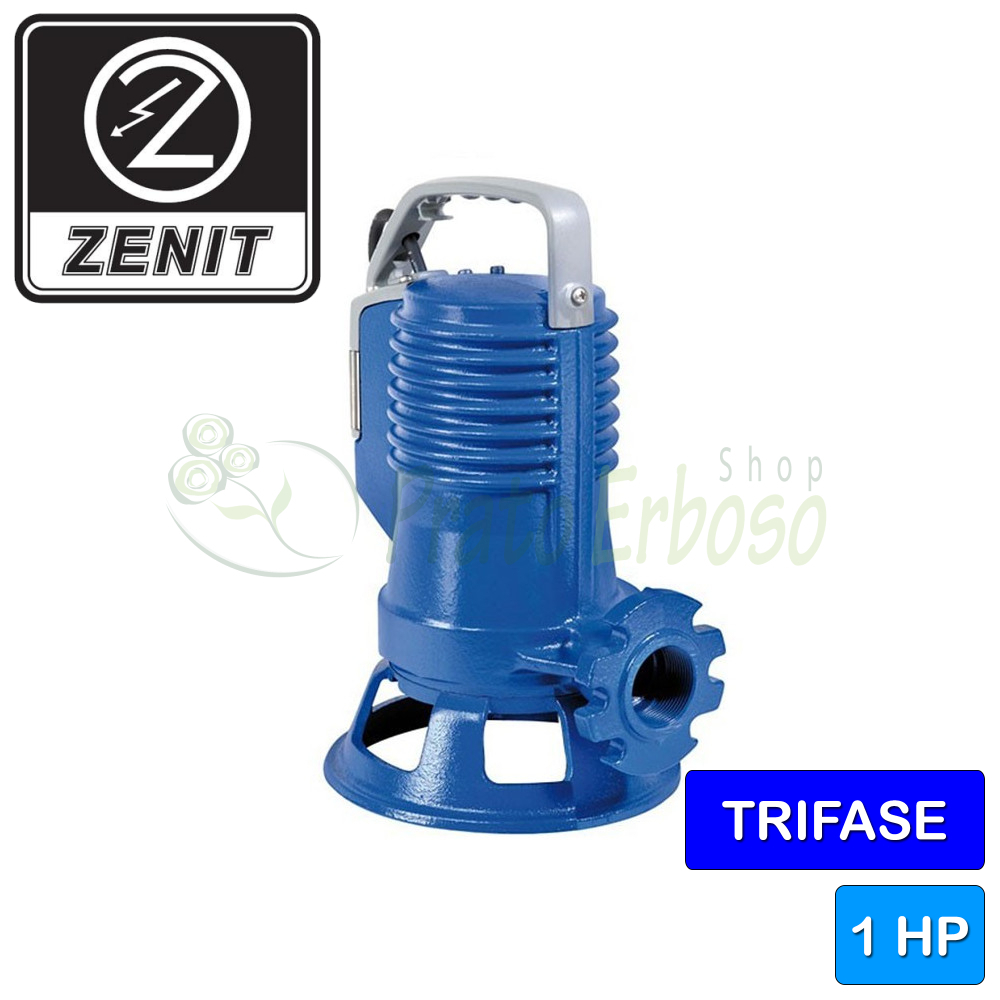

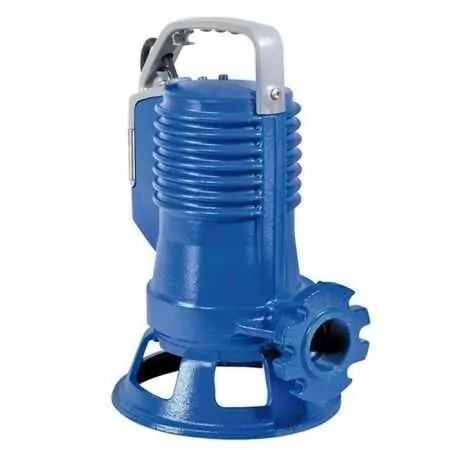

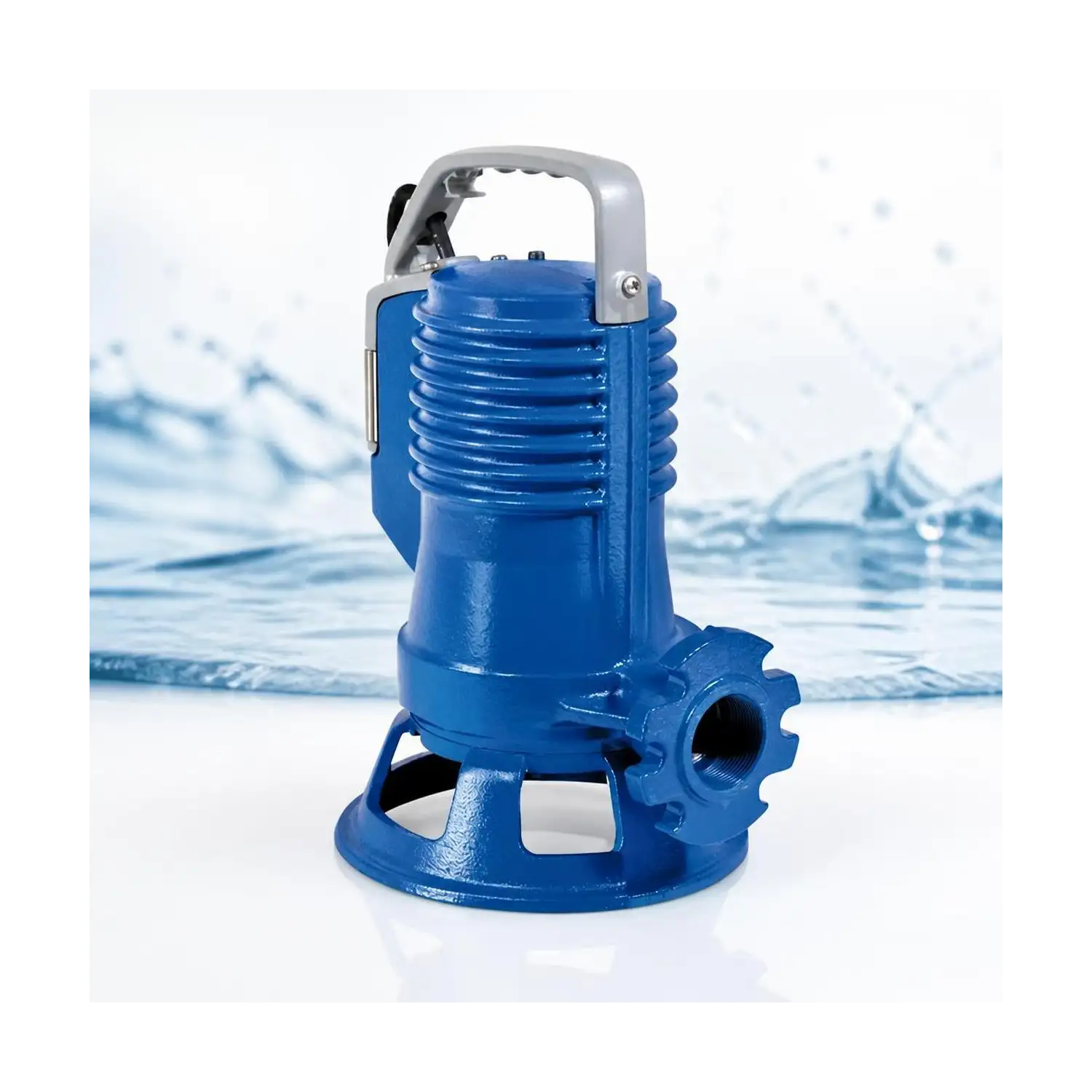

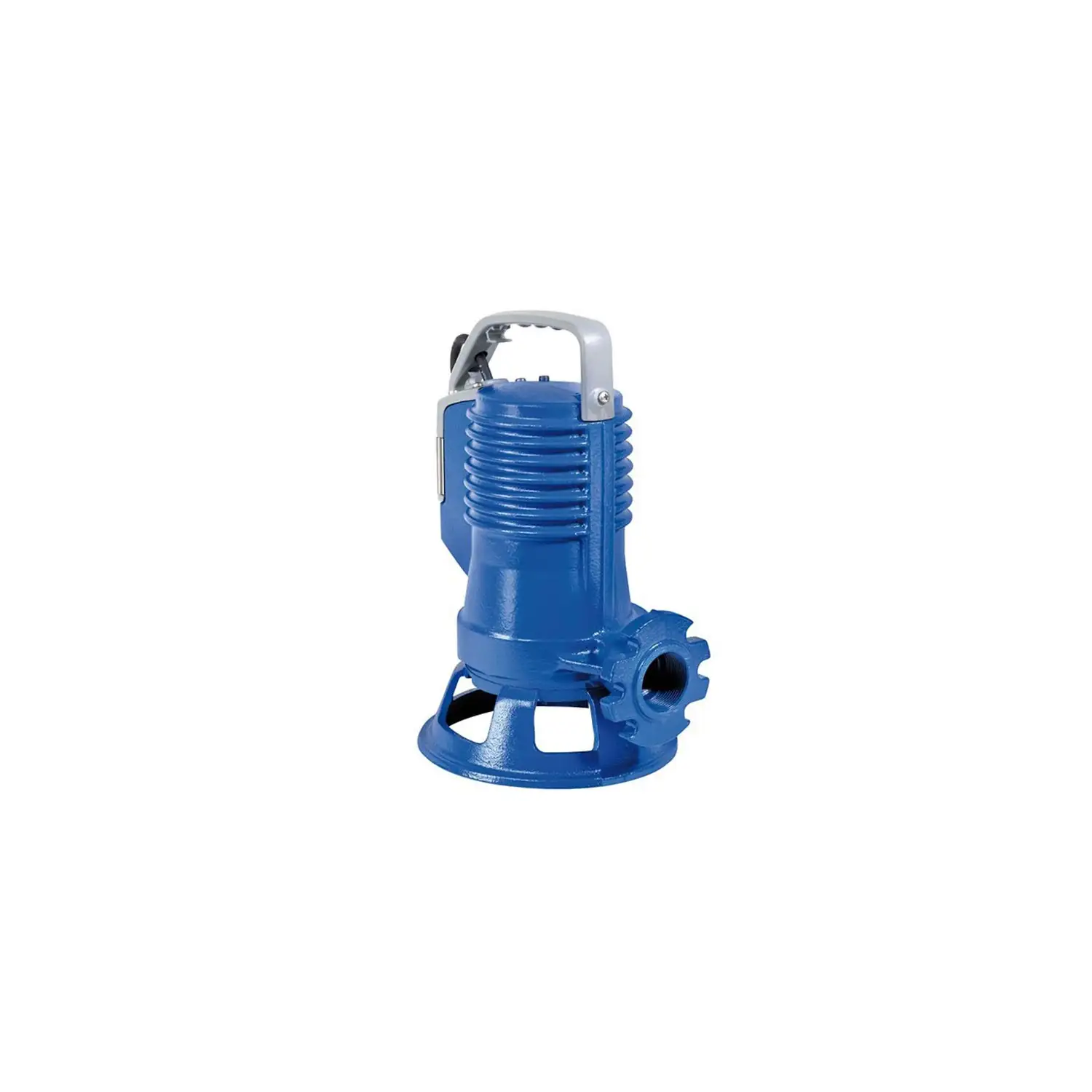

100/2/G40H A1CT - Three-phase electric shredder pump
Flow rate up to 280 l/min (16.8 m³/h). Head up to 18 m. 0.75 Kw (1 HP) motor.
The GR bluePRO 100/2/G40H A1CT series submersible shredding electric pump is indicated in the presence of filamentous or fibrous bodies and in general of non-screened civil sewage wastewater.
It is used where high performance or heavy and prolonged use is required in the domestic and professional environment.
All components are designed to allow high reliability and simple and quick maintenance operations.
Each model is subjected to a pressure test to guarantee perfect assembly and functioning of gaskets, cable glands and mechanical seals.
The cast iron structure and the double oil mechanical seal make this pump robust and reliable and allow even heavy-duty use in lifting screened or loaded waste water, with solid and filamentary bodies in domestic and residential installations or small civil systems.
- Motor connection
- THREE-PHASE
- Power (HP)
- 1
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Cast iron
- Motor shaft
- AISI 420 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 30
- Max flow (l./min.)
- 280
- Min head (m.)
- 2.5
- Max head (m.)
- 18
- Cable length (m)
- 5
- Weight kg)
- 19
- Guarantee
- 2
Handle
Ergonomic handle designed for optimal grip. Shape designed for housing a lifting shackle that allows the electric pump to remain stable during its handling. Float stroke adjustment system to modify the start-stop levels.
Cable gland
Innovative cable gland with anti-tear system and double O-ring to guarantee maximum tightness. Easy extraction to facilitate maintenance.
Capacitor
Single-phase models with integrated capacitor.
Carcass
The construction in EN-GJL-250 cast iron guarantees solidity and durability even in the case of maintenance interventions that require the extraction and insertion of the motor.
Pressure test
Engine compartment closing screw for pressure tests to which each model is subjected.
Mechanical and V-Ring seals
Two mechanical seals in silicon carbide (2Sic), both installed in the oil chamber. The V-Ring in direct contact with the liquid protects the mechanical seals from foreign bodies, preserving their correct functioning.
