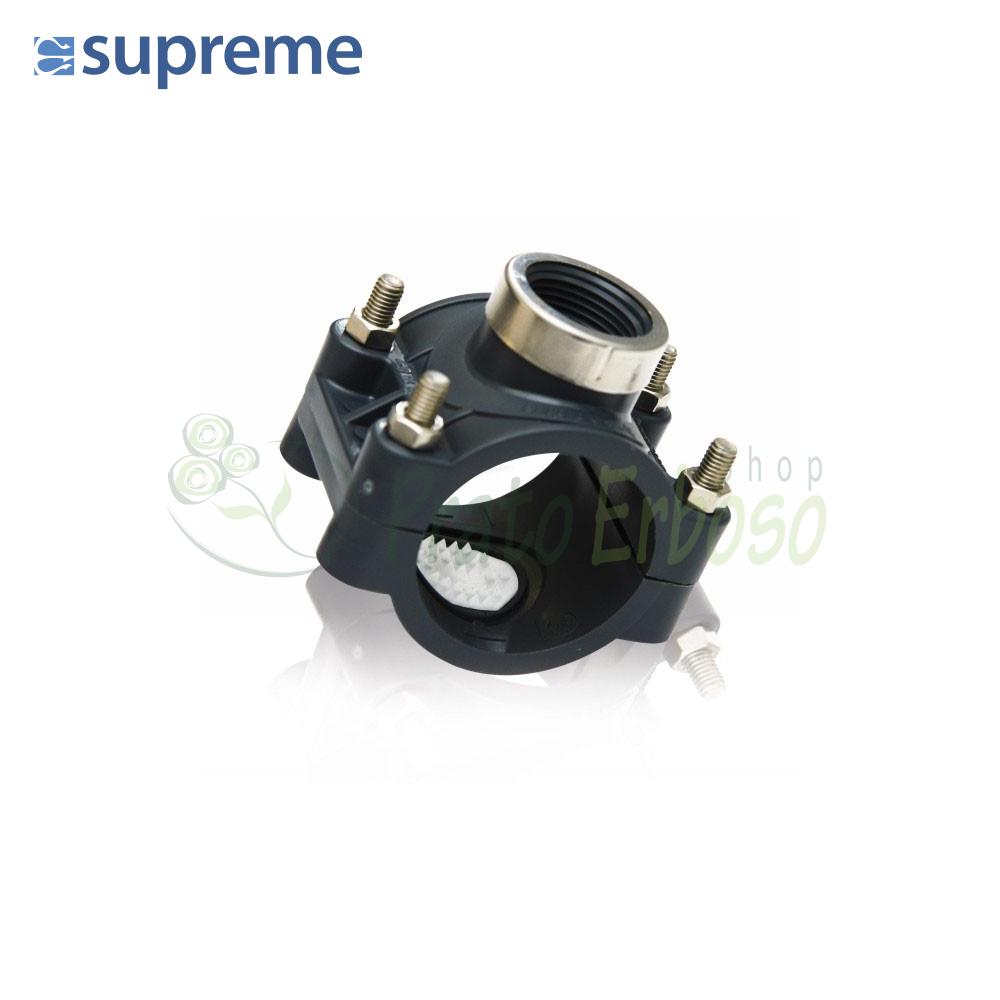

014802500B - PN 16 anti-rotation clamp socket with 25 x 1/2" galvanized screws
Diameter 25 mm. Thread 1/2 inch.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 23 July - Friday 24 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 23 July - Friday 24 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 23 July - Friday 24 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 23 July - Friday 24 July
The Supreme 014102500B clamp socket is ideal for making branches from the main pipe of the irrigation system.
It can be used to connect sprinklers to the pipe or for drip irrigation systems such as vegetable gardens or orchards, by connecting a compression fitting or a small valve.
The 014102500B clamp socket features an O-ring retention system. A sealing gasket holds the two parts together, preventing any water leaks.
This black bracket socket is made of PP-B copolymer polypropylene which makes it very resistant.
The galvanized bolts, which prevent rust, make the socket more resistant and allow it to last over time.
- Attack size
- 1/2 "
• Range: from d.25x1 / 2 "to 315x4"
• Nominal pressure: PN16 up to d.160x2 "; PN10 d.110x3 ", 125x3", 140x3 "and> 160x2".
• Material: Mat copolymer PP-B
• Color: Grey
• Stainless steel reinforcement ring: maximized height to increase resistance to pressure in the presence of bending moments and vibrations applied to the threaded branch
• Galvanized bolts
• NBR 70sh saddle gasket: maximized diameter for better containment of tube drilling; flat extension to ensure sealing even in the presence of unwanted over-pressures (water hammer)
• Screw locking system. • Seal retention system
• Octopus patented anti-rotation system: the innovative insert works effectively and durably against rotation and slippage of the bracket on the pipe, it is suitable for different PE 80-100 pipes without risk of damage.
• Reference standards: ISO13460 - AS / NZS4129 etc; threads according to EN10226 (ex ISO7 / 1)
• Main applications: qualified irrigation, water supply, fire prevention.
-
-
-
-
-
-
€3.62 tax incl.
