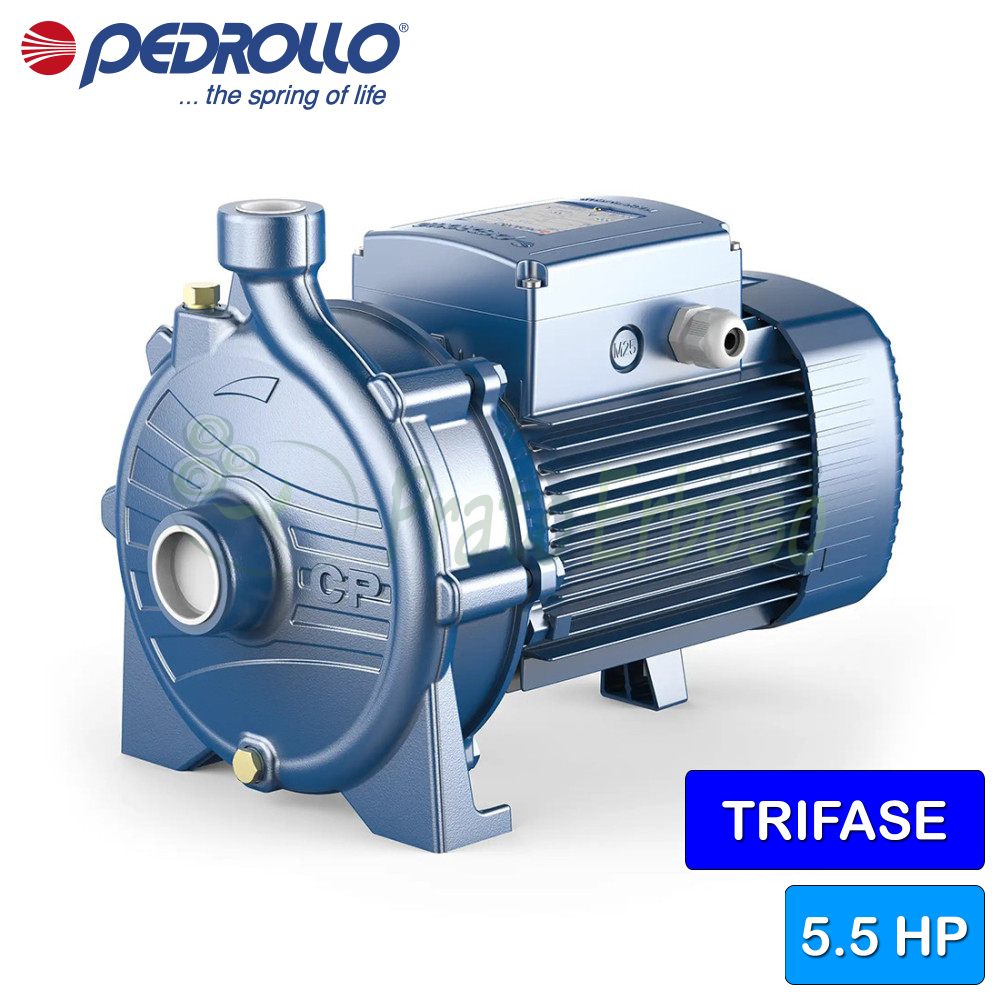

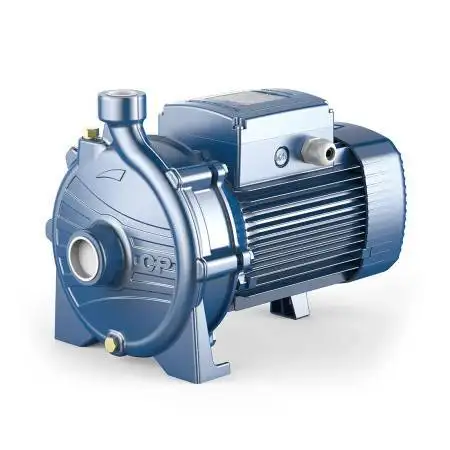

CP 210A - 5.5 HP three-phase centrifugal electric pump

Name: CP 210A - 5.5 HP three-phase centrifugal electric pump
Brand: Pedrollo
SKU: CP 210A
Price: 611.28 EUR
Availability: InStock

Flow rate up to 280 l/min (16.8 m³/h) Head up to 61 m 4 Kw (5.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The CP 210A electric pump from Pedrollo 's CP series is recommended for use in the civil sector due to its high reliability.

Pedrollo has created a simple product made of cast iron and stainless steel that lasts over time.

It can also be used in the agricultural and industrial sectors, but it must be installed indoors or protected from the elements.

The CP 210A is particularly recommended for water supply, air conditioning or cooling systems and irrigation.

The flow rate ranges from 50 to a maximum of 280 litres per minute and the range from 40 to 61 metres.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 4
Power (HP): 5.5
Absorption at 230V (A): 14.8
Current consumption at 400V (A): 8.5
Suction mouth: 1" 1/2
Delivery mouth: 1"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 280
Min. head (m.): 40
Max. head (m.): 61
Jobs: water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 30.5
Width (cm): 40.2
Depth (cm): 25.2
Weight (Kg): 31.2
Warranty (years): 2

Attachments

CP 11Kw data sheet

Models, performance curves and construction features of the Pedrollo pumps of the CP 11Kw series.

Download (976.67KB)

Models and performances CP 160-210

GUY

single phase

CP 160C

CP 160B

CP 160A

CP 210C

CP 210B

CP 210A

POWER
KW	HP
1.1	1.5
1.5	2
2.2	3
2.2	3
3	4
4	5.5

PERFORMANCE
Q litres/min	H meters
50 ÷ 200	32 ÷ 20
50 ÷ 220	37 ÷ 23
50 ÷ 240	43 ÷ 26
50 ÷ 250	46 ÷ 27
50 ÷ 270	54 ÷ 34
50 ÷ 280	61 ÷ 40

MOUTH
wait.	send.
1 1/2"	1"

Q	m³/hour	0	3	4.5	6	7.5	9	10.5	12	13.2	14.4	15	16.2	16.8
Q	l/min	0	50	75	100	125	150	175	200	220	240	250	270	280
H	meters	32	31	30.5	29.5	28	26	23	20
		37	36	35.5	34.5	33.5	31.5	29	26.5	23
		43	42	41.5	40.5	39.5	38	35.5	33	30	26
		46	45.5	44.5	43.5	42	40	37.5	34.5	32	28.5	27
		54	53	52	51	49.5	48	45.5	43	40	38.5	37	34
		61	61	60	59	57.5	56	53.5	51	49	46.5	45	42	40

Construction data of the CP 210C-210B-210A

Bearings

Pump side motor bearing	6206 ZZ - C3
Opposite side motor bearing	6205 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-24
LP diameter	24
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Cast iron GJL 200 EN 1561
