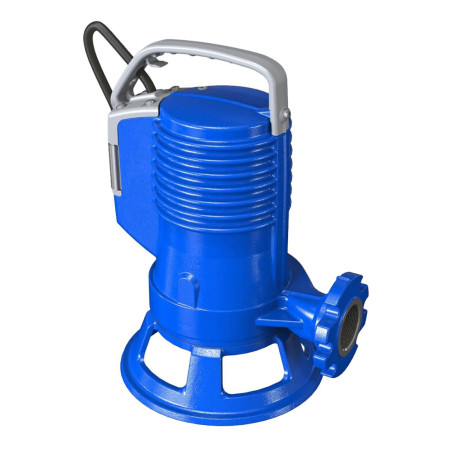

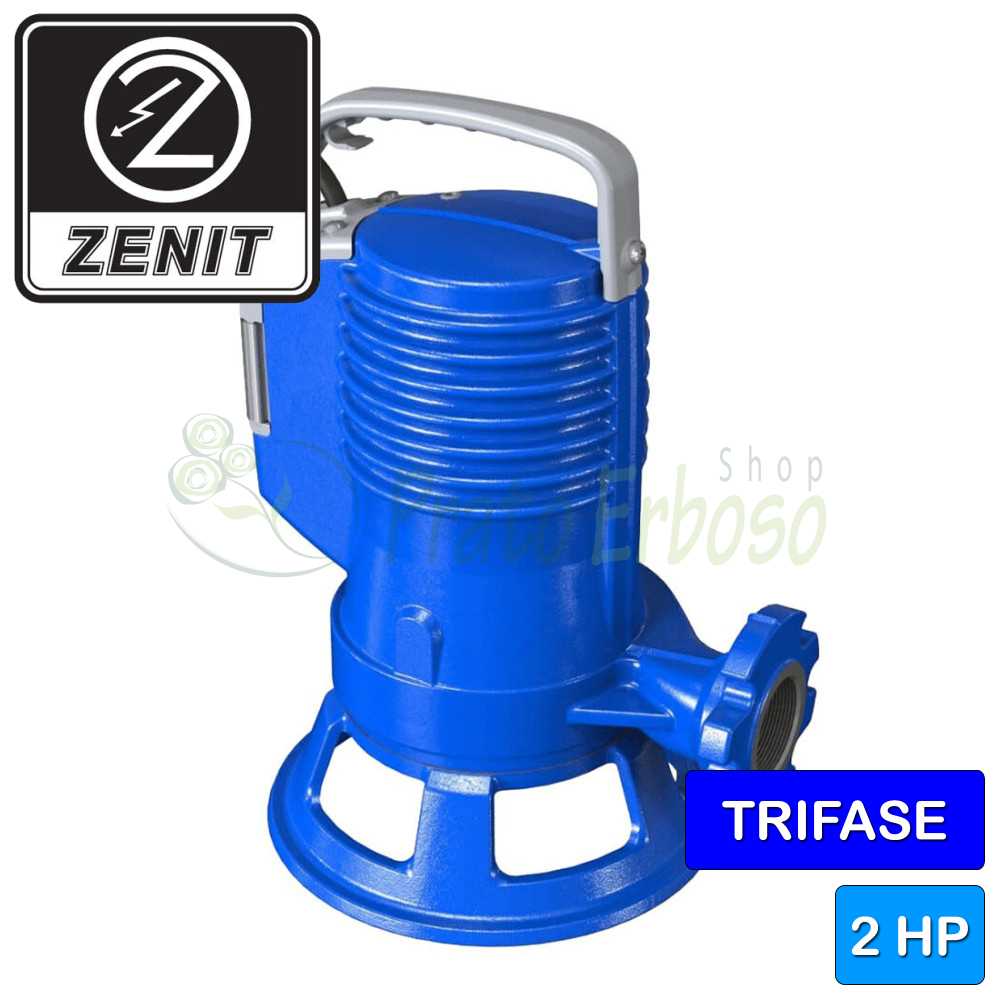

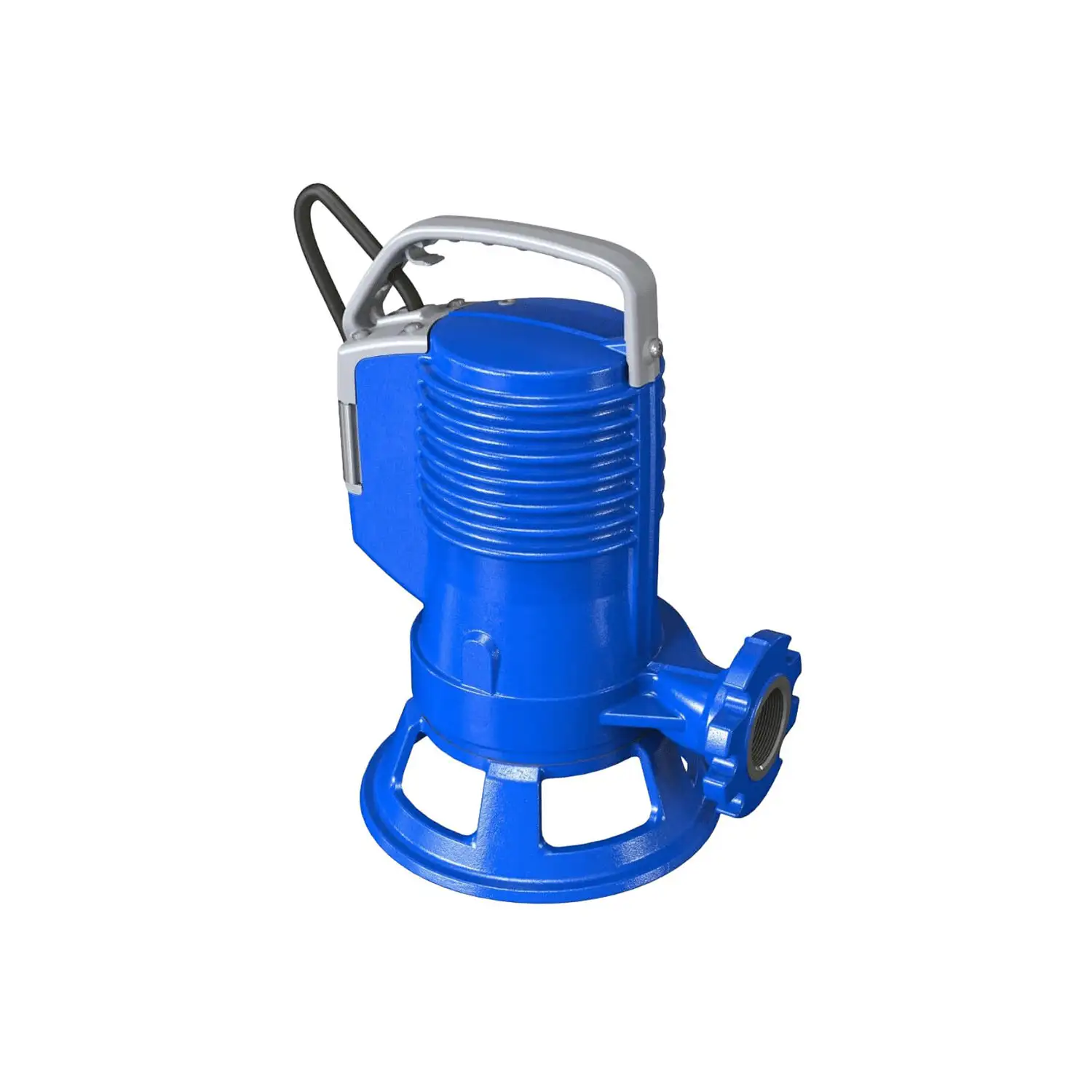

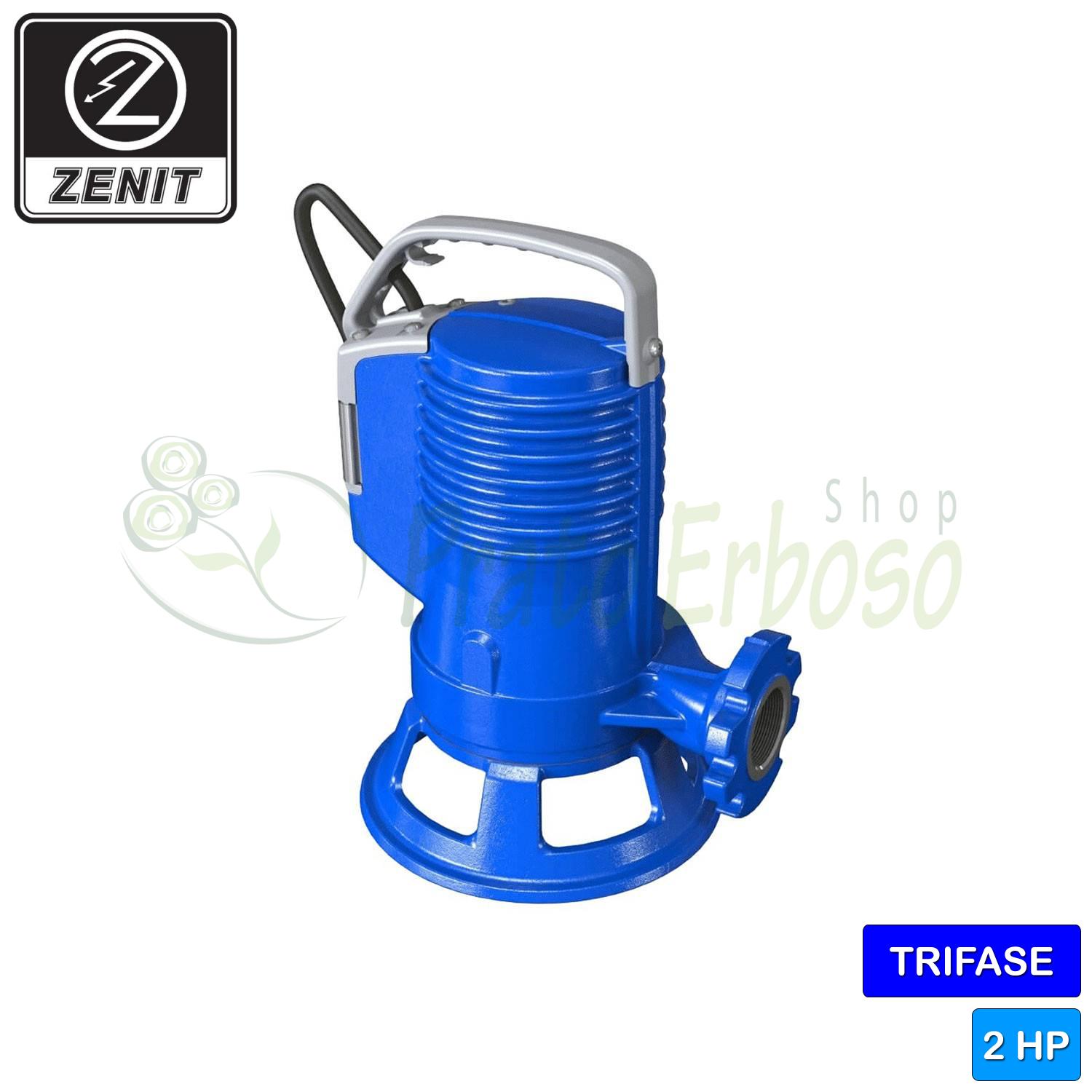

200/2/G50V A1CT5NCQNAE - 2 HP three-phase VORTEX electric pump for waste water
Flow rate up to 720 l/min (43.2 m³/h). Head up to 15.3 m. 1.5 Kw (2 HP) motor.
The 200/2/G50V A1CT5NCQNAE submersible electric pump from the DG bluePRO series by Zenit is reliable, robust and guarantees excellent performance.
Zenit has equipped this electric pump with a vortex impeller, making it suitable for filtering solids. This makes it ideal for use with contaminated biological fluids, sewage, rainwater, and seepage water. Recommended for domestic and professional use.
It has a maximum flow rate of 720 litres per minute and a maximum head of 15.3 metres.
The pump's construction is solid. Materials such as cast iron and steel make it resistant to even the most extreme working conditions.
It can be installed up to 20 meters below water level.
The cable supplied with the 200/2/G50V A1CT5NCQNAE is 5 metres long.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Cable length (m.)
- Jobs
- slightly dirty waters, water supply, drainage
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
